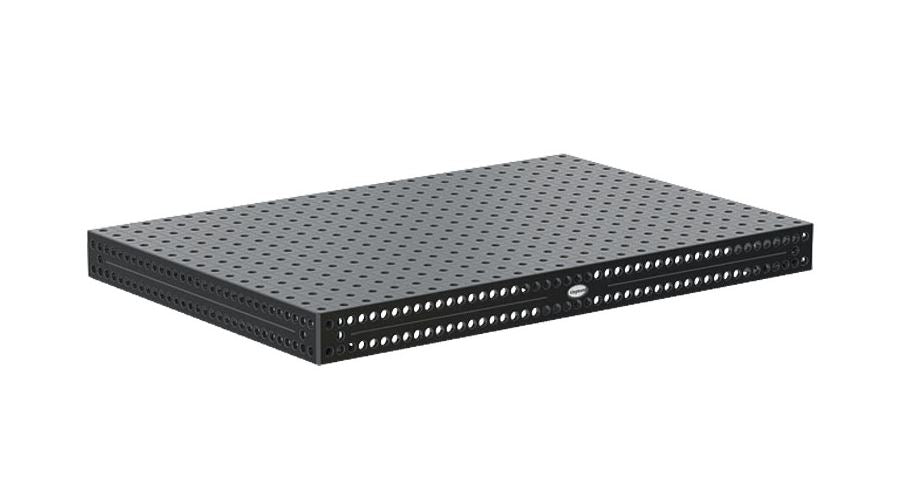

Siegmund System 16 Nitrided Tabletop, 47.2" x 31.5" Extreme 750 Series (S2-160025-X7)
All System 16 Professional Extreme tables now feature the latest upgrades in aesthetics, versatility, and durability. Their double hardened table is constructed from through-hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
MATERIAL THICKNESS:
approx. 11.5 - 13mm
VICKERS HARDNESS GRADE
Table Top: Surface hardness: approx. 750
Table side: Surface hardness: approx. 550
* The four side faces are still constructed from our standard, high quality S355J2 + N *St 52/3) Steel to provide the ideal balance of properties for performance, durability, and cost.
TABLE SURFACE
borehole spacing 50 mm
grid line spacing 50 mm
TABLE SIDE PANEL
100 mm high
additional boreholes enable parallel clamping in a 25 mm wide by 50 mm high grid
ELABORATE RADIUSES
3 mm radius of top table edge reduces damages to Siegmund accessories and customers components
6 mm radius on edges reduces risk of injury
SYSTEM BOREHOLD
16 mm
radius R2 for boreholes on the table surface for faster clamping
large chamfer on table underside or maximum clamping force of bolts
RIBBING
Maximum ribbbing on the underside for maximum stability and precision.
MATERIAL THICKNESS:
approx. 11.5 - 13mm
VICKERS HARDNESS GRADE
Table Top: Surface hardness: approx. 750
Table side: Surface hardness: approx. 550
* The four side faces are still constructed from our standard, high quality S355J2 + N *St 52/3) Steel to provide the ideal balance of properties for performance, durability, and cost.
TABLE SURFACE
borehole spacing 50 mm
grid line spacing 50 mm
TABLE SIDE PANEL
100 mm high
additional boreholes enable parallel clamping in a 25 mm wide by 50 mm high grid
ELABORATE RADIUSES
3 mm radius of top table edge reduces damages to Siegmund accessories and customers components
6 mm radius on edges reduces risk of injury
SYSTEM BOREHOLD
16 mm
radius R2 for boreholes on the table surface for faster clamping
large chamfer on table underside or maximum clamping force of bolts
RIBBING
Maximum ribbbing on the underside for maximum stability and precision.
| MPN: | S2-160025-X7 |
|---|
MPN: S2-160025-X7
