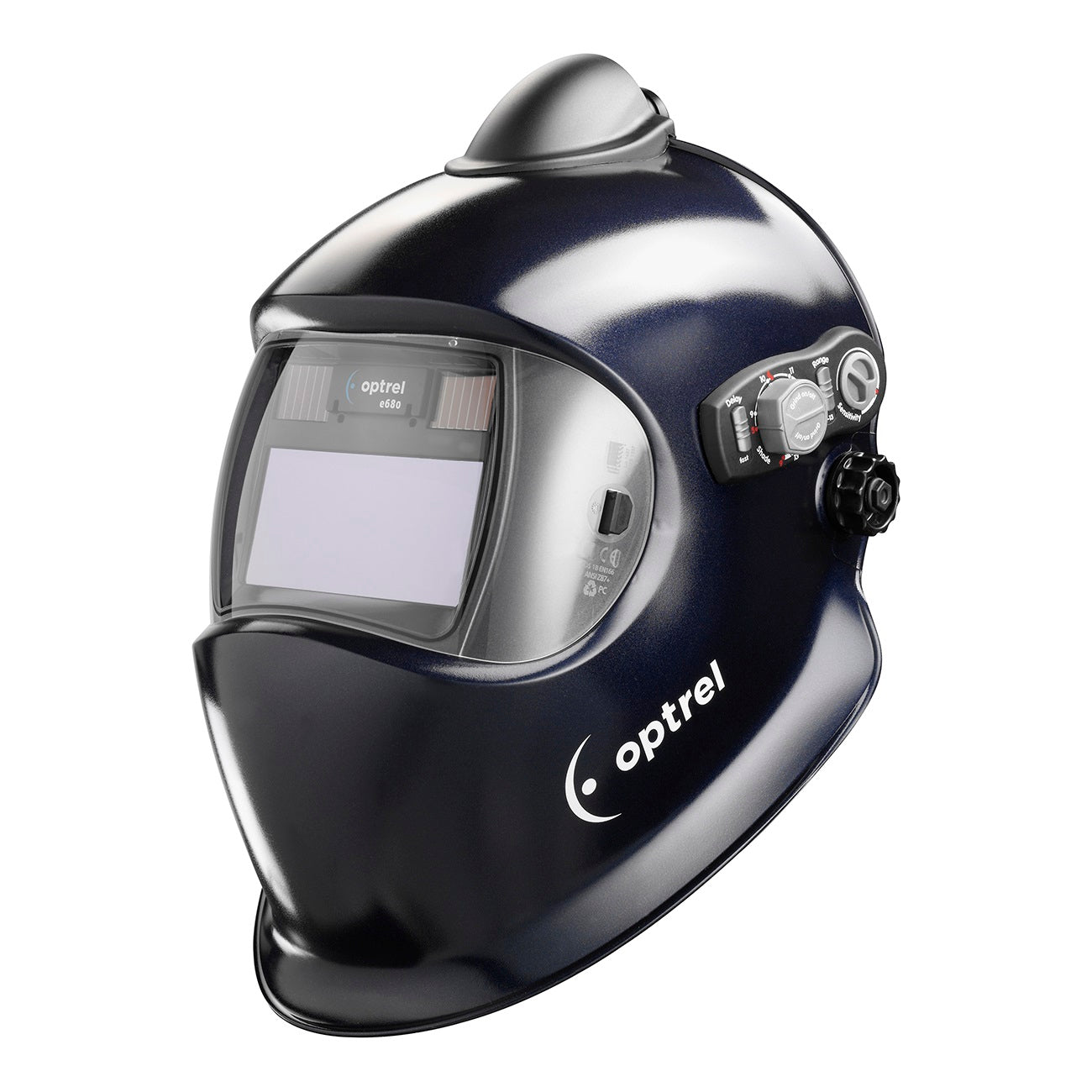

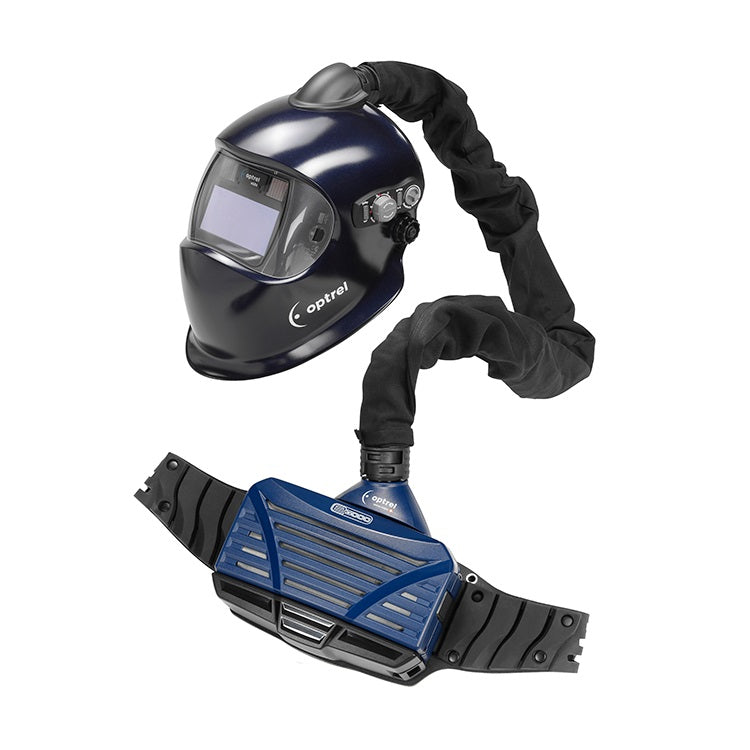

Optrel e3000 PAPR with e680 Helmet (4550.100)
The Optrel e3000 PAPR with e680 Helmet (4550.100) is Optrel's best selling helmet paired with their innovative HEPA class Th3 filter that blocks more than 99.8% of particulates for increased safety. The Optrel e3000 PAPR provides maximum protection against exposures to smoke, dust, and other particulates. It's lightweight design and easy to access buttons make wearing it a pleasure.
Respiratory Protection – The e3000’s innovative HEPA class Th3 filters blocks more than 99.8% of particulates for increased safety. Its face seal prevents welders from being exposed to smoke and other debris when working.
Two-Channel Air Distribution – Its unique internal design presents clean air to the mouth and nose, and to the forehead for cooling, improving overall comfort while reducing fatigue over time. Welders can adjust to three levels of air flow depending on environmental needs or personal comfort preferences (200 to 240 nl/min).
Ergonomically Designed – The e3000’s belt-based blower unit sits comfortably at the welder’s center of gravity, with easy access buttons to control the unit. Its hose connections on the helmet and blower swivel to ensure full range of movement, reducing the potential for tangling or snagging on surrounding structures.
Enhanced Productivity – Integrated flow sensors perform an automatic air flow check at start up, eliminating the need for welders to manually check their system each time of use. Plus, its rechargeable battery operates up to 12 hours continuously without replacement.
Audible Alarms – Audible and visible alarms alert welders of a missing or clogged filter, and when the battery is running low.
Maximum Protection – Provides maximum protection from exposures to smoke, dust, and other particulates, including Hexavalent chromium (CrVI).
NIOSH Certification – P100 (42 CFR 84)
Filter – HEPA Class Th3
Air Flow – 3 Levels (200 – 240 nl/min)
Battery – Li-Ion rechargeable (approx. 12 hours of continuous use per full-charge)
Respiratory Protection – The e3000’s innovative HEPA class Th3 filters blocks more than 99.8% of particulates for increased safety. Its face seal prevents welders from being exposed to smoke and other debris when working.
Two-Channel Air Distribution – Its unique internal design presents clean air to the mouth and nose, and to the forehead for cooling, improving overall comfort while reducing fatigue over time. Welders can adjust to three levels of air flow depending on environmental needs or personal comfort preferences (200 to 240 nl/min).
Ergonomically Designed – The e3000’s belt-based blower unit sits comfortably at the welder’s center of gravity, with easy access buttons to control the unit. Its hose connections on the helmet and blower swivel to ensure full range of movement, reducing the potential for tangling or snagging on surrounding structures.
Enhanced Productivity – Integrated flow sensors perform an automatic air flow check at start up, eliminating the need for welders to manually check their system each time of use. Plus, its rechargeable battery operates up to 12 hours continuously without replacement.
Audible Alarms – Audible and visible alarms alert welders of a missing or clogged filter, and when the battery is running low.
Maximum Protection – Provides maximum protection from exposures to smoke, dust, and other particulates, including Hexavalent chromium (CrVI).
NIOSH Certification – P100 (42 CFR 84)
Filter – HEPA Class Th3
Air Flow – 3 Levels (200 – 240 nl/min)
Battery – Li-Ion rechargeable (approx. 12 hours of continuous use per full-charge)
| MPN: | OPT4550.100 |
|---|---|
| UPC: | 640127614785 |
| Warranty | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: |
| Delay Control | Switching time light to dark 0.170 ms at room temperature, 0.110 ms at 55 °C Switching time dark to light 0.1 – 2.0 s with patented twilight function |
| Digital | maximum UV- & IR-protection on all shade levels |
| Grind Mode | Optical Class: 1 Stray Light Class: 1 Homogeneity Class: 1 Angle Dependency Class: 1 |
| Modes | solar cells and 2 batteries, exchangeable |
| Reaction Time | Switching time light to dark 0.170 ms at room temperature, 0.110 ms at 55 °C Switching time dark to light 0.1 – 2.0 s with patented twilight function |
| Sensitivity Control | maximum UV- & IR-protection on all shade levels |
| Viewing Field | 90 x 110 x 7 mm / 50 x 100 mm |
MPN: OPT4550.100
UPC: 640127614785
