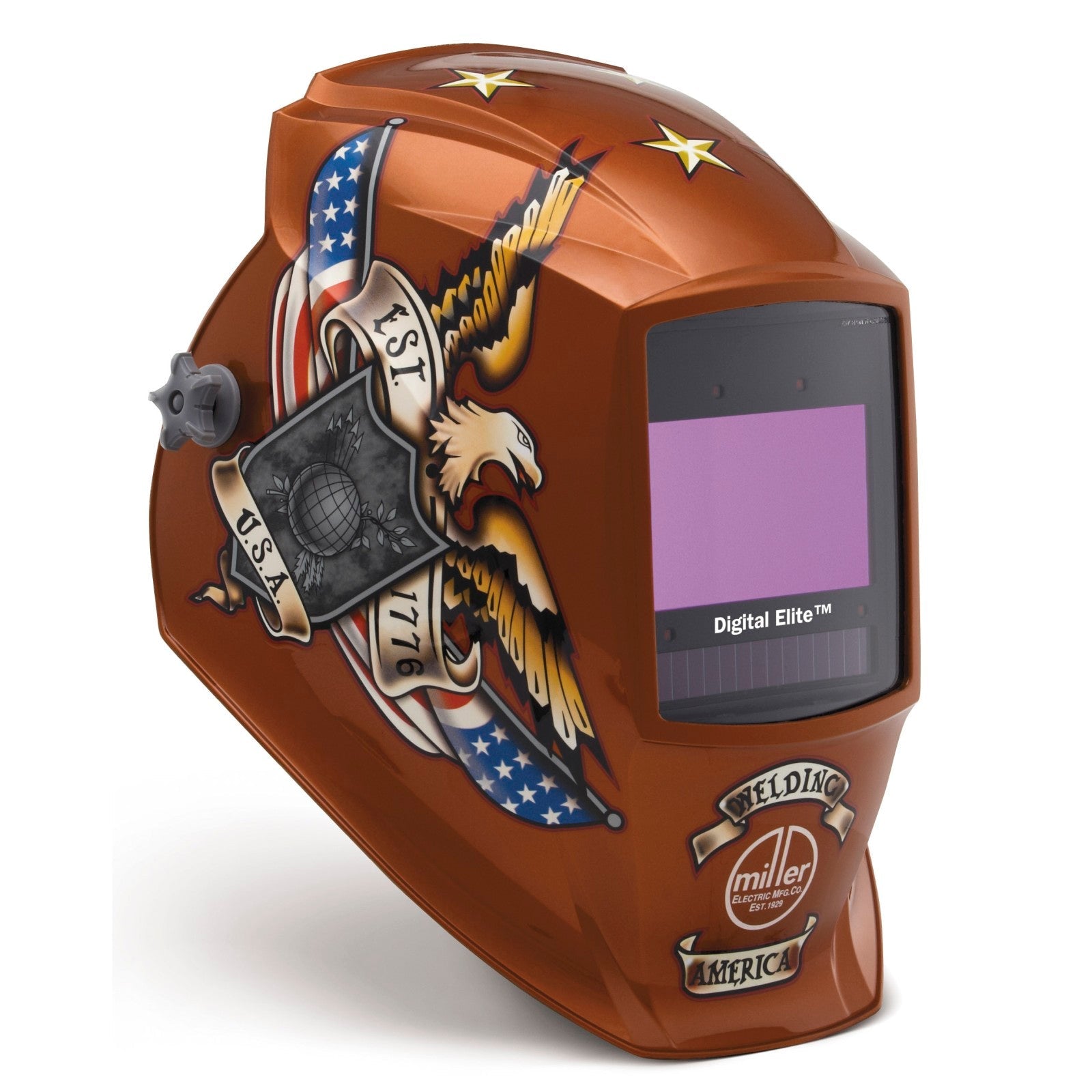

Miller Vintage USA Digital Elite Auto Darkening Welding Helmet (257215)
The Miller Digital Elite Series Helmet is the professional's choice for the ultimate Welding Helmet offering four modes of digital versatility for most welding and cutting applications. Improved digital controls allow you to easily adjust the mode and settings. The redesigned headgear offers additional adjustability settings for better fit and comfort. A large 9.22 sq. in. viewing area has four arc sensors for superior lens response.

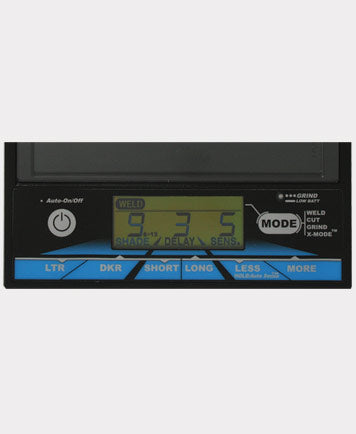

• NEW Digital Controls allow user to easily adjust mode and settings
• NEW Redesigned headgear features additional adjustability settings for better fit & comfort
• NEW 3 Year Warranty
• NEW, Now with Grind AND Cut mode
• 9.22 sq. in. viewing area
• Four Arc Sensors for superior lens response
• Four Operating Modes – Weld, Cut, Grind and X-Mode
• Auto-On/Off power control triggers lens at the strike of an arc
• Viewing Area – 9.22 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)
• Four Arc Sensors – 1/ 20,000 sec. lens speed
• Four Operating Modes; Weld Mode(#8-13), Cut Mode(#5-8), Grind Mode(Light State #3.5), X-Mode(can be used in Shades #8-13)
• X-Mode: Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds
• Sensitivity and Delay Control - .10 – 1.0 sec
• TIG Rating - 5 Amps and below
• Lithium batteries (2) – with solar assist; up to 3,000 hours
• Weight - 18 oz (482g)
• Meets ANSI Z87.-2003 (High Impact) standard
Included:
• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag
• NEW Digital Controls allow user to easily adjust mode and settings
• NEW Redesigned headgear features additional adjustability settings for better fit & comfort
• NEW 3 Year Warranty
• NEW, Now with Grind AND Cut mode
• 9.22 sq. in. viewing area
• Four Arc Sensors for superior lens response
• Four Operating Modes – Weld, Cut, Grind and X-Mode
• Auto-On/Off power control triggers lens at the strike of an arc
• Viewing Area – 9.22 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)
• Four Arc Sensors – 1/ 20,000 sec. lens speed
• Four Operating Modes; Weld Mode(#8-13), Cut Mode(#5-8), Grind Mode(Light State #3.5), X-Mode(can be used in Shades #8-13)
• X-Mode: Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds
• Sensitivity and Delay Control - .10 – 1.0 sec
• TIG Rating - 5 Amps and below
• Lithium batteries (2) – with solar assist; up to 3,000 hours
• Weight - 18 oz (482g)
• Meets ANSI Z87.-2003 (High Impact) standard
Included:
• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag
| MPN: | MIP257215 |
|---|---|
| UPC: | 715959584005 |
MPN: MIP257215
UPC: 715959584005
