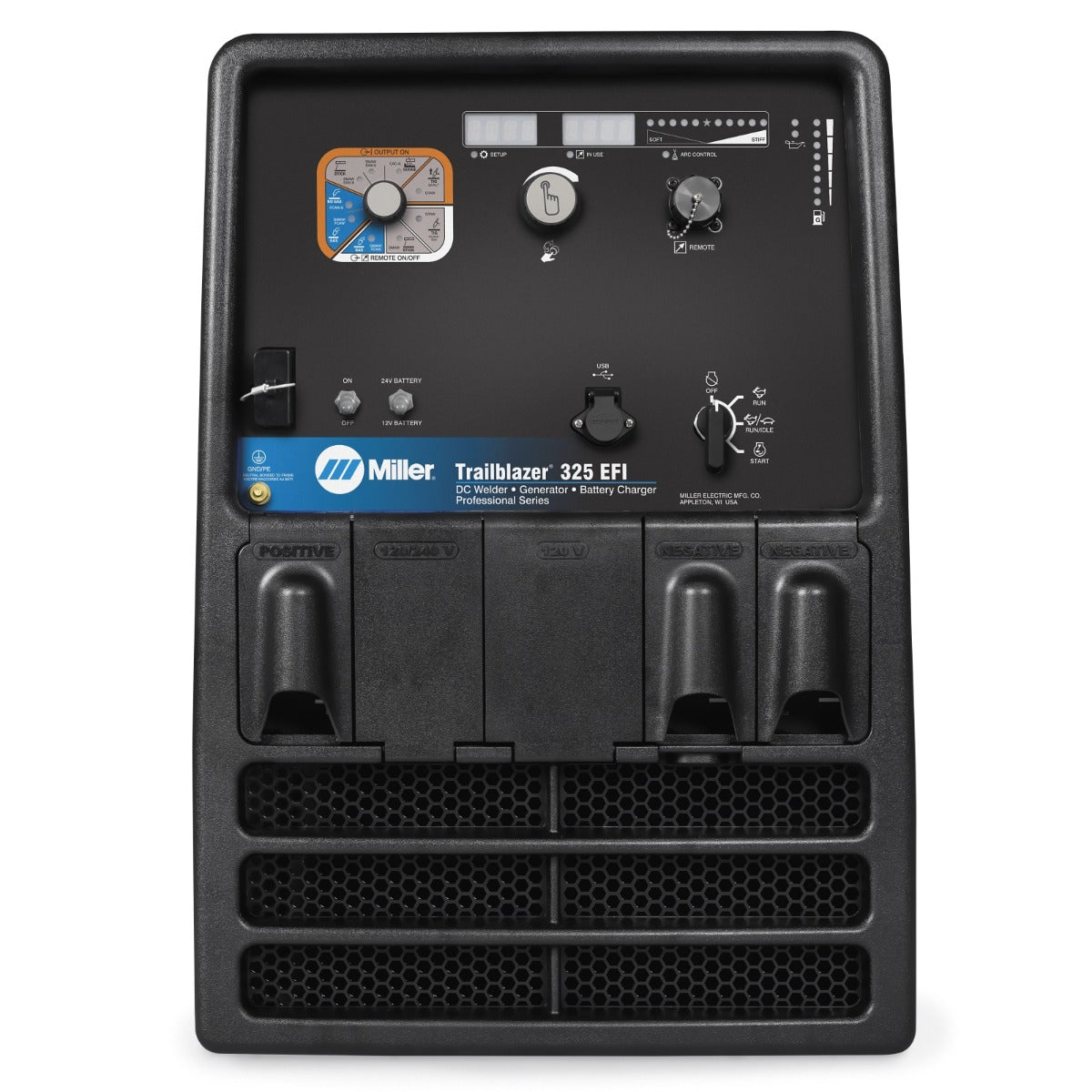

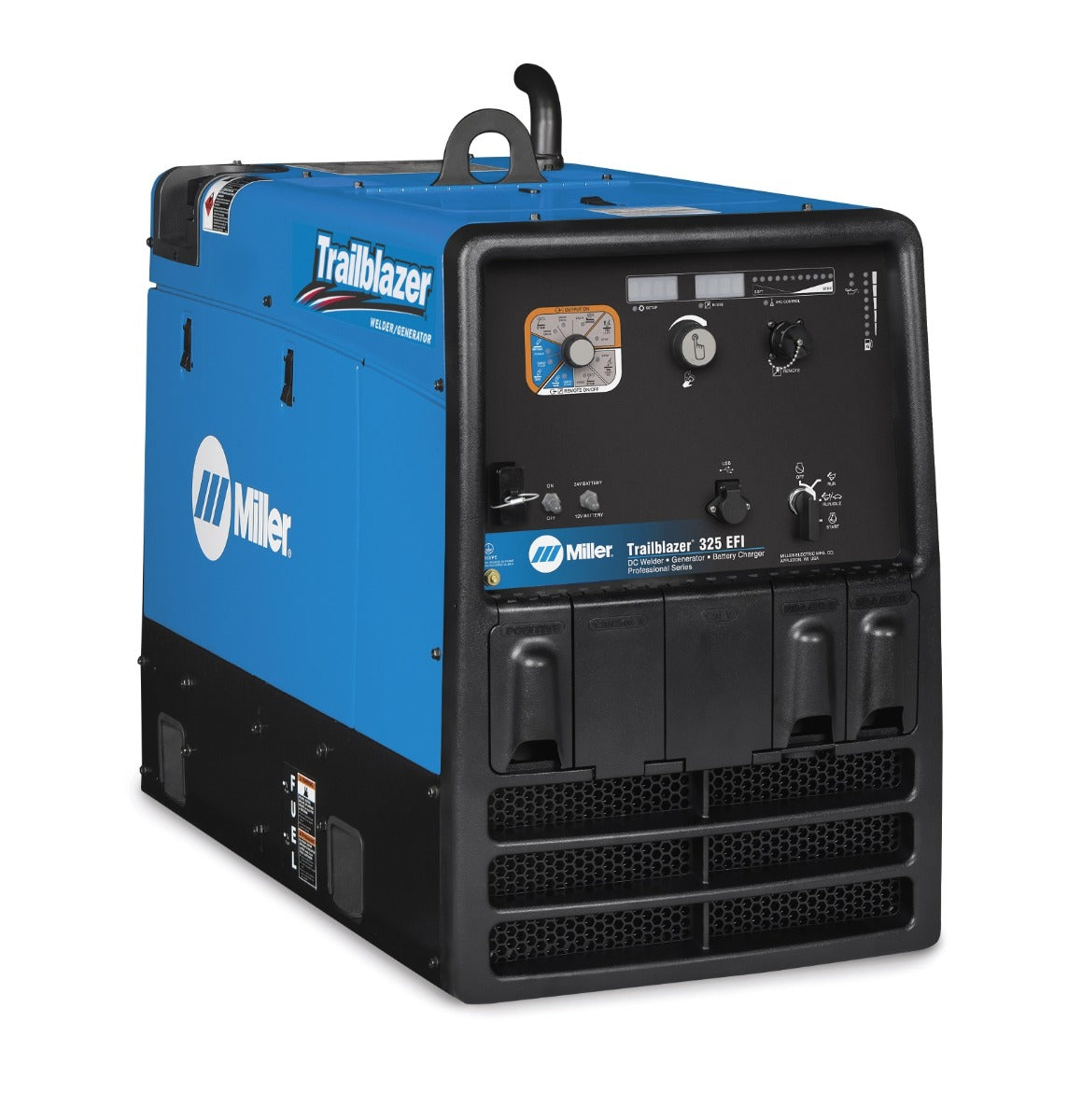

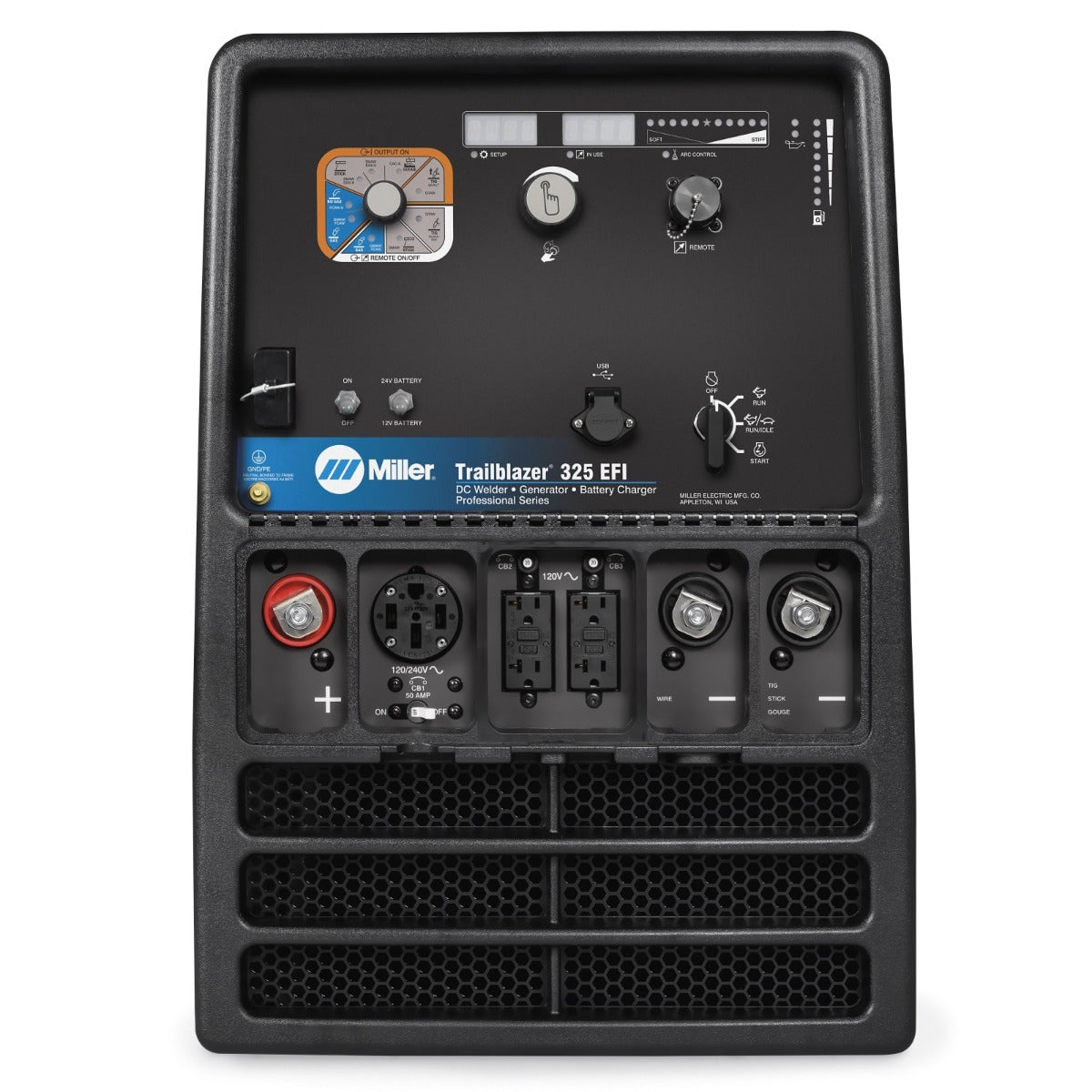

Miller Trailblazer 325 EFI Welder/Generator with Excel Power, Battery Charge/Jump Start (907798004)

This Trailblazer is discontinued.  The suggested replacement is the Trailblazer 330 (907832003).

The Miller Trailblazer 325 EFI Kohler Welder/Generator with Excel Power & Battery Charge/Jump Start offers innovative technology designed for the professional welder. Unbeatable arc performance, the smoothest, most stable arc in the industry and an independent welder and generator power system make the Trailblazer an excellent choice for heavy industrial applications.

Auto-Speed technology
Standard on all models. Automatically adjusts the engine speed to run at lower speeds depending on the total power needed. Need more power? The engine will automatically ramp up. Change processes to something requiring less power, and the Trailblazer will automatically slow the engine down.

Quieter and Better Sound
Significant improvements in sound level and quality offer better jobsite communication, which provides a safer, more efficient working environment for you and your crew. New Bobcat welder/generators have rotated the engine toward the front to create more efficient airflow, resulting in significantly quieter operation. Now you can start your job earlier in the day and end it later, as well as work around hospitals, businesses, and residential areas.

Smaller and Lighter Design
New Bobcat welder/generators take up less space on trucks and trailers—leaving more room on your truck for other equipment and tools. Plus, they’re easier to move safely around jobsites—even with weld cables and running gear attached.

Innovative Packaging Design
Reversed generator airflow is an exclusive engine and generator packaging helps your equipment operate cooler and more efficiently. The engine is rotated toward the front to create more efficient airflow — reducing the size and sound output.

Cleaner and Stronger Generator Power
Smart-Cor technology in the new Trailblazer includes a newly designed 10-degree skewed rotor and Wave Filter technology for a new level of clean generator power. The independent welder/generator power system means no interaction between jobsite tools and the welding arc.

Electronic Fuel Injection
Significantly enhances fuel savings and extends runtimes by optimizing the air/fuel ratio for all engine speeds and loads. When you add EFI to your Trailblazer, your machine will run at peak fuel efficiency, regardless of how you’re using it.

Excel Power
Traditional welder/generators run at 3600 RPM when generator loads are applied. Adding Excel power to your Trailblazer allows you to plug in most jobsite tools while continuing at idle speed (2400 RPM) — doing the same job while burning less fuel. When combined with Auto-Speed™ technology, Excel power allows you to weld and run tools while remaining at idle speed.

Unbeatable Arc Performance
Miller's engineered the new Trailblazer to provide high-quality welds across a variety of applications— knowing quality welds begin with a quality arc. That’s why we’ve significantly improved the performance for all welding processes and made it easy to fine-tune the arc to match your personal preferences and welding style.
• Three Stick modes for optimized arc performance — XX18, XX10 and Gouge
• Two Wire modes for simplified setup — Solid and Flux-Core
• Three TIG modes for optimized arc performance — Auto-Stop, Auto-Crater and Pulse
• NEW! TIG Pulse mode available for out-of-position welding, thin metals and stainless steel where a lower amount of heat is desired while welding
• Infinite arc control available in the Stick and Solid Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications

MPN: MIL907798004

UPC: 715959678445

Download Product Spec Sheet
