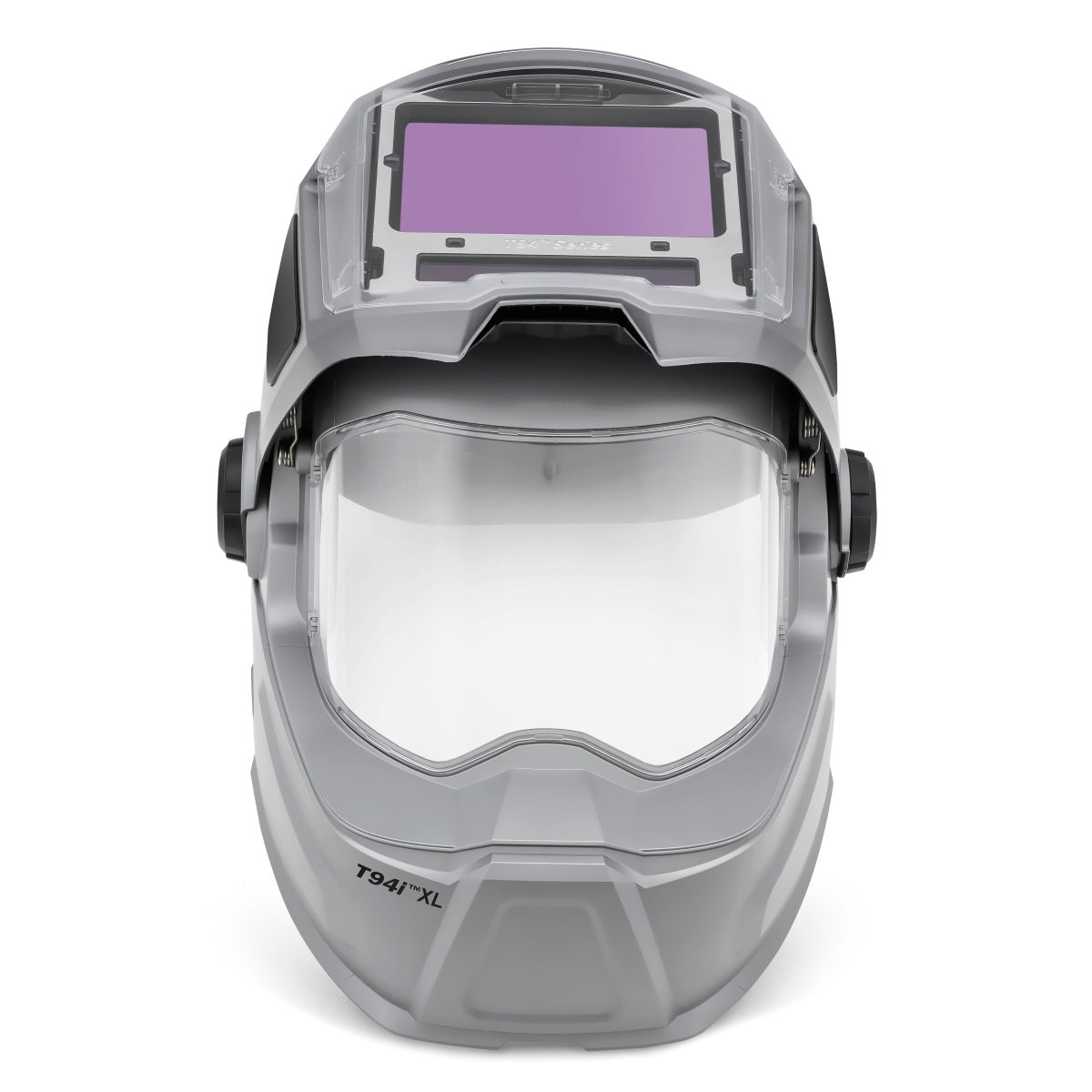

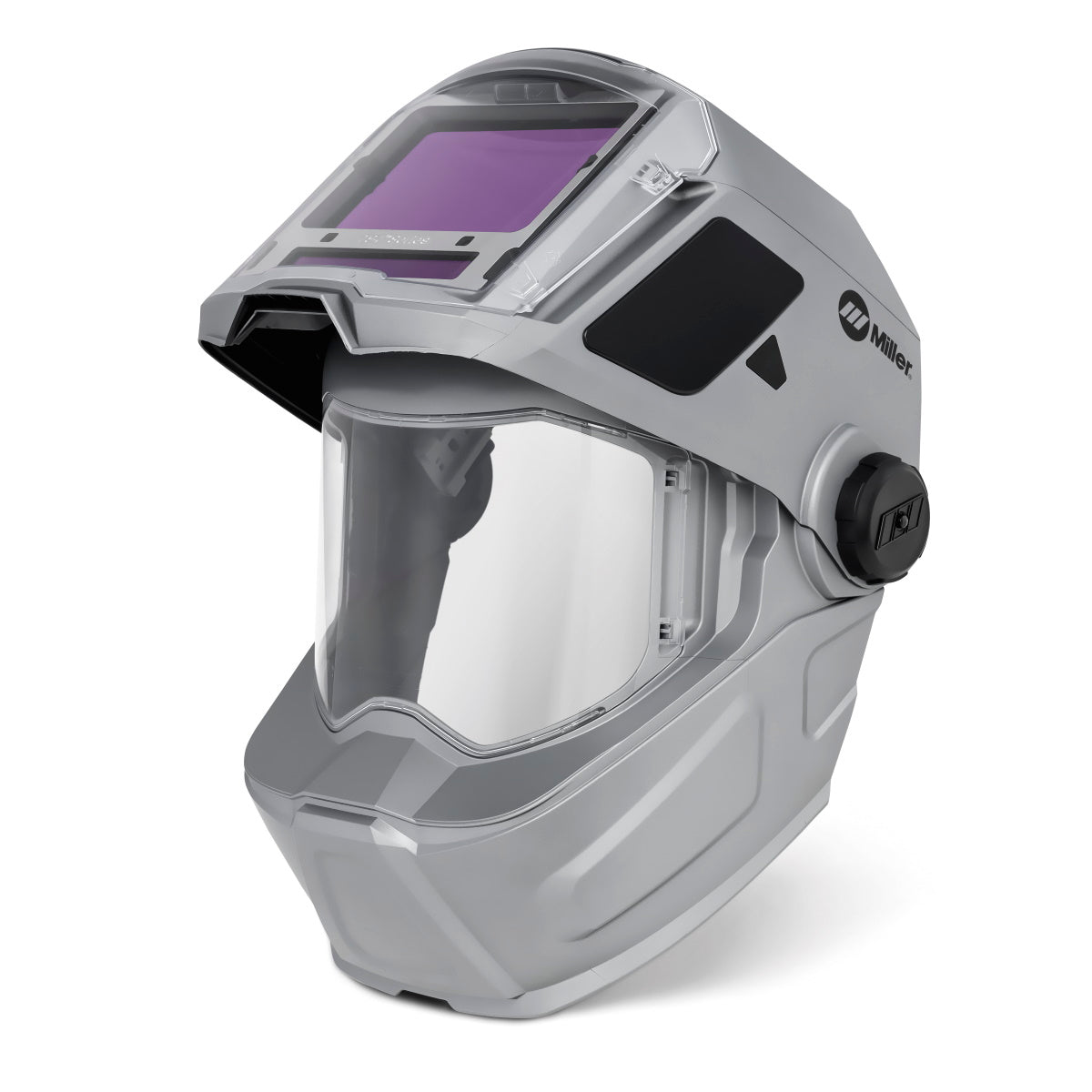

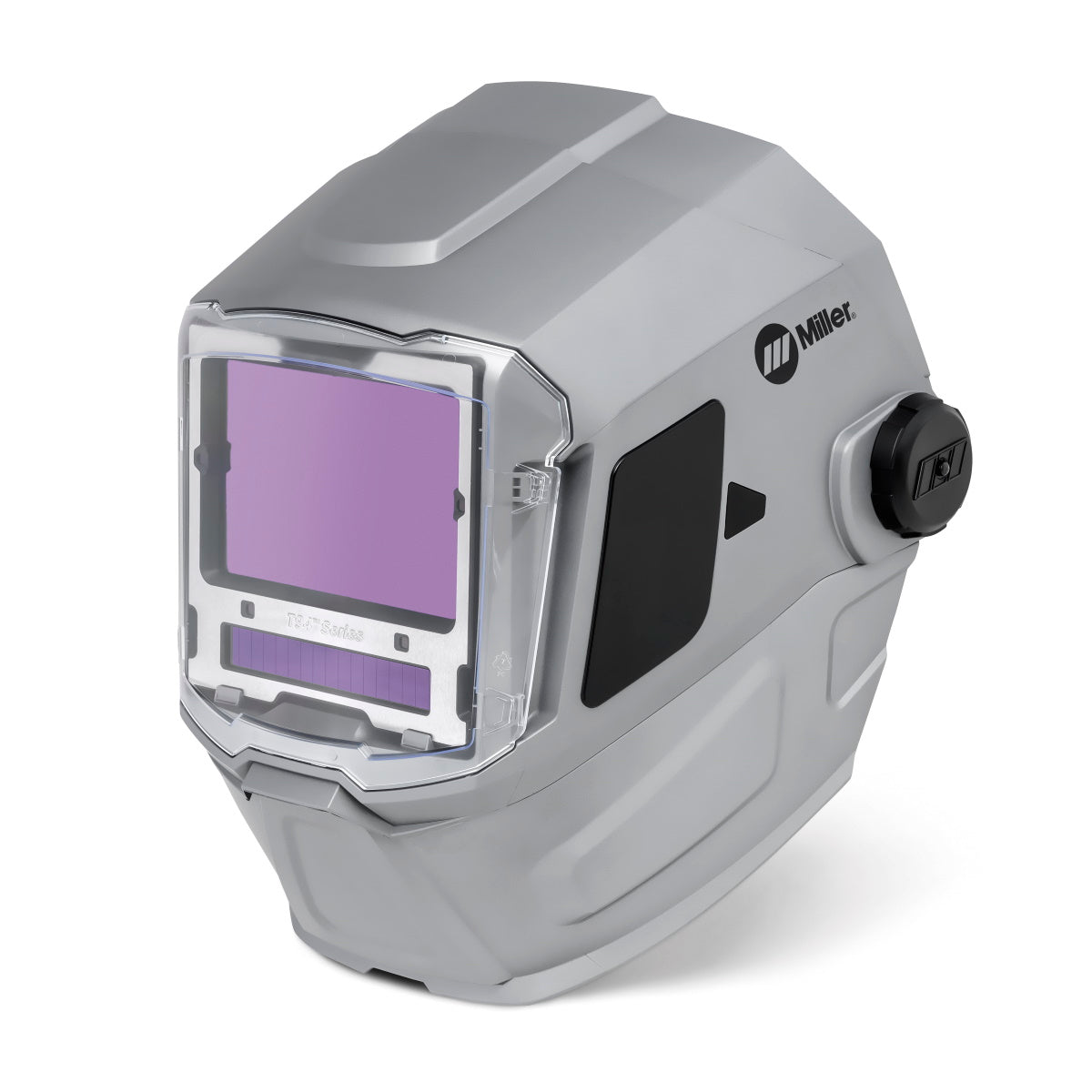

Miller T94i XL Welding Helmet w/Clearlight 2.0 Lens (287768)
Download Product Spec Sheet
Comfort, visibility, and productivity in an industrial-strength package make the Miller T94i XL Welding Helmet your go-to choice for career welders. The T94i XL helmet features Clearlight 2.0 lens technology, and the industry's largest integrated grind shield. MIller designed the T94i XL to minimize operator fatigue: it's 4% lighter, 14% better balanced, 8 degrees cooler thanks to its silver shell reflecting more ambient heat, and the design exhibits 17% less neck torque compared to their previous model. The T94i XL offer 13 square inches of viewing space while welding, and 44 square inches of clear viewing area for grinding. The integrated grind shield features HDV technology, which provides a sharp detailed view at any angle with minimal distortion.
Lightweight, Well-balanced design:
The T94i XL helmet substantially reduces neck torque, minimizing operator fatigue.
ClearLight Lens Technology:
ClearLight Lens Technology optimizes contrast and clarity in welding and light states.
Engineered For Rugged Environments:
The T94 design enhancements protect AD lens from dust and moisture; Aluminum heat shield reflects heat to keep lens and user cooler.

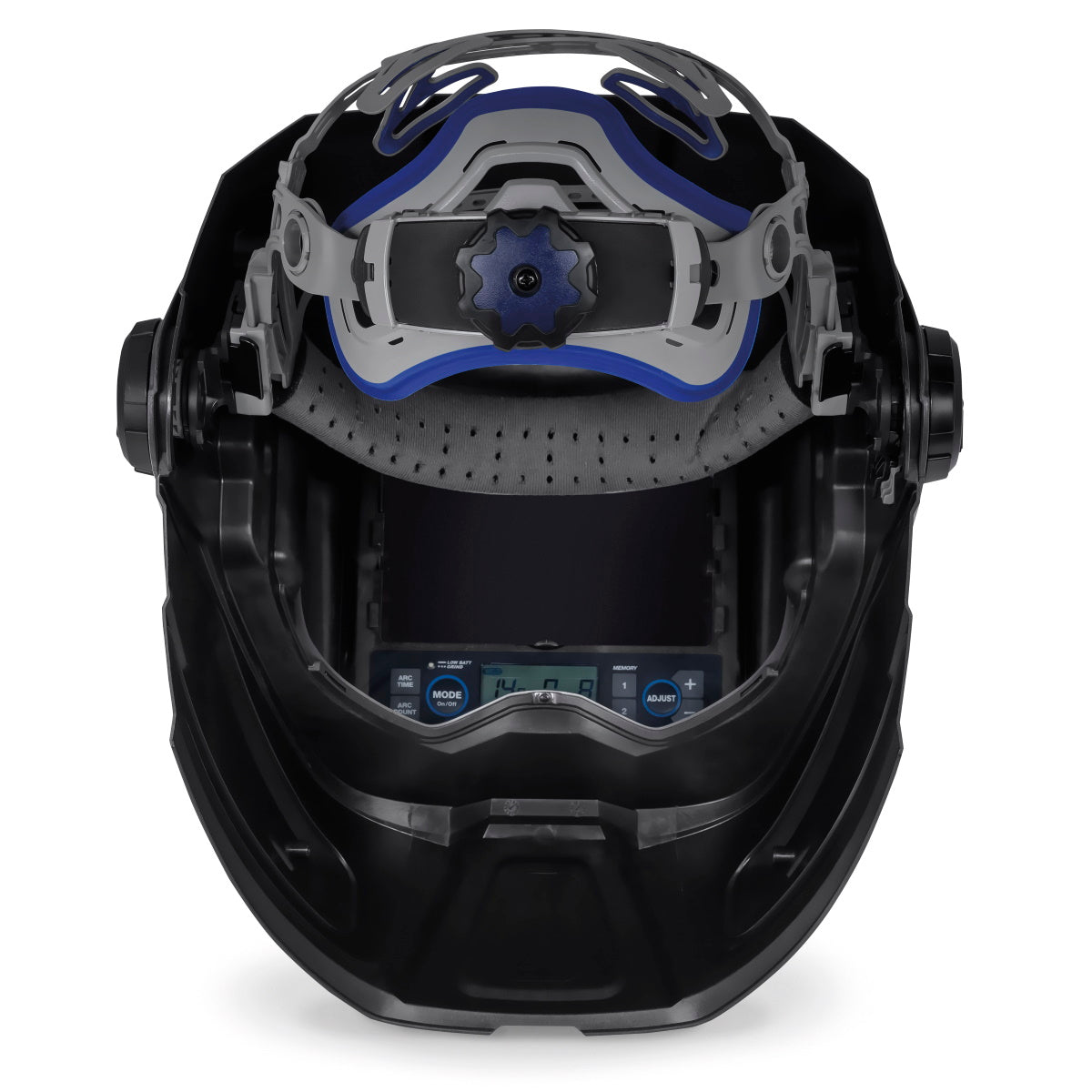

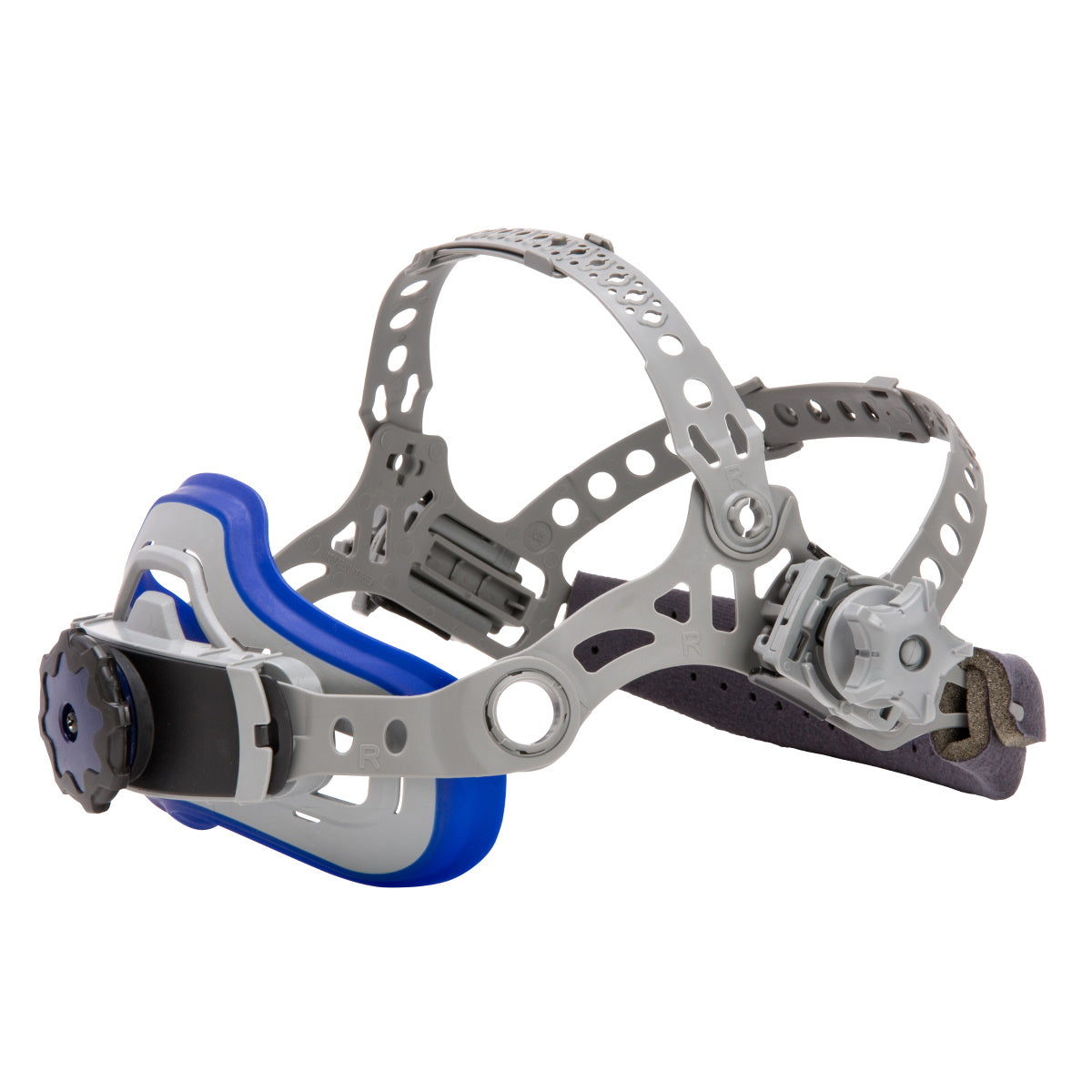

Premium Headgear:
The four-point flexible headgear on the T94 provides a secure fit, while oversized comfort cushion maximizes all-day wearability.
InfoTrack 2.0:
Monitors arc time and arc count for quoting and metrics.
X-Mode:
The X-Mode feature electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.
Quick-Release Cover Lens:
Simplifies lens changes, reducing downtime
Key Features
• Clearlight lens technology
• 4 Operating modes
• Ergonomic design - reduces neck strain
• Four point ergonomic headgear
• Shade 5.0 side windows
• Quick-release front cover lens
• Helmet locks in the upright position
Quick Specs
• Viewing area - 9 sq inches
• Weld - shade 8-13
• Cut - shade 5-8
• Grind - shade 3
• X-mode - shade 8-13
• Sensors - 4
• TIG Rating - 3 amps and above
• Weight - 25.7 oz
• Grind shield viewing - 44 sq inches
• 3 Year lens warranty
Includes
• T94i Helmet
• Helmet Bag

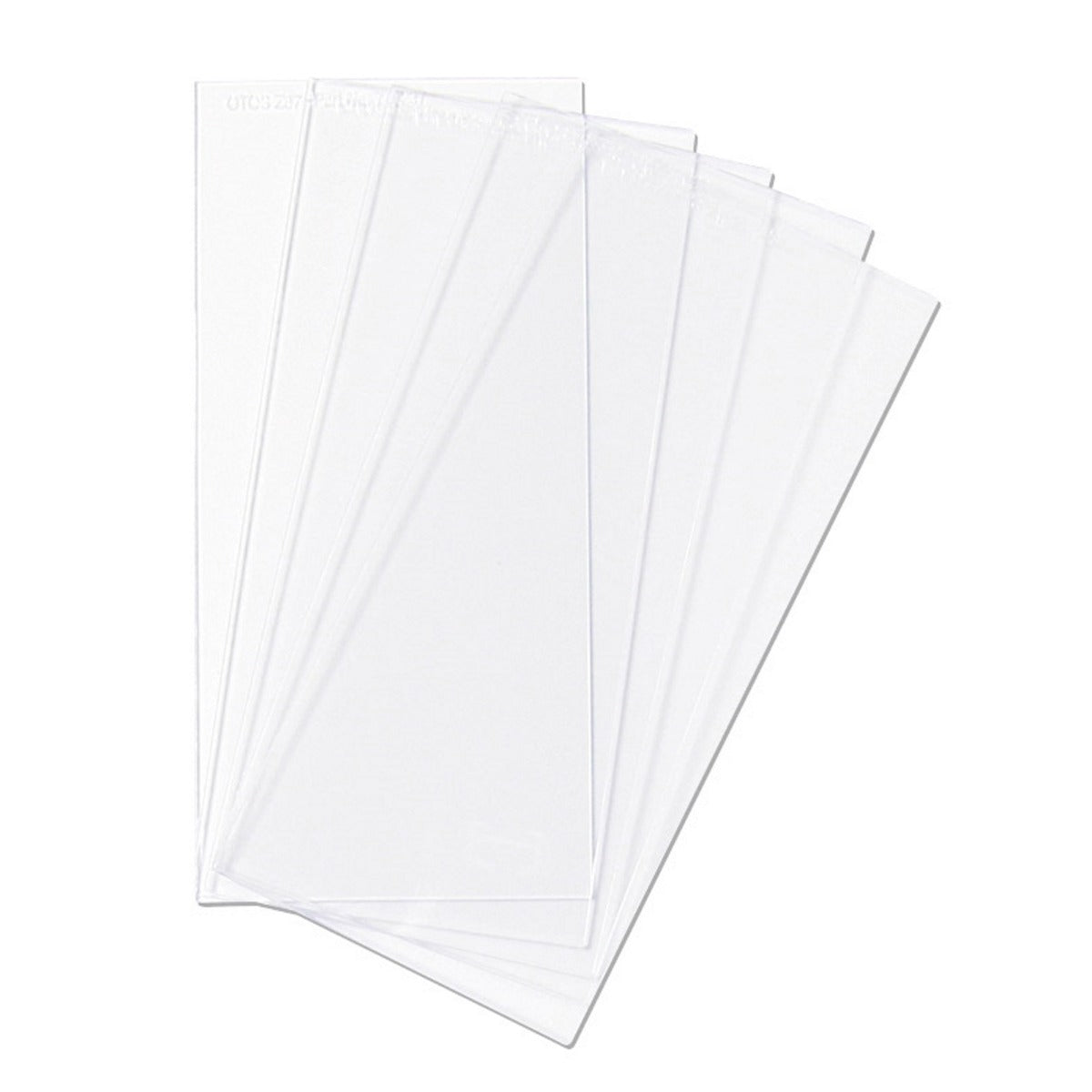

• 5 Outside cover lens'
• 2 Inside cover lens'
• 2 Side Window covers
Lightweight, Well-balanced design:
The T94i XL helmet substantially reduces neck torque, minimizing operator fatigue.
ClearLight Lens Technology:
ClearLight Lens Technology optimizes contrast and clarity in welding and light states.
Engineered For Rugged Environments:
The T94 design enhancements protect AD lens from dust and moisture; Aluminum heat shield reflects heat to keep lens and user cooler.
Premium Headgear:
The four-point flexible headgear on the T94 provides a secure fit, while oversized comfort cushion maximizes all-day wearability.
InfoTrack 2.0:
Monitors arc time and arc count for quoting and metrics.
X-Mode:
The X-Mode feature electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.
Quick-Release Cover Lens:
Simplifies lens changes, reducing downtime
Key Features
• Clearlight lens technology
• 4 Operating modes
• Ergonomic design - reduces neck strain
• Four point ergonomic headgear
• Shade 5.0 side windows
• Quick-release front cover lens
• Helmet locks in the upright position
Quick Specs
• Viewing area - 9 sq inches
• Weld - shade 8-13
• Cut - shade 5-8
• Grind - shade 3
• X-mode - shade 8-13
• Sensors - 4
• TIG Rating - 3 amps and above
• Weight - 25.7 oz
• Grind shield viewing - 44 sq inches
• 3 Year lens warranty
Includes
• T94i Helmet
• Helmet Bag
• 5 Outside cover lens'
• 2 Inside cover lens'
• 2 Side Window covers
| MPN: | MIL287768 |
|---|---|
| UPC: | 715959692816 |
| Warranty | Auto-darkening lens is warrantied for four years. |
| Arc Sensors | 4 |
| Delay Control | Yes |
| Digital | Yes |
| Grind Mode | Yes |
| Low Amp TIG Rated | Yes |
| Modes | Cut External Grind Weld X-Mode |
| Reaction Time | 1/25,000 |
| Sensitivity Control | Yes |
| Shell Material | Nylon |
| Viewing Field | 9 in |
