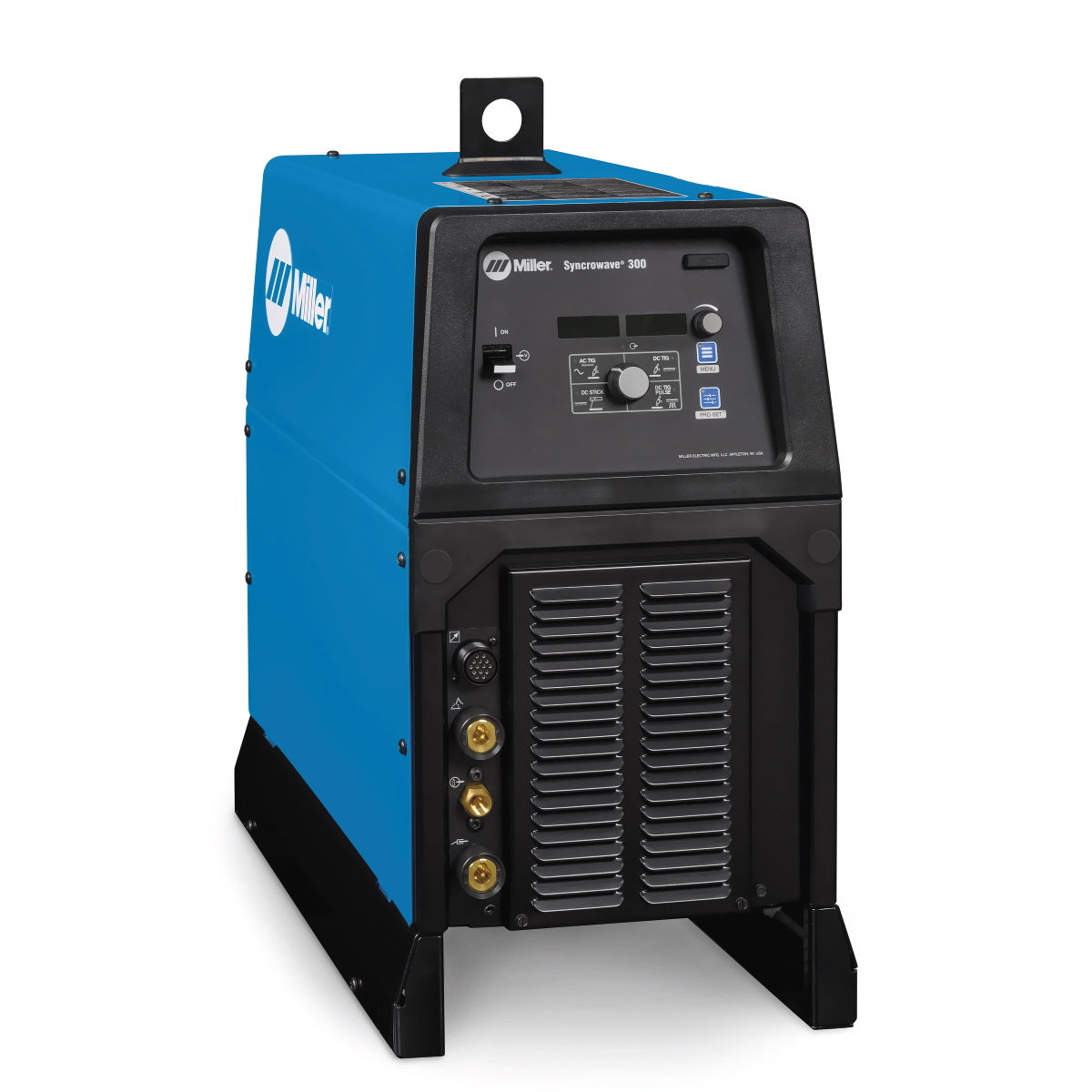

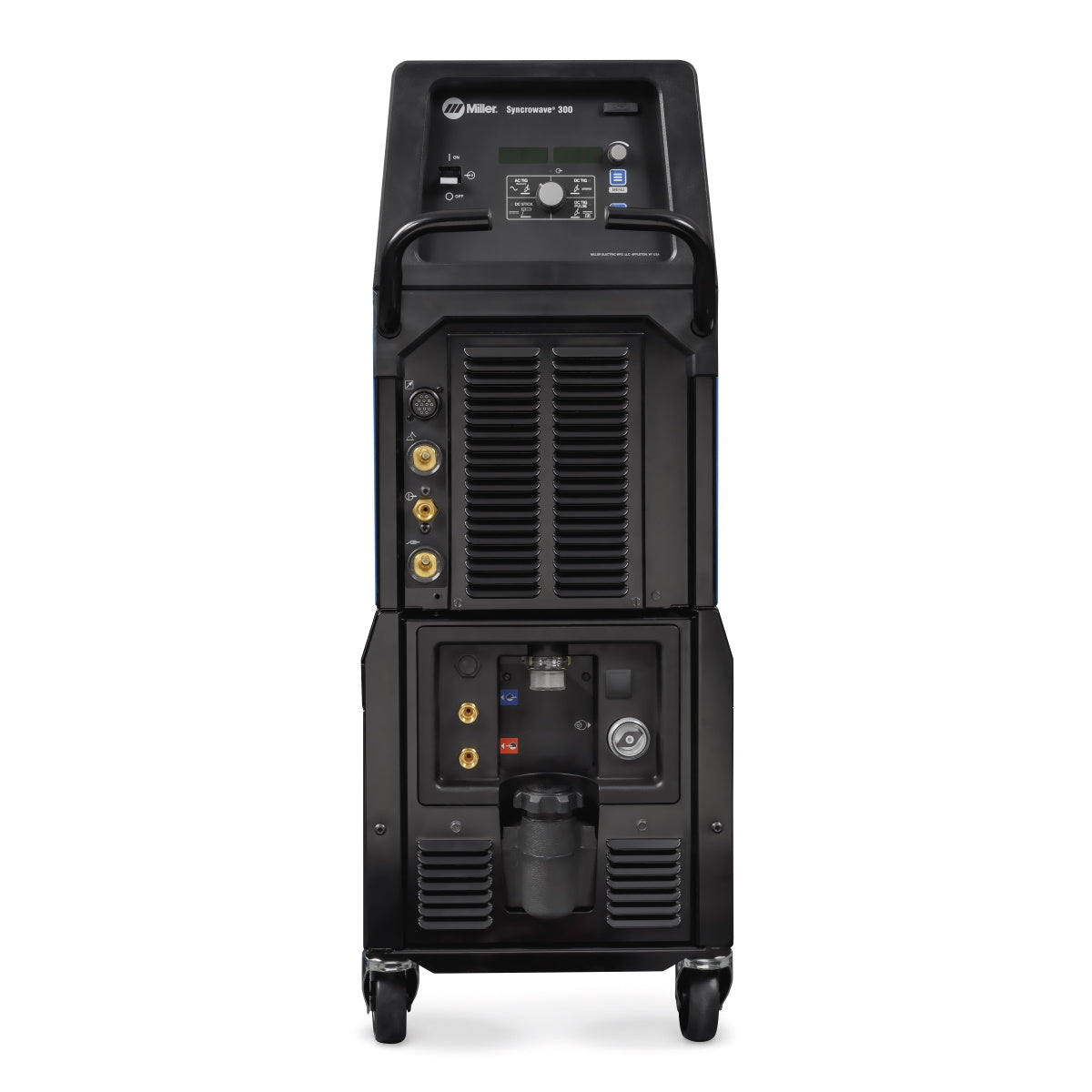

Miller Syncrowave 300 AC/DC TIG and Stick Welder Complete Pkg w/Foot Control (951000003)
3 year warranty. TIG up to 1/2"
Lead time: 2-4 Weeks
Quantity:
Download Product Spec Sheet
The Miller Syncrowave 300 offers single or three phase power and features a 30% duty cycle at 300 amps. This machine comes with Auto-Link technology that automatically links the power source to primary voltage being applied (208/240/480). The AC squarewave welding current of the Syncrowave 300 automatically removes the layer of oxide which is necessary for producing high-quality aluminum welds. The Syncrowave 300 compensates for power fluctuation without changing your welding parameters - line voltage compensation works on fluctuating power +-10 percent. Miller's fan-on-demand technology operates the power source only when needed, reducing noise and energy use. The Syncrowave 300 comes with an Arc Timer/Cycle Counter that records actual welding time and number of arc starts, which is great for estimating job costs.
The Syncrowave 300 is easy to use - the intuitive user interface is simple to understand, making it easy to adjust parameters, and means less time training new employees. The Pro-Set button gets to factory preset parameters with one touch of a button. The AC balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds, the AC balance can be adjusted from 60-80%, and the Pro-Set is defaulted to 68%.. The Syncrowave 300 comes with Pulsed TIG, which can increase puddle agitation, arc stability, and travel speeds while reducing heat input and distortion. This welder comes with DIG control that allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like 7018, and increase the DIG setting for stiffer, more penetrating electrodes like 6010. The Syncrowave 300 also offers Hot Start which is an adaptive control that provides positive arc starts without sticking.
Features
• Auto-Link
• AC Balance Control
• Blue Lightning HF Arc Starts
• Lift-Arc Start
• Auto-Postflow
• Pro-Set
• Arc Timer/Cycle Counter
• Line Voltage Compensation
Quick Specs
• Input Power: 208/240/480 V | 1 or 3-Phase Power
• Amperage Range: 5-300 Amps
• Thickness Capability: 1/2" Steel | 3/8" Aluminum
• Duty Cycle: 30% @ 300A | 60% @ 210A
• Weight: 101 lbs (Power Source) | 176 lbs (With Cooler/Cart)
• Dimensions: 29.4" H x 15" W x 24.6" D (Power Source) | 43.9" H x 20.5" W 36.3" D (With Cooler/Cart)
Comes Complete With
• Syncrowave 300 Power Source
• 8 Foot Power Cord (No Plug)
• Coolmate 3 Cooler
• Running Gear
• RFCS-14 Wired Foot Control
• 4 Gallons of Coolant
• 25 Ft Weldcraft W-280 TIG Torch Kit
• 2 Dinse Connectors
• Owner's Manual
The Syncrowave 300 is easy to use - the intuitive user interface is simple to understand, making it easy to adjust parameters, and means less time training new employees. The Pro-Set button gets to factory preset parameters with one touch of a button. The AC balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds, the AC balance can be adjusted from 60-80%, and the Pro-Set is defaulted to 68%.. The Syncrowave 300 comes with Pulsed TIG, which can increase puddle agitation, arc stability, and travel speeds while reducing heat input and distortion. This welder comes with DIG control that allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like 7018, and increase the DIG setting for stiffer, more penetrating electrodes like 6010. The Syncrowave 300 also offers Hot Start which is an adaptive control that provides positive arc starts without sticking.
Features
• Auto-Link
• AC Balance Control
• Blue Lightning HF Arc Starts
• Lift-Arc Start
• Auto-Postflow
• Pro-Set
• Arc Timer/Cycle Counter
• Line Voltage Compensation
Quick Specs
• Input Power: 208/240/480 V | 1 or 3-Phase Power
• Amperage Range: 5-300 Amps
• Thickness Capability: 1/2" Steel | 3/8" Aluminum
• Duty Cycle: 30% @ 300A | 60% @ 210A
• Weight: 101 lbs (Power Source) | 176 lbs (With Cooler/Cart)
• Dimensions: 29.4" H x 15" W x 24.6" D (Power Source) | 43.9" H x 20.5" W 36.3" D (With Cooler/Cart)
Comes Complete With
• Syncrowave 300 Power Source
• 8 Foot Power Cord (No Plug)
• Coolmate 3 Cooler
• Running Gear
• RFCS-14 Wired Foot Control
• 4 Gallons of Coolant
• 25 Ft Weldcraft W-280 TIG Torch Kit
• 2 Dinse Connectors
• Owner's Manual
| MPN: | MIL951000003 |
|---|---|
| UPC: | 715959702508 |
| Processes | Processes TIG (GTAW) Stick (SMAW) DC pulsed TIG (GTAW-P) |
| Designed For | Precision metal fabrication Maintenance and repair Light and heavy manufacturing Shipbuilding Tube and pipe Automotive Vocational Construction and Fabrication |
| Amperage | 5–300 A |
| Material Thickness | Aluminum 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm) Steel 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 300 A at 22 V, 30% duty cycle 210 A at 18 V, 60% duty cycle |
| Max Open Circuit Voltage | 60 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Weld Output | t 300 A at 22 V, 30% duty cycle 210 A at 18 V, 60% duty cycle |
| Weight | 176.4 lb. (80 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
