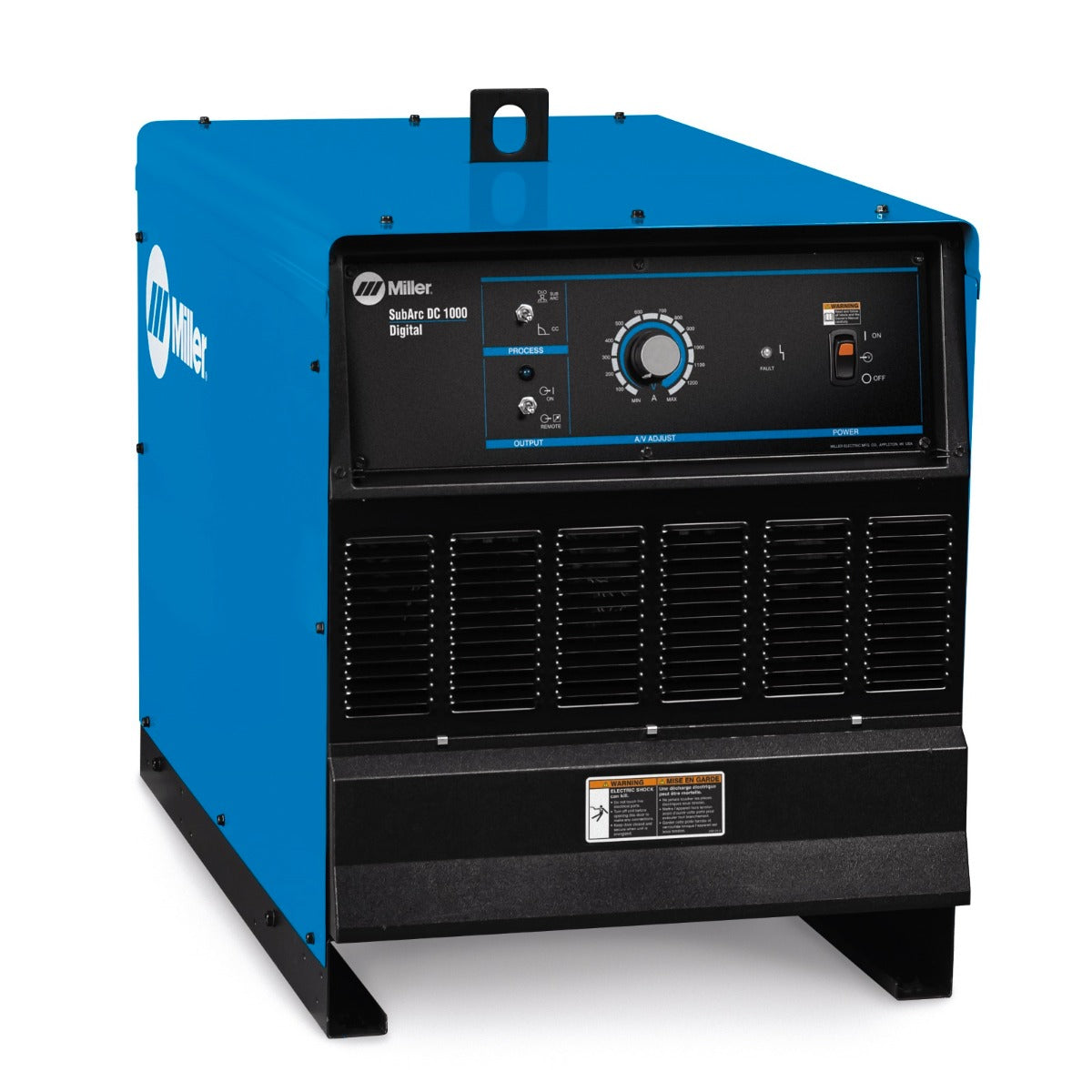

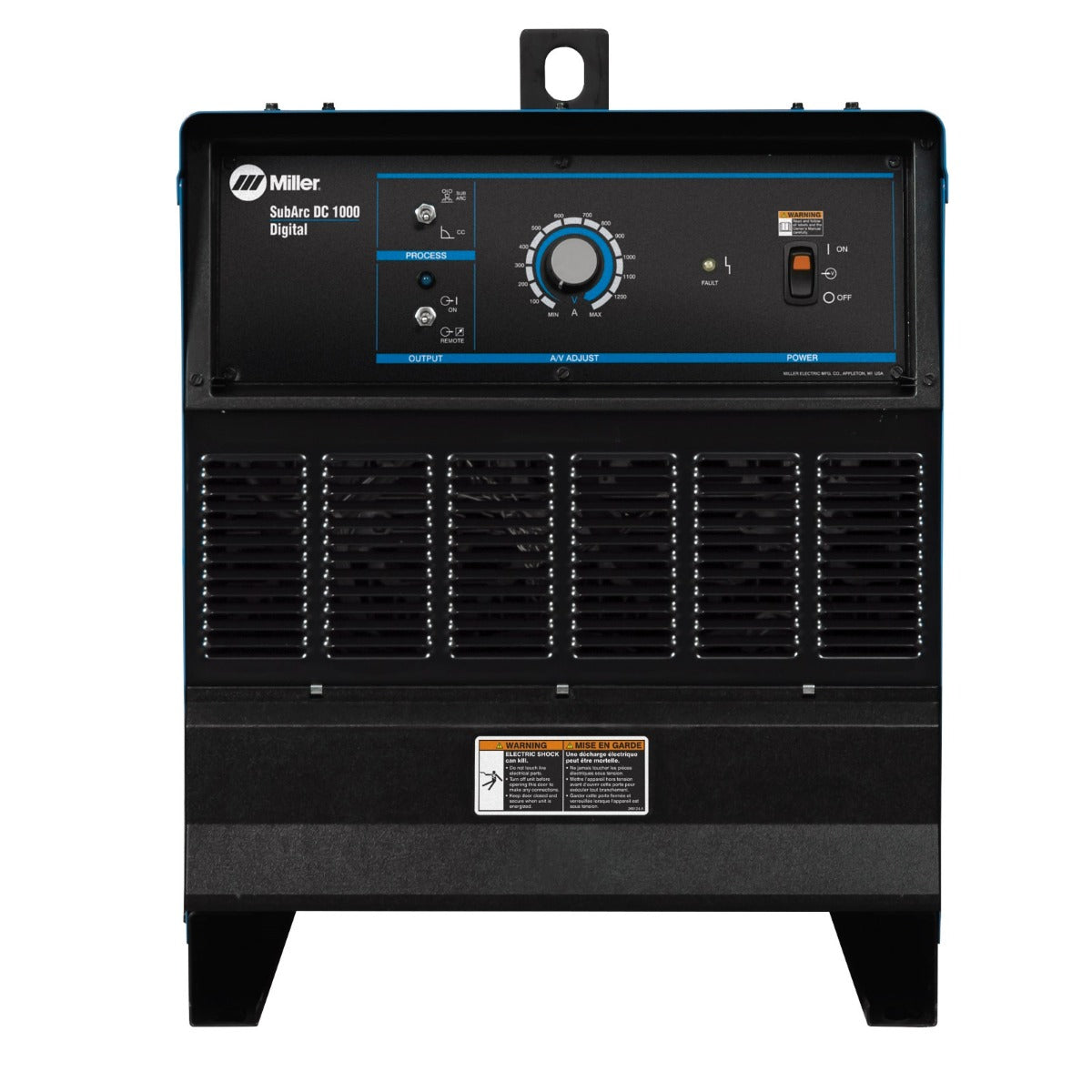

Miller Subarc DC 1000 Digital Submerged Arc Welder (907624)
The Miller Subarc DC 1000 Digital series welders are the industry standard for submerged arc welding. Miller offers three different power source options, three interface controls, and a range of wire drive motors and accessories.
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 3-Phase Only
• Amperage Range: 100-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 180A @ 230V | 90A @ 460V | 72A @ 575V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 682 lbs
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 3-Phase Only
• Amperage Range: 100-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 180A @ 230V | 90A @ 460V | 72A @ 575V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 682 lbs
| MPN: | MIL907624 |
|---|---|
| UPC: | 715959600941 |
| Processes | Submerged arc (SAW) Electroslag (ESW) Air carbon arc cutting and gouging (CAC-A) |
| Designed For | Shipbuilding Pipeline Manufacturing Railcar Railcar Shipbuilding Heavy fabrication Pipe manufacturing Pressure vessel |
| Amperage | 100–1,250 A in CC mode |
| Weldable Metals | Stainless Steel Steel |
| Input Voltage | 460/480 V |
| Input Phase | Requires 3-phase power |
| Input Hz | 60 Hz |
| Input Phase | DC |
| Rated Output | 1,000 A at 44 V, 100% duty cycle |
| Max Open Circuit Voltage | 1,000 A at 44 V, 100% duty cycle |
| Portability | Lift Eye (Standard) |
| Weld Output | 1,000 A at 44 V, 100% duty cycle |
| Weight | 682 lb. (309 kg) |
| Warranty | True Blue Warranty |
MPN: MIL907624
UPC: 715959600941
