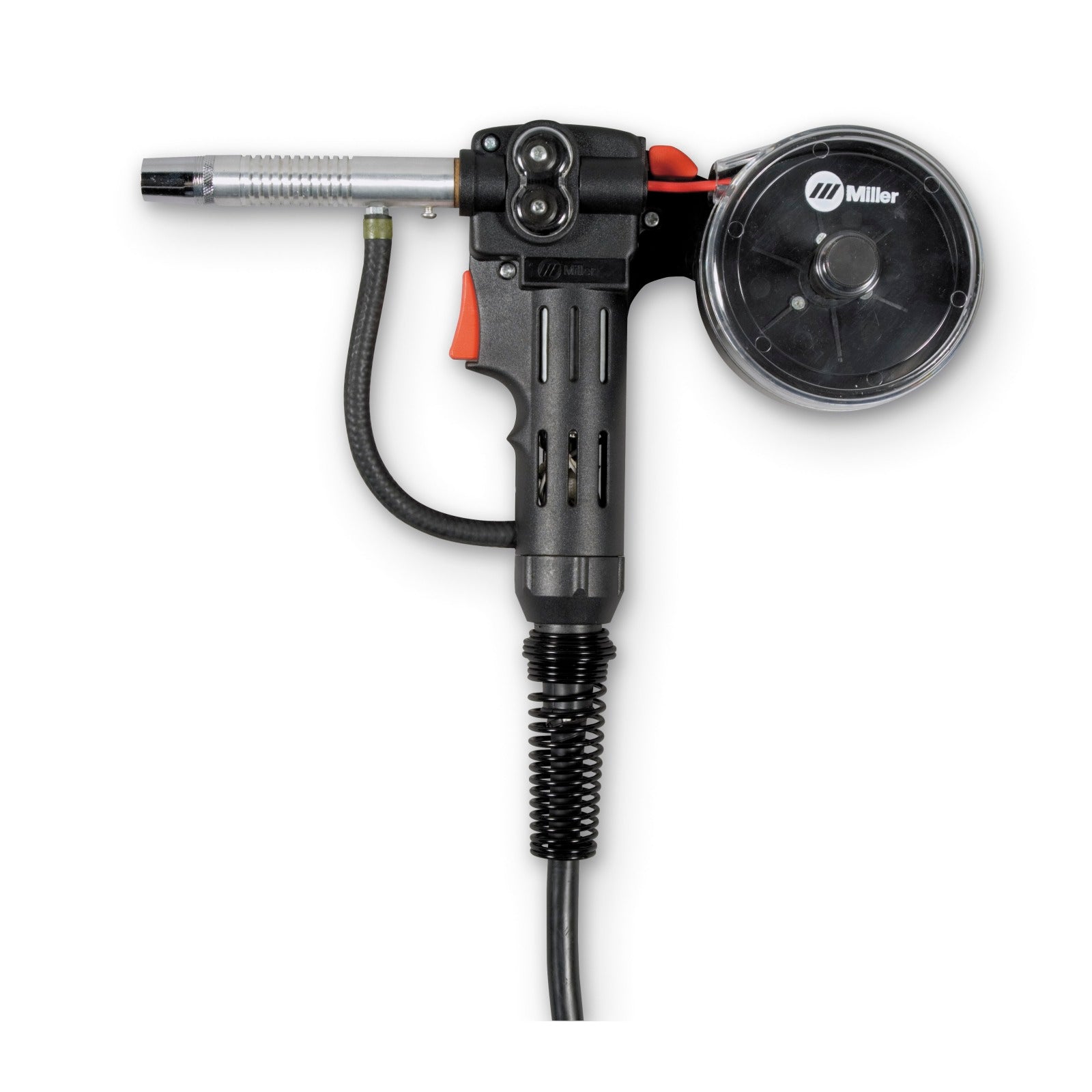

Miller Spoolmate 100 MIG Gun (300371)
Download Product Spec Sheet
The Miller Spoolmate 100 MIG Gun (300371) is designed to be used the Millermatic 141, Millermatic 190, Millermatic 211, Multimatic 200, Multimatic 215, Multimatic 220, and the Syncrowave 210 MIG/TIG Complete. That's one versatile MIG gun! The Spoolmate 100 is a light industrial gun for 4043 series aluminum wire rated at 135 amps at 30 percent duty cycle. The 12-foot direct-connect cable with heavy-duty strain relieve provides extended reach and accessibility to your work.
Dual V-knurled drive rolls with adjustable tension control for consistent feeding of different types of wire. A clear spool canister protects the wire and allows for easy visibility. Carrying case, extra contact tips and nozzle are included with this package.
Process:
MIG (GMAW) with Aluminum, Mild and Stainless Steels.
Applications:
• Aluminum Fabrication
• Home Maintenance and Repair
• Auto and Marine Repair

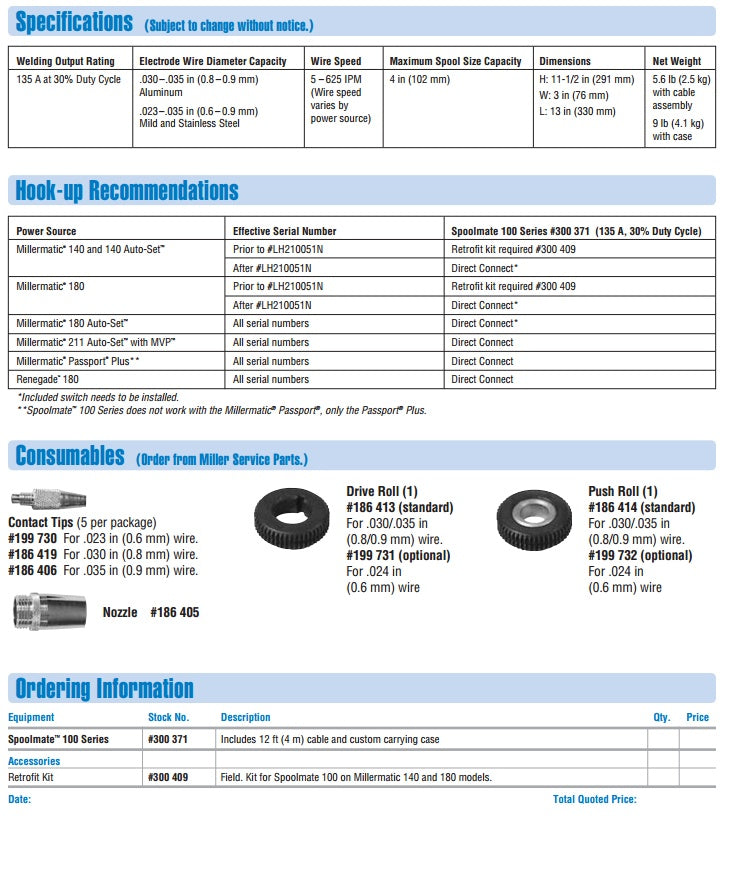

Specifications:
Welding Output Rating
• 135 A at 30% Duty Cycle
Wire Diameter Capacity
• .030 - .035 in (0.8 - 0.9 mm) aluminum
• .023 - .035 in (0.6 - 0.9 mm) steel, and stainless steel
Wire Speed
• MM 140: 5-365 IPM
• MM 180: 65-625 IPM
Max Spool Size Capacity
• 4 in (102 mm)
Net Weight
• 5 lb (2.3 kg) with cable assembly
| MPN: | MIL300371 |
|---|---|
| UPC: | 715959382144 |
