Miller Millermatic 255 MIG/Pulsed MIG Welder Fully Loaded (907734)
3 year warranty. Welds up to 1/2"
Quantity:
Download Product Spec Sheet
The Miller Millermatic 255 MIG/Pulsed MIG Welder- (Fully Loaded) 208/240V (907734) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 250-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.
Running Gear comes in a separate box and requires some assembly.
Easy-to-understand interface
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG welding delivers higher quality
Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
Auto-Set Elite
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Program mode allows easy save and recall of favorite weld settings.
Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
Auto-Line Technology
For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Versatility
Capabilities include MIG, pulsed MIG and flux-cored welding.
Portability - Machine only weighs 84 lb.
Weight is reduced by more than 50 percent compared to the Millermatic 252.
EZ-Latch running gear
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.

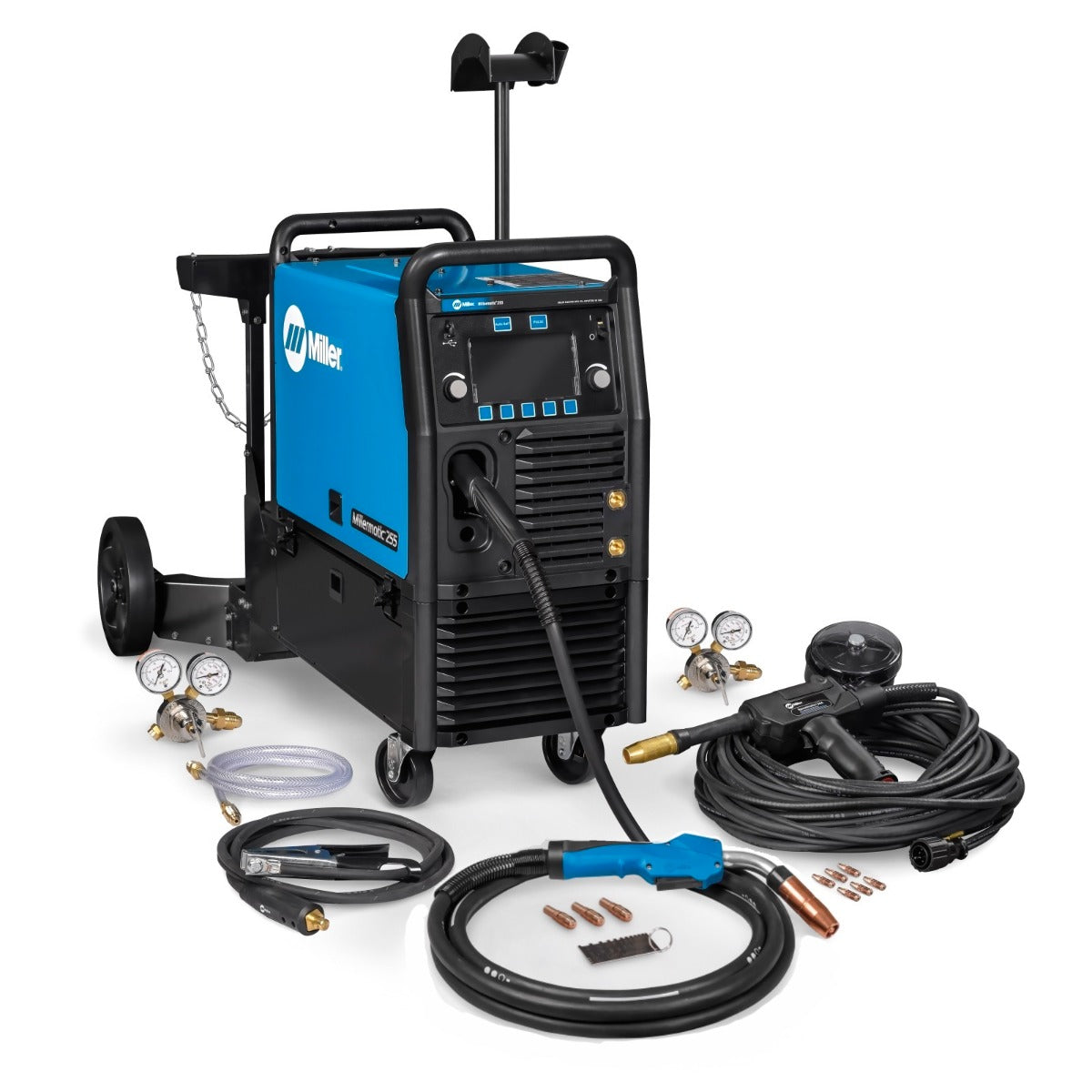

WHAT'S INCLUDED
• Millermatic 255 with 10 ft. (3 m) power cord
• 15 ft. (4.5 m) Miller MDX Gun for .035/.045 in. (0.9/1.2 mm) wire (Accepts Bernard AccuLock S Consumables)
• 10 ft. (3 m) work cable and clamp and 50mm Dinse-style connector
• (2) Flow gauge regulators and gas hose for argon or AR/CO2 mix
• Extra Contact tips
• .035/.045 in. (0.9/1.2 mm) reversible drive rolls
• Chain to secure gas cylinder
• Material Thickness Gauge
• EZ-Latch Dual Cylinder Running Gear with Elevated Gun/Cable Rack (951769)
• 30 Foot 30A Spool Gun (130831)
Running Gear comes in a separate box and requires some assembly.
Easy-to-understand interface
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG welding delivers higher quality
Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
Auto-Set Elite
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Program mode allows easy save and recall of favorite weld settings.
Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
Auto-Line Technology
For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Versatility
Capabilities include MIG, pulsed MIG and flux-cored welding.
Portability - Machine only weighs 84 lb.
Weight is reduced by more than 50 percent compared to the Millermatic 252.
EZ-Latch running gear
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.
WHAT'S INCLUDED
• Millermatic 255 with 10 ft. (3 m) power cord
• 15 ft. (4.5 m) Miller MDX Gun for .035/.045 in. (0.9/1.2 mm) wire (Accepts Bernard AccuLock S Consumables)
• 10 ft. (3 m) work cable and clamp and 50mm Dinse-style connector
• (2) Flow gauge regulators and gas hose for argon or AR/CO2 mix
• Extra Contact tips
• .035/.045 in. (0.9/1.2 mm) reversible drive rolls
• Chain to secure gas cylinder
• Material Thickness Gauge
• EZ-Latch Dual Cylinder Running Gear with Elevated Gun/Cable Rack (951769)
• 30 Foot 30A Spool Gun (130831)
| MPN: | MIL907734-301449-301481-130831-30-150-580 |
|---|---|
| UPC: | 715959668873 |
| Processes | MIG (GMAW), Pulsed MIG, Flux Cored (FCAW) |
| Designed For | Racing Farm and Ranch Auto Repair Manufacturing Welding Education and Training |
| Amperage | 20 A - 350 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) - 1/2 in. (12.7 mm) Mild Steel 24 ga. (0.5 mm) - 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | 230 A at 25.5 V, 60% duty cycle |
| Max Open Circuit Voltage | 87 VDC |
| Wire Feed Speed | 1.3 m/min - 20 m/min 50 IPM - 800 IPM |
| Wire Diameter | Aluminum 0.035 in. - 0.047 in. Aluminum 0.9 mm. - 1.2 mm. Stainless 0.023 in. - 0.045 in. Stainless 0.6 mm. - 1.2 mm. Solid Steel 0.6 mm. - 1.2 mm. Solid Steel 0.023 in. - 0.045 in. Flux Cored 0.03 in. - 0.045 in. Flux Cored 0.8 mm. - 1.2 mm. Silicon Bronze 0.030 in. - 0.035 in. Silicon Bronze 0.8 mm - 0.9 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Weight | 84 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
