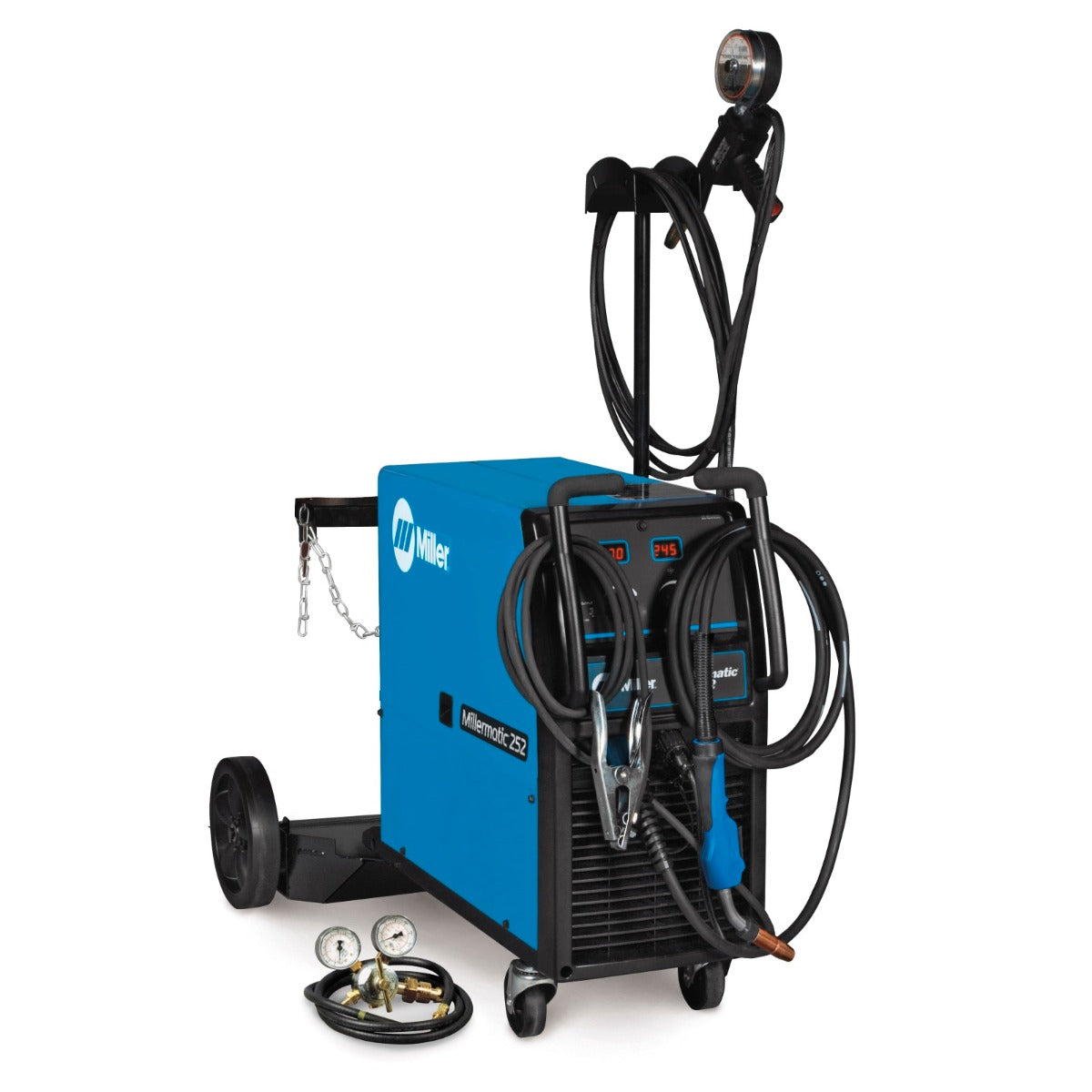

Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960)
3 year warranty. Welds up to 1/2"
Quantity:
Download Product Spec Sheet
Not only can the Miller Millermatic 252 can weld material from 22 gauge to 1/2in thick in a single pass and has the highest output in its class, this package includes a Spoolmatic 30A Gun!
Highest Output in its Class
(250 A at 28 VDC). Weld longer on high-end applications.
Auto Gun Detect
Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.

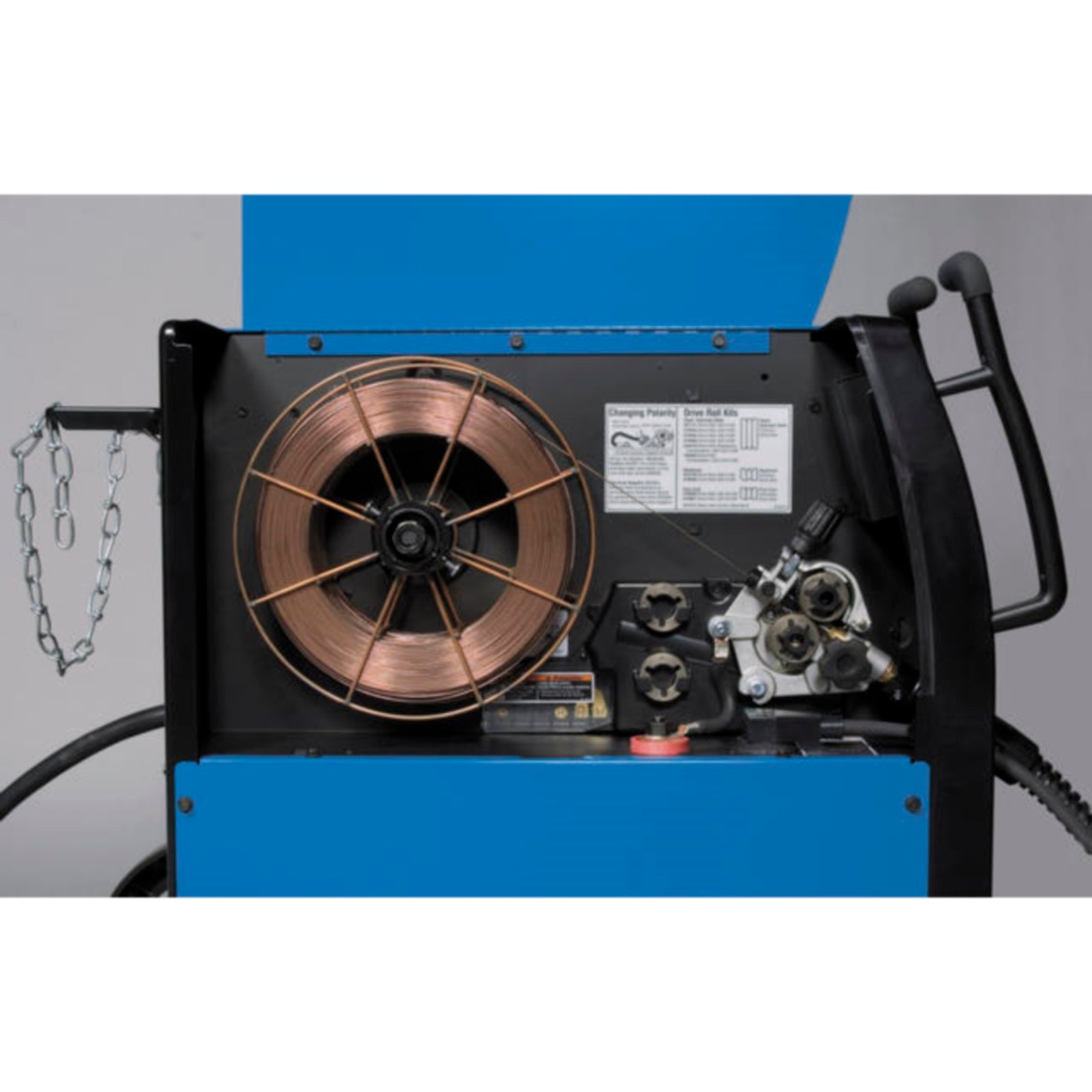

Angled, Dual-Gear Driven, Cast Aluminum Drive System
Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
EZ-Access Consumable Compartment and Parameter Chart.
The Spoolmate 200 saves time for the operator by eliminating the need to go back to the machine to change wire feed speed.

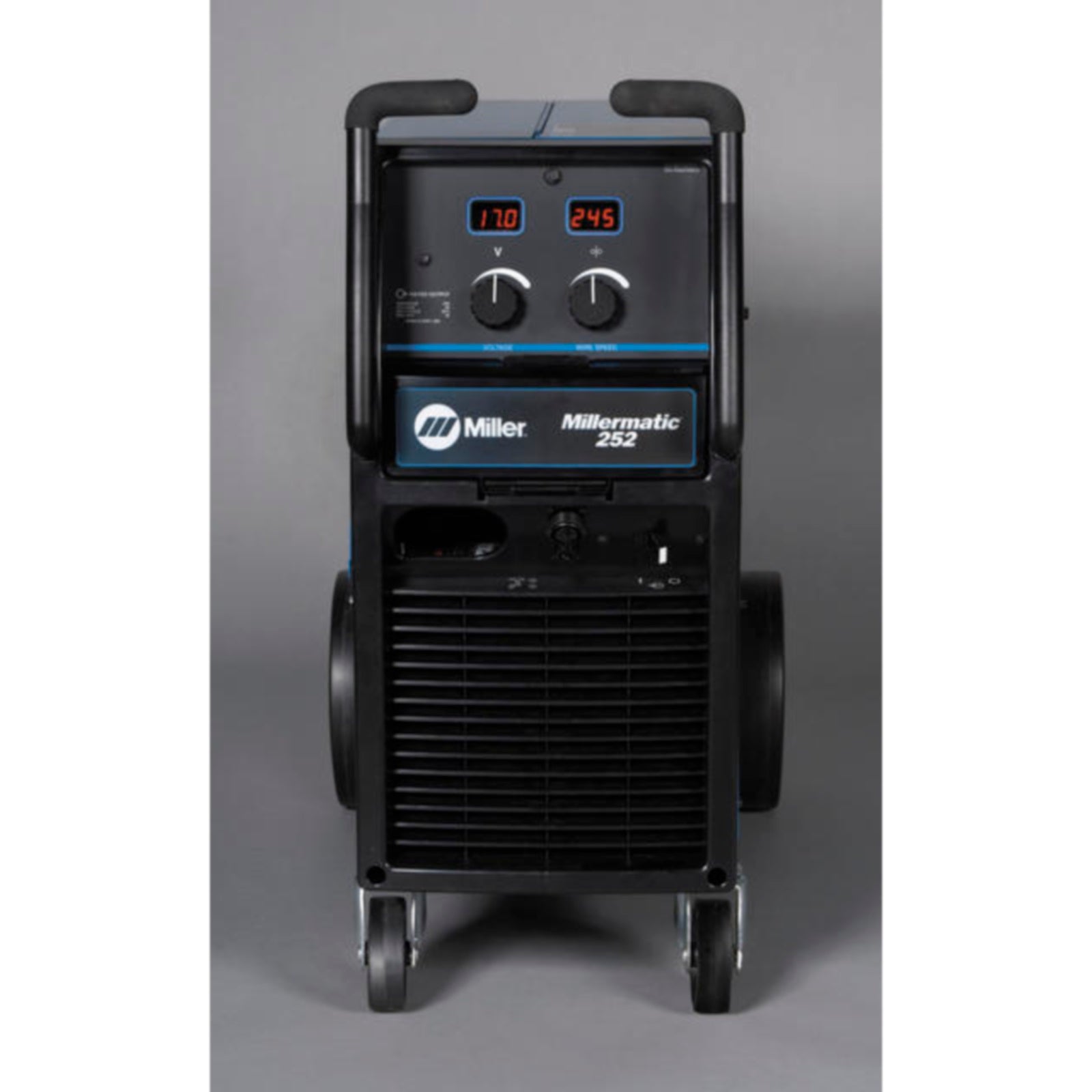

Large, Digital Front Panel with Built-in Digital Timers Menu
Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
Push-Pull Gun Direct Connect
Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.
EZ-Change Low Cylinder Rack
Allows users to easily roll cylinders on and off of rack - no need to lift cylinders.
Larger Work Area
Now with longer 15-ft M-25 MIG gun means you can reach more of your work without having to stop and move the machine.

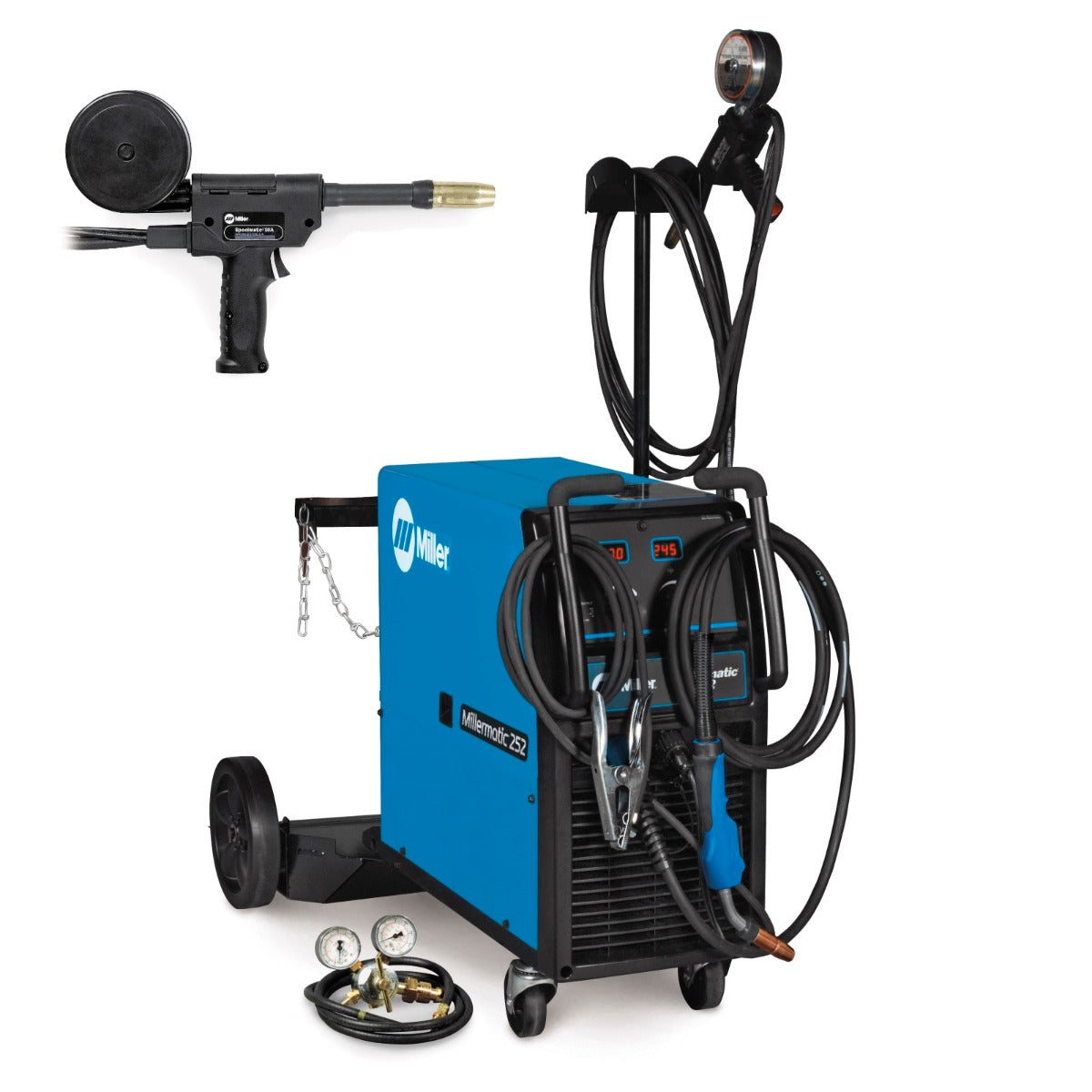

Comes complete with:
• Millermatic 252 power source
• 10 ft (3 m) power cord and plug
• 15 ft (4.5 m), 250 amp MDX 250 MIG Gun (This takes Miller MDX Consumables)

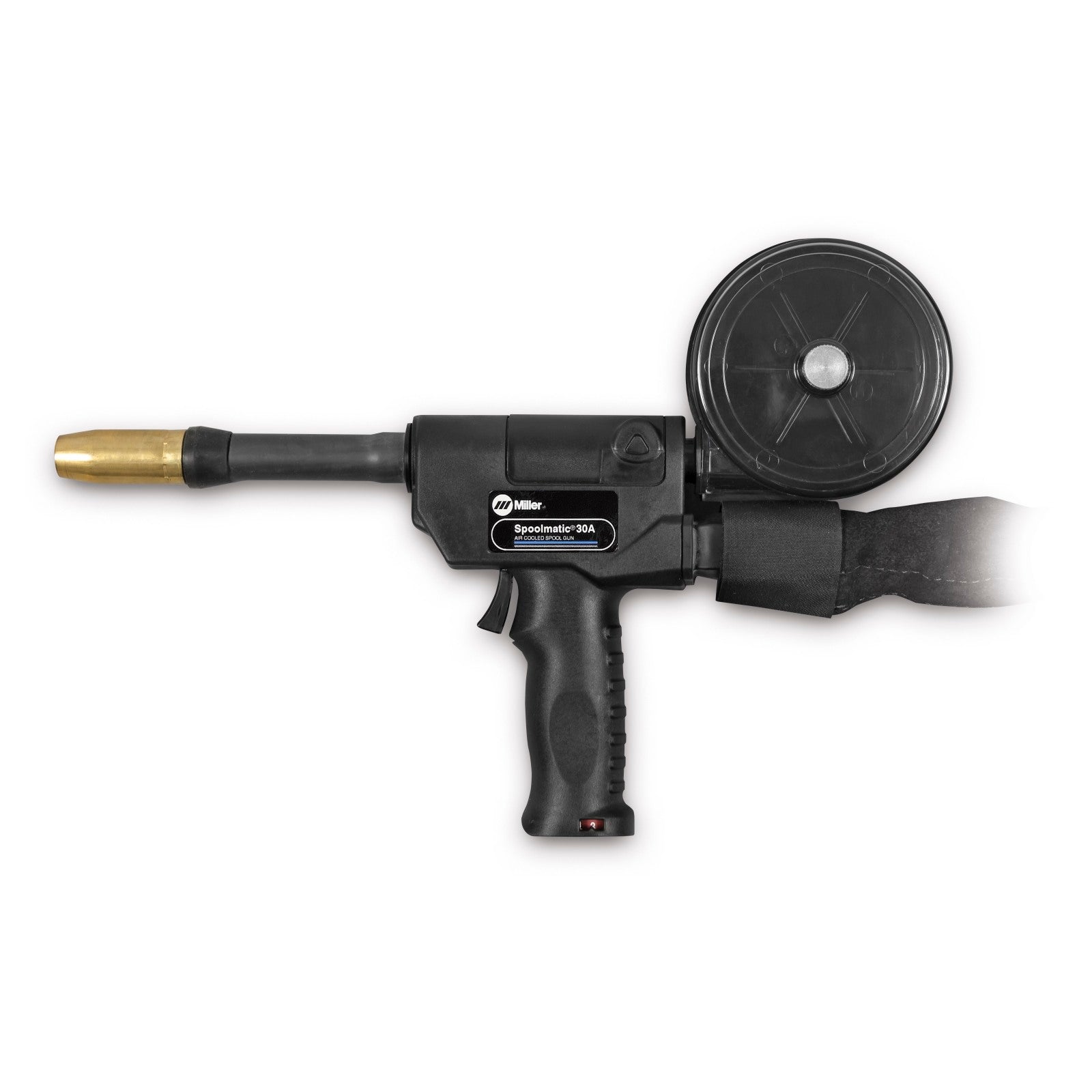

• 30 ft Spoolmatic 30A Spool Gun (130831)
• 10 ft (3 m) work cable and clamp
• Argon mix regulator/flow gauge and hose
• Extra contact tips
• EZ-Change Dual Cylinder Rack
• .030/.035 in reversible drive rolls
Highest Output in its Class
(250 A at 28 VDC). Weld longer on high-end applications.
Auto Gun Detect
Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.
Angled, Dual-Gear Driven, Cast Aluminum Drive System
Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
EZ-Access Consumable Compartment and Parameter Chart.
The Spoolmate 200 saves time for the operator by eliminating the need to go back to the machine to change wire feed speed.
Large, Digital Front Panel with Built-in Digital Timers Menu
Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
Push-Pull Gun Direct Connect
Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.
EZ-Change Low Cylinder Rack
Allows users to easily roll cylinders on and off of rack - no need to lift cylinders.
Larger Work Area
Now with longer 15-ft M-25 MIG gun means you can reach more of your work without having to stop and move the machine.
Comes complete with:
• Millermatic 252 power source
• 10 ft (3 m) power cord and plug
• 15 ft (4.5 m), 250 amp MDX 250 MIG Gun (This takes Miller MDX Consumables)
• 30 ft Spoolmatic 30A Spool Gun (130831)
• 10 ft (3 m) work cable and clamp
• Argon mix regulator/flow gauge and hose
• Extra contact tips
• EZ-Change Dual Cylinder Rack
• .030/.035 in reversible drive rolls
| MPN: | MIL951960 |
|---|---|
| UPC: | 715959696784 |
| Processes | Flux-Cored|MIG |
| Designed For | Racing Farm and Ranch Manufacturing Welding Education and Training |
| Amperage | 30 A - 300 A |
| Material Thickness | Aluminum 14 ga. (1.9 mm) - 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) - 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Phase | DC |
| Rated Output | 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle |
| Max Open Circuit Voltage | 38 VDC |
| Wire Feed Speed | 1.3 m/min - 17.8 m/min 50 IPM - 700 IPM |
| Wire Diameter | Stainless 0.023 in. - 0.045 in. Stainless 0.6 mm. - 1.2 mm. Solid Steel 0.6 mm. - 1.2 mm. Solid Steel 0.023 in. - 0.045 in. Flux Cored 0.03 in. - 0.045 in. Flux Cored 0.8 mm. - 1.2 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Weight | 205 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
