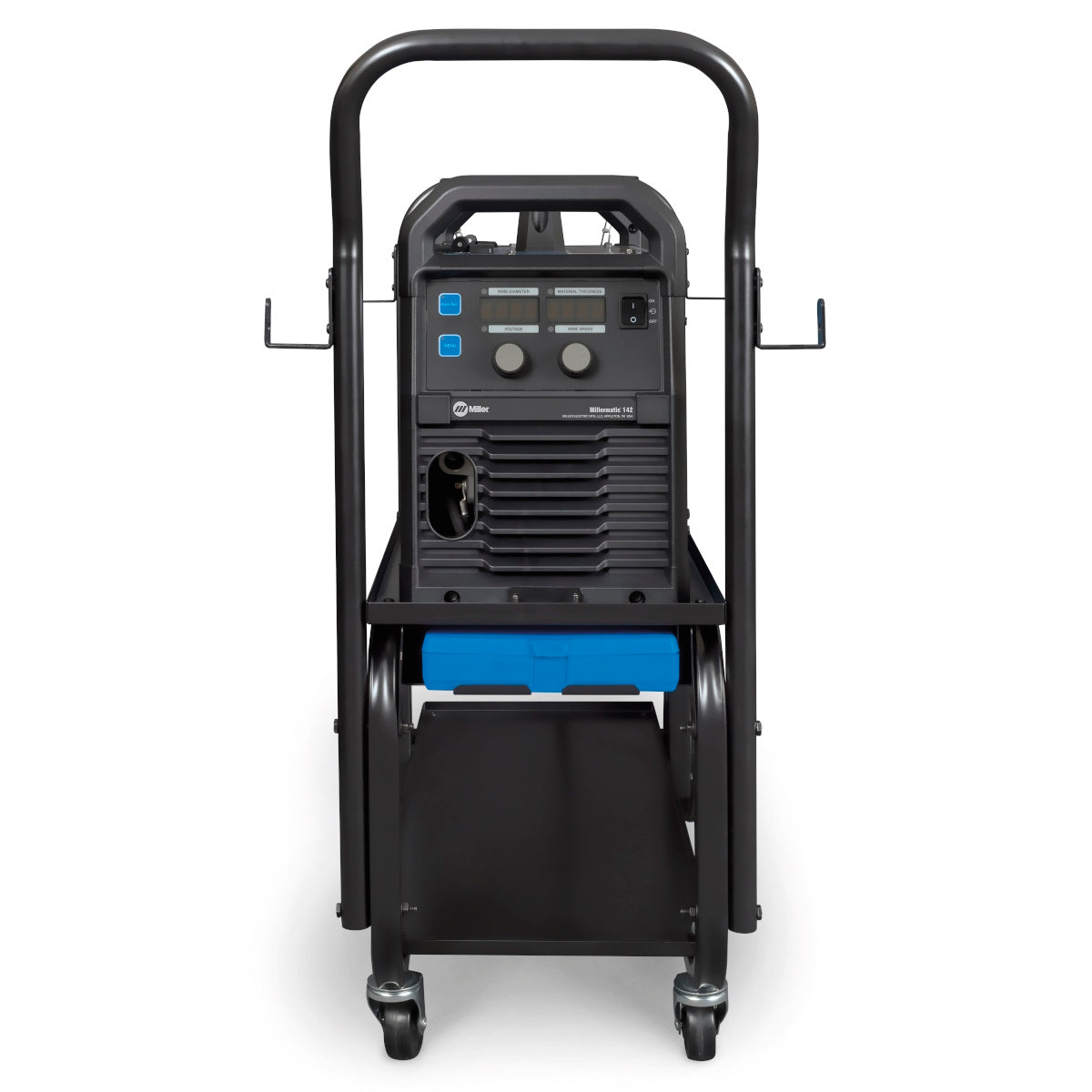

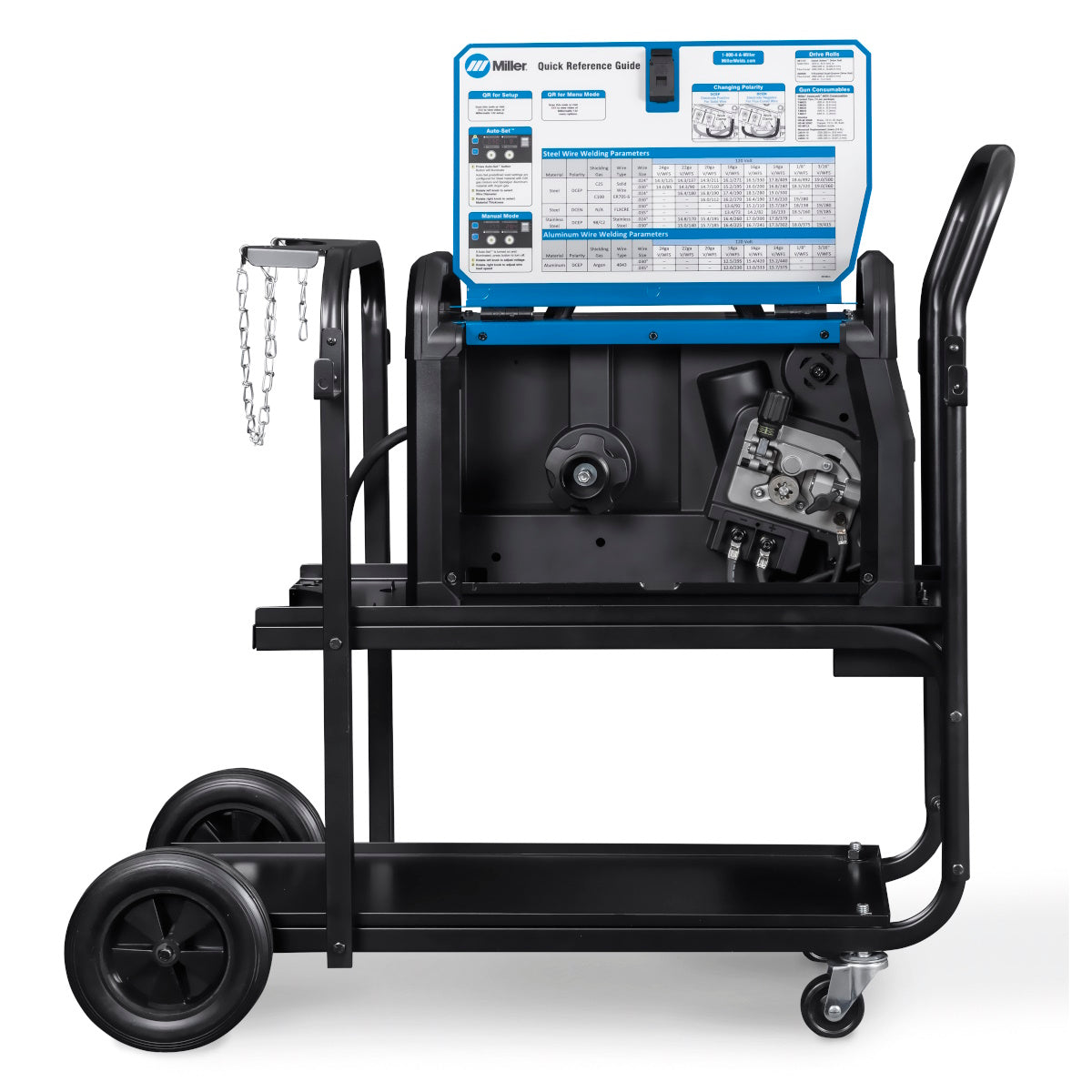

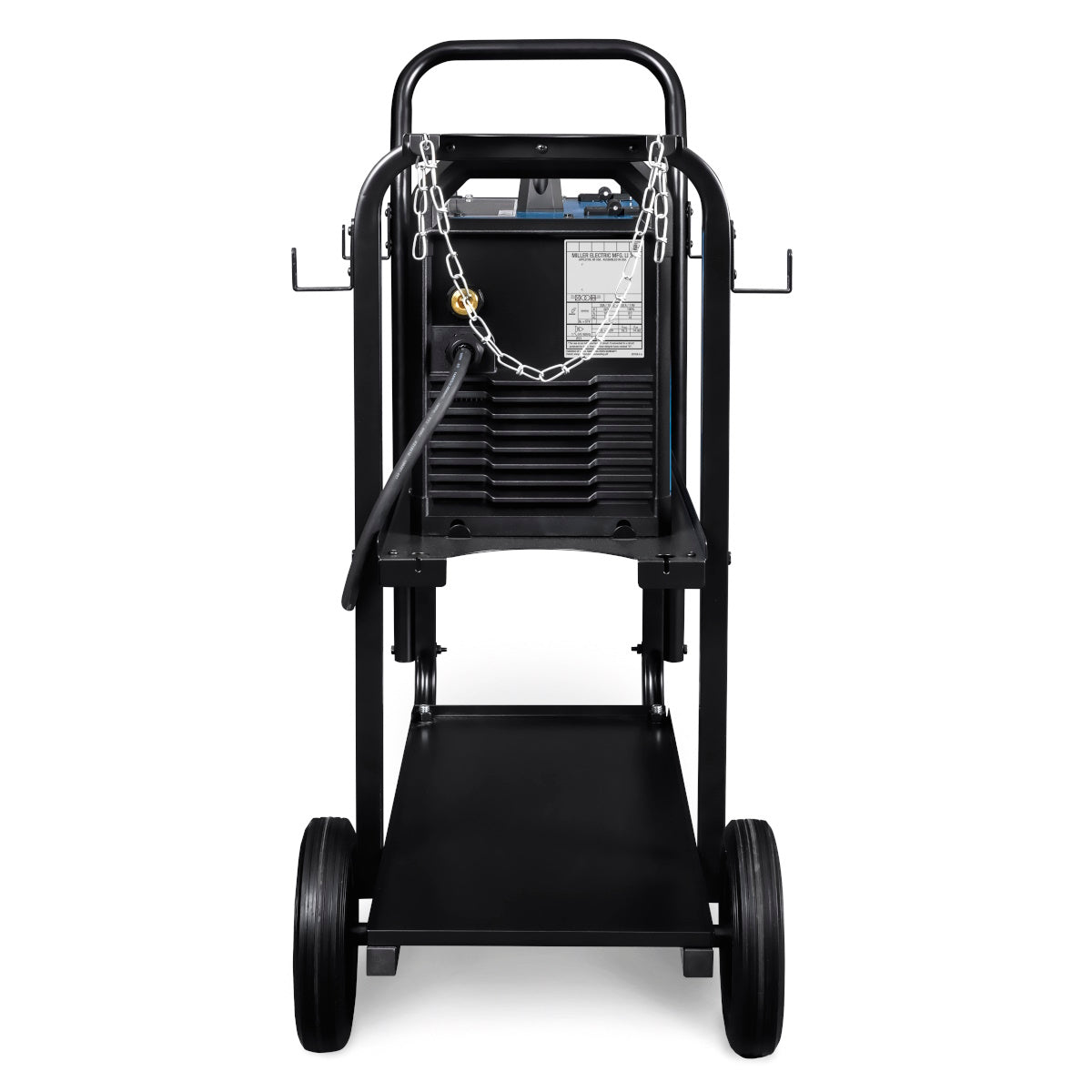

Miller Millermatic 142 MIG Welder w/Cart (951000072)
3 year warranty. 120v input power. Welds up to 3/16"
Quantity:
Download Product Spec Sheet
If you're looking for a high quality yet affordable MIG Welder, look no further than the Millermatic 142. Loaded with features, the American-made Millermatic 142 welder is easy to set up and you'll be welding in no time!
Auto-Set:
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
Manual Mode:
Gives you the flexibility to manually set the machine when welding aluminum, stainless steel or anytime you want to set your own parameters on mild steel.
Angled All Aluminum Drive System:
Robust wire drive with Quick Select drive roll and calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.
Quick Select Drive Roll:
Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
120V Input Power:
Uses 120V household input power so there is no special power requirements. Flexible to use in any location!
Smooth-Start:
This technology provides a smooth, spatter-free start. The best starting machine in the 120V MIG category! No more pop-gun starts or spatter to clean up.
Auto Spoolgun Detect:
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Thermal Overload & 'Tip Saver' Short Circuit Protection:
Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal components from damage.

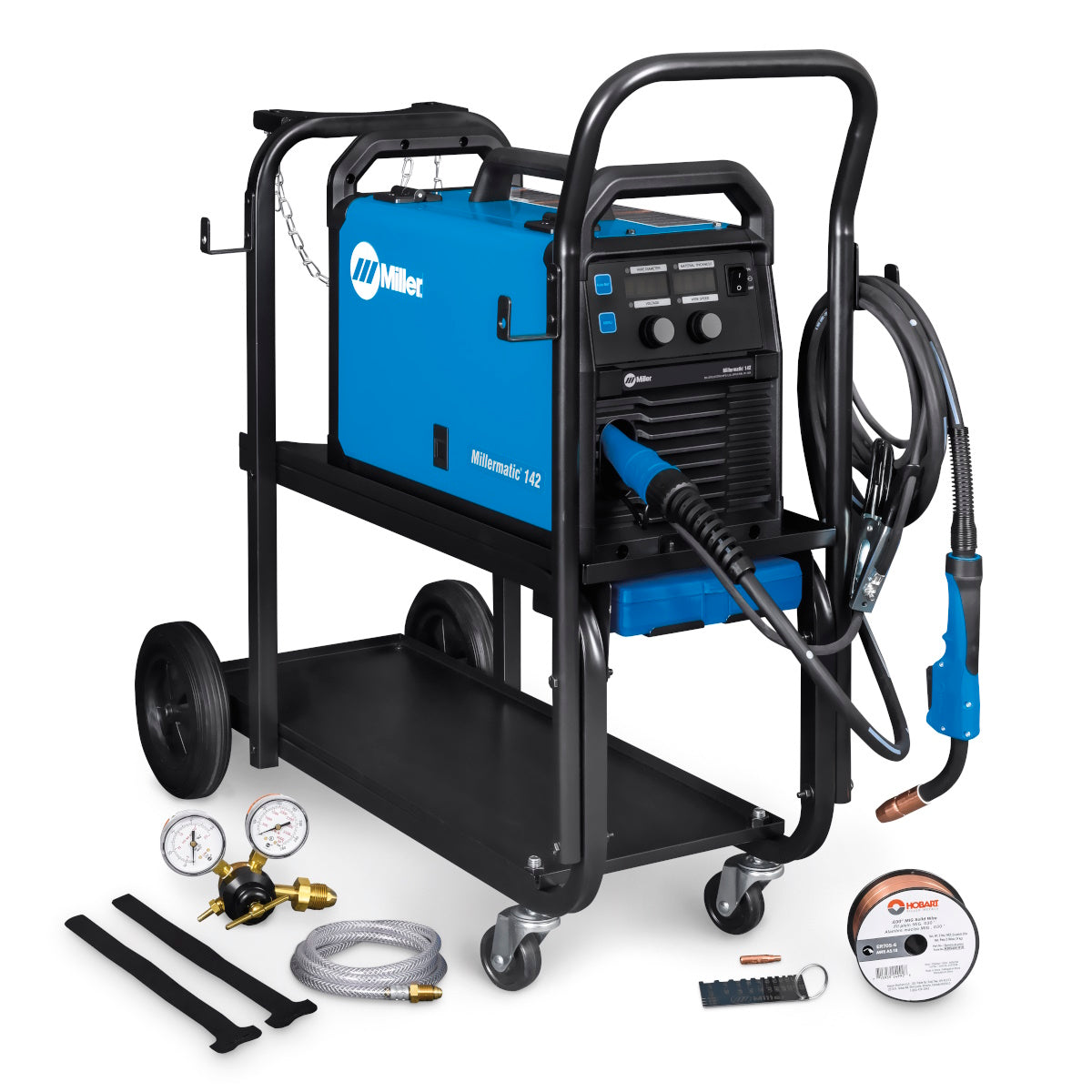

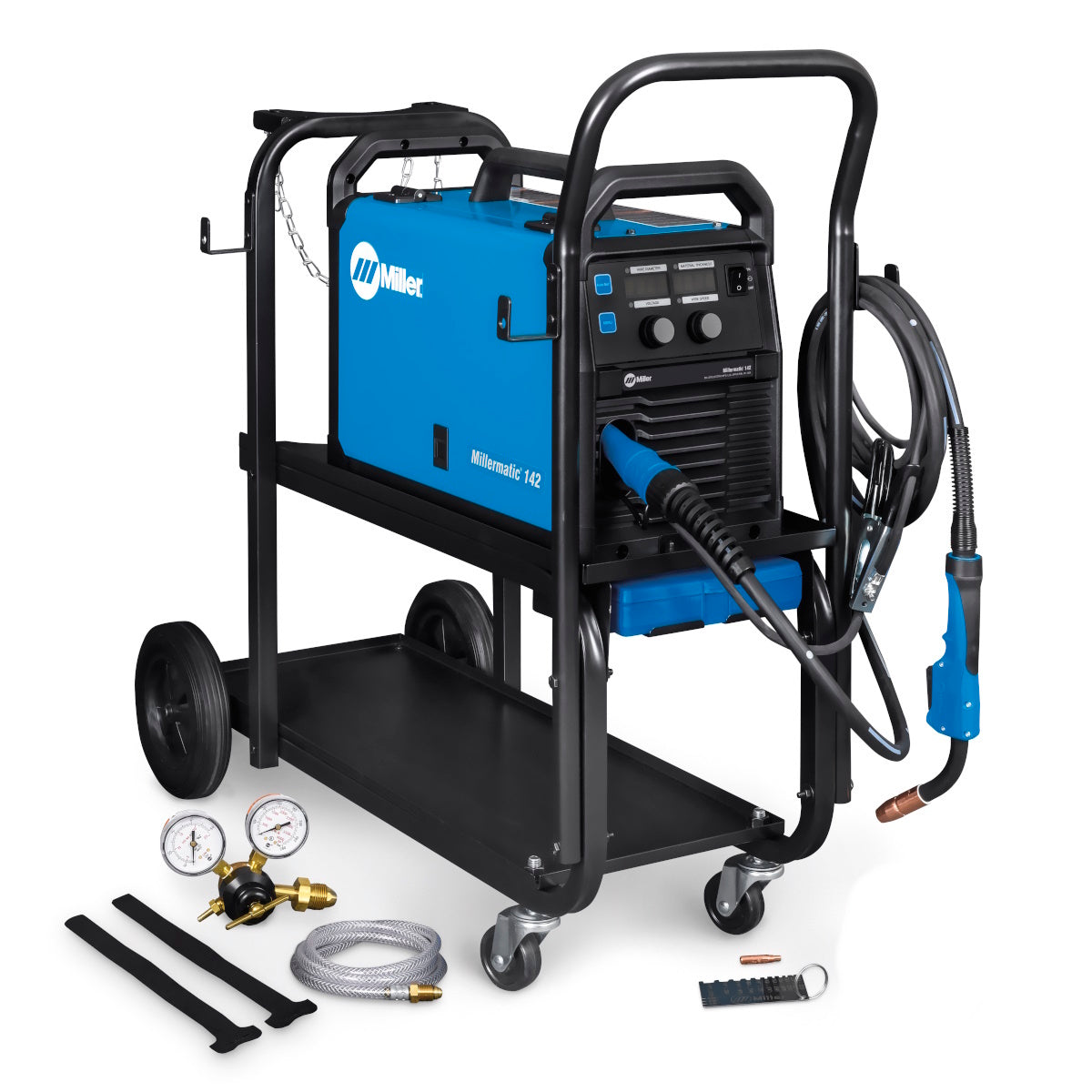

Comes Complete with:
• 142 MIG Power Source and 301239 Cart
• 10ft (3m) MDX 100 MIG Gun & Cable Assembly (Accepts Miller MDX Consumables)
• 6.5ft (2 m) power cord with plug
• 10ft (3m) work cable with clamp
• Argon and AR/CO2 mix flow gauge regulator with gas hose
• Hobart spool of .030 inch (0.8mm) solid wire
• Two contact tips for .030 inch (0.8mm) wire
• Quick Select drive rolls for .024 inch (0.6mm) or .030/.035 inch flux-cored wire
• Material thicknes gauge (229895)
• Velco cord wraps (229895)
Auto-Set:
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
Manual Mode:
Gives you the flexibility to manually set the machine when welding aluminum, stainless steel or anytime you want to set your own parameters on mild steel.
Angled All Aluminum Drive System:
Robust wire drive with Quick Select drive roll and calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.
Quick Select Drive Roll:
Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
120V Input Power:
Uses 120V household input power so there is no special power requirements. Flexible to use in any location!
Smooth-Start:
This technology provides a smooth, spatter-free start. The best starting machine in the 120V MIG category! No more pop-gun starts or spatter to clean up.
Auto Spoolgun Detect:
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Thermal Overload & 'Tip Saver' Short Circuit Protection:
Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal components from damage.
Comes Complete with:
• 142 MIG Power Source and 301239 Cart
• 10ft (3m) MDX 100 MIG Gun & Cable Assembly (Accepts Miller MDX Consumables)
• 6.5ft (2 m) power cord with plug
• 10ft (3m) work cable with clamp
• Argon and AR/CO2 mix flow gauge regulator with gas hose
• Hobart spool of .030 inch (0.8mm) solid wire
• Two contact tips for .030 inch (0.8mm) wire
• Quick Select drive rolls for .024 inch (0.6mm) or .030/.035 inch flux-cored wire
• Material thicknes gauge (229895)
• Velco cord wraps (229895)
| MPN: | MIL951000072 |
|---|---|
| UPC: | 715959704328 |
| Processes | Flux-Cored|MIG |
| Designed For | Racing Farm and Ranch Manufacturing Welding Education and Training |
| Amperage | 30 A - 140 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm) Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V |
| Input Phase | DC |
| Input Hz | 60 Hz |
| Rated Output | 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle |
| Max Open Circuit Voltage | 57 VDC |
| Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
| Wire Diameter | Stainless 0.024 in. - 0.03 in. Stainless 0.6 mm. - 0.8 mm. Solid Steel 0.6 mm. - 0.8 mm. Solid Steel 0.024 in. - 0.03 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size | 8 in. |
| Portability | Handle(s) Optional Running Gear / Optional Cart |
| Weight | 33 lb. |
| Warranty | 3 Years Miller's True Blue Warranty |
