Miller Maxstar 161 STH TIG and Stick Welder (907711)
3 year warranty. TIG up to 3/16"
Quantity:
Download Product Spec Sheet

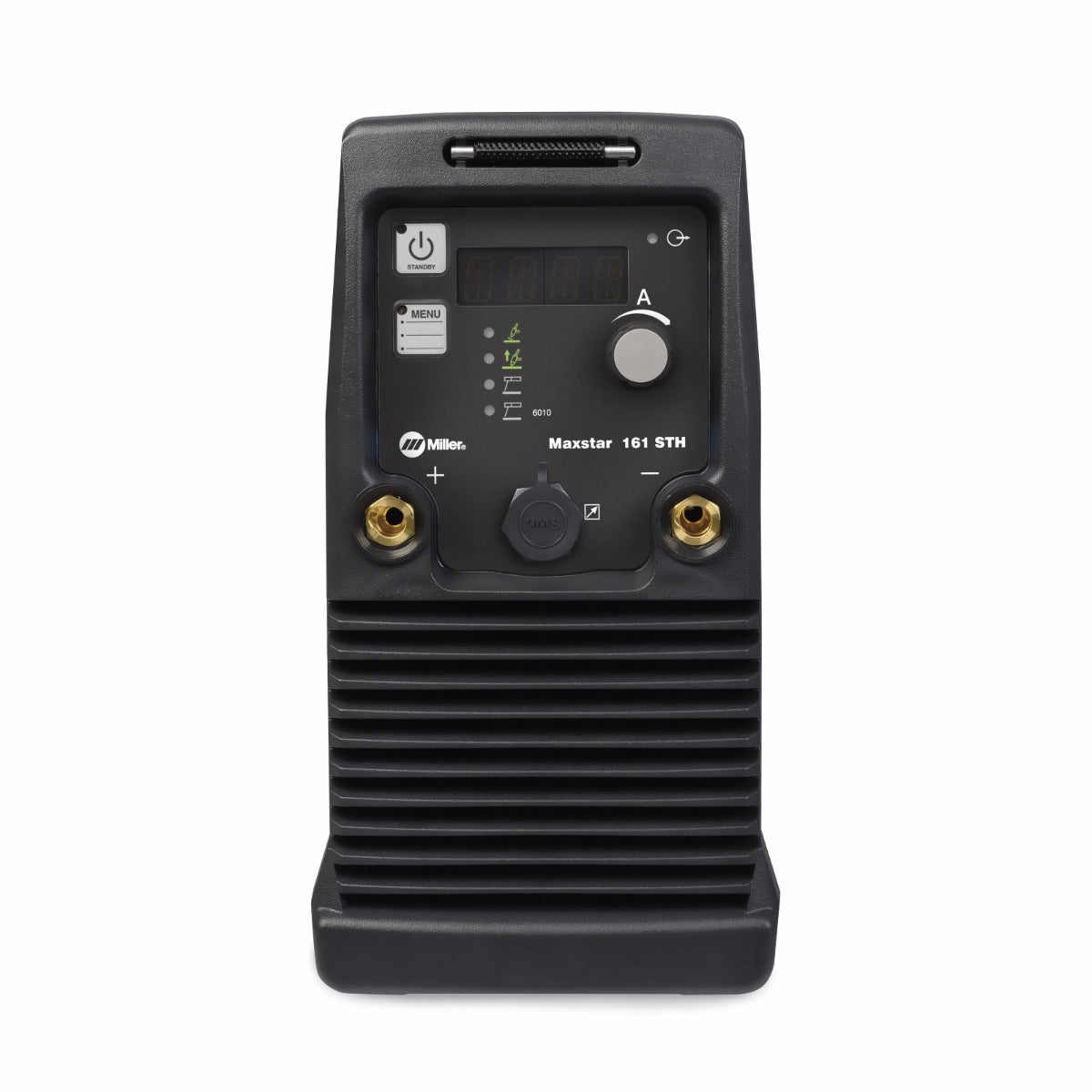

The new Miller Maxstar 161 welders now have a digital interface and feature a greater amperage range than their predecessor Maxstar 150 units. Machine setup is done in 3 easy steps - press the menu button to select your process, then hold the menu button for 1 second to access the user menu. The last step is turning the encoder to adjust your selected parameter.
The Maxstar 161 STH units are DC only and will not TIG weld aluminum. This package does NOT include a TIG torch.
New Features
• Digital meter interface
• Auto-line 120V and 240V power cords
• Pulse feature on STH models only
• Upgraded shoulder strap and handle
• Added space inside the X-Case
Quick Specs
• Stick Amperage Range: 120V - 20-90A | 240V - 20-160A
• TIG Amperage Range: 120V - 5-130A | 240V - 5-160A
• Material Thickness: .020 - 3/16 Steel | 5/32" Electrodes
• Duty Cycle: 120V - 30% at 90A | 240V - 20% at 160 amps
• Dims: 10.3 H x 5.6 W x 13.5 D
• Weight: 13lbs

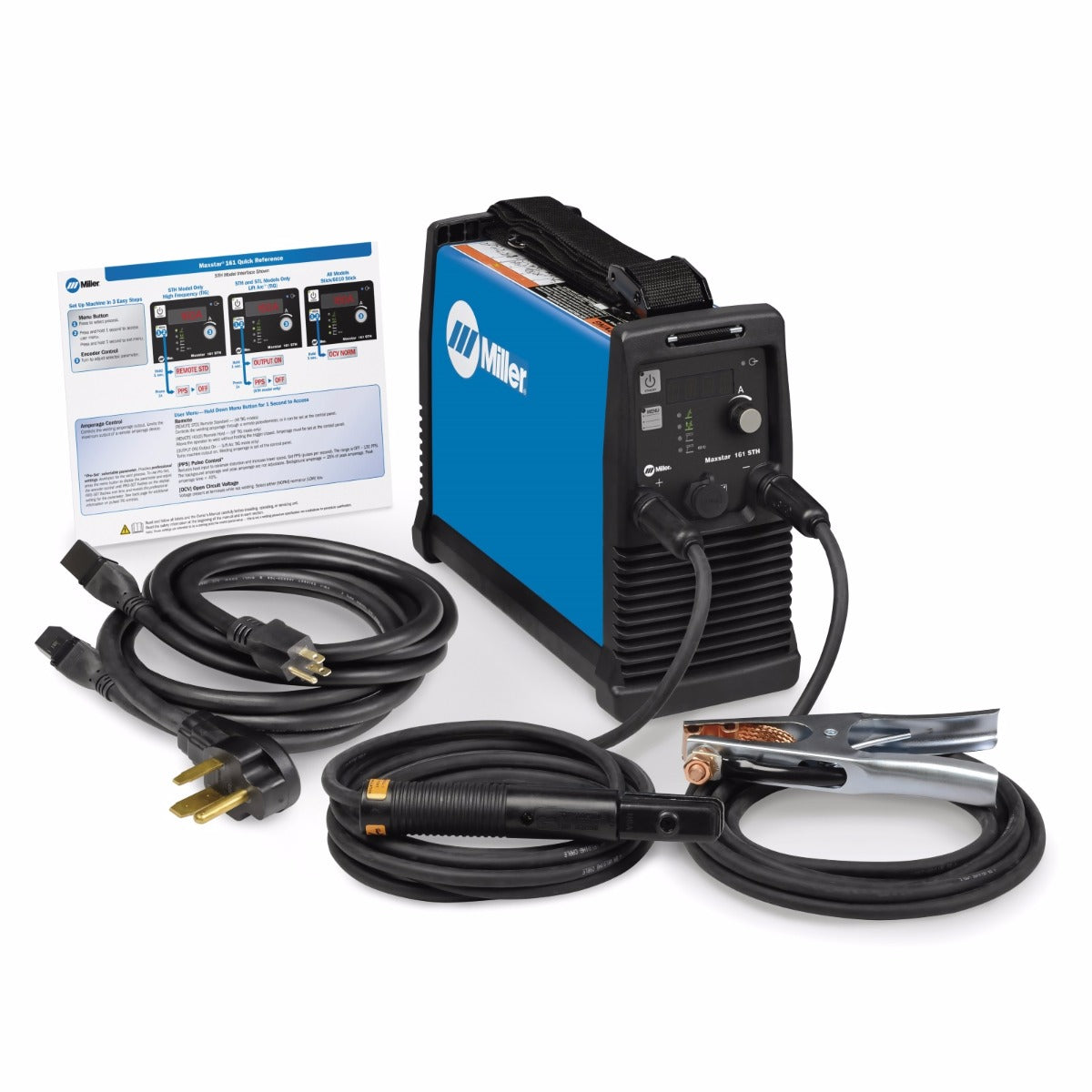

Includes
• Maxstar 161 STH power source
• 6.5ft 120V and 240V power cords
• 13ft Stick electrode holder and 25mm dinse connector
• 10ft Work clamp
• Air-cooled TIG torch connector (195234)
• Shoulder strap and handle
The Maxstar 161 STH units are DC only and will not TIG weld aluminum. This package does NOT include a TIG torch.
New Features
• Digital meter interface
• Auto-line 120V and 240V power cords
• Pulse feature on STH models only
• Upgraded shoulder strap and handle
• Added space inside the X-Case
Quick Specs
• Stick Amperage Range: 120V - 20-90A | 240V - 20-160A
• TIG Amperage Range: 120V - 5-130A | 240V - 5-160A
• Material Thickness: .020 - 3/16 Steel | 5/32" Electrodes
• Duty Cycle: 120V - 30% at 90A | 240V - 20% at 160 amps
• Dims: 10.3 H x 5.6 W x 13.5 D
• Weight: 13lbs
Includes
• Maxstar 161 STH power source
• 6.5ft 120V and 240V power cords
• 13ft Stick electrode holder and 25mm dinse connector
• 10ft Work clamp
• Air-cooled TIG torch connector (195234)
• Shoulder strap and handle
| MPN: | MIL907711 |
|---|---|
| UPC: | 715959645614 |
| Processes | Stick (SMAW) Lift-Arc™ TIG (GTAW) High-frequency TIG (GTAW)* Pulsed TIG (GTAW-P)* *STH model only |
| Designed For | Aerospace Shipbuilding Process pipe Dairy industry Food/beverage industry Restaurant/kitchen repair Experimental aircraft Shipboard installation/repair Maintenance repair |
| Amperage | 120 V: 5–130 A (DC TIG) 20–90 A (DC stick) 240 V: 5–160 A (DC TIG) 20–160 A (DC stick) |
| Material Thickness | Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm) |
| Weldable Metals | Steel Stainless Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | 120 V: 5–130 A (DC TIG) 20–90 A (DC stick) 240 V: 5–160 A (DC TIG) 20–160 A (DC stick) |
| Max Open Circuit Voltage | 48 |
| Portability | Handle(s) Strap |
| Weld Output | CC |
| Weight | 13 lb. (5.9 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
