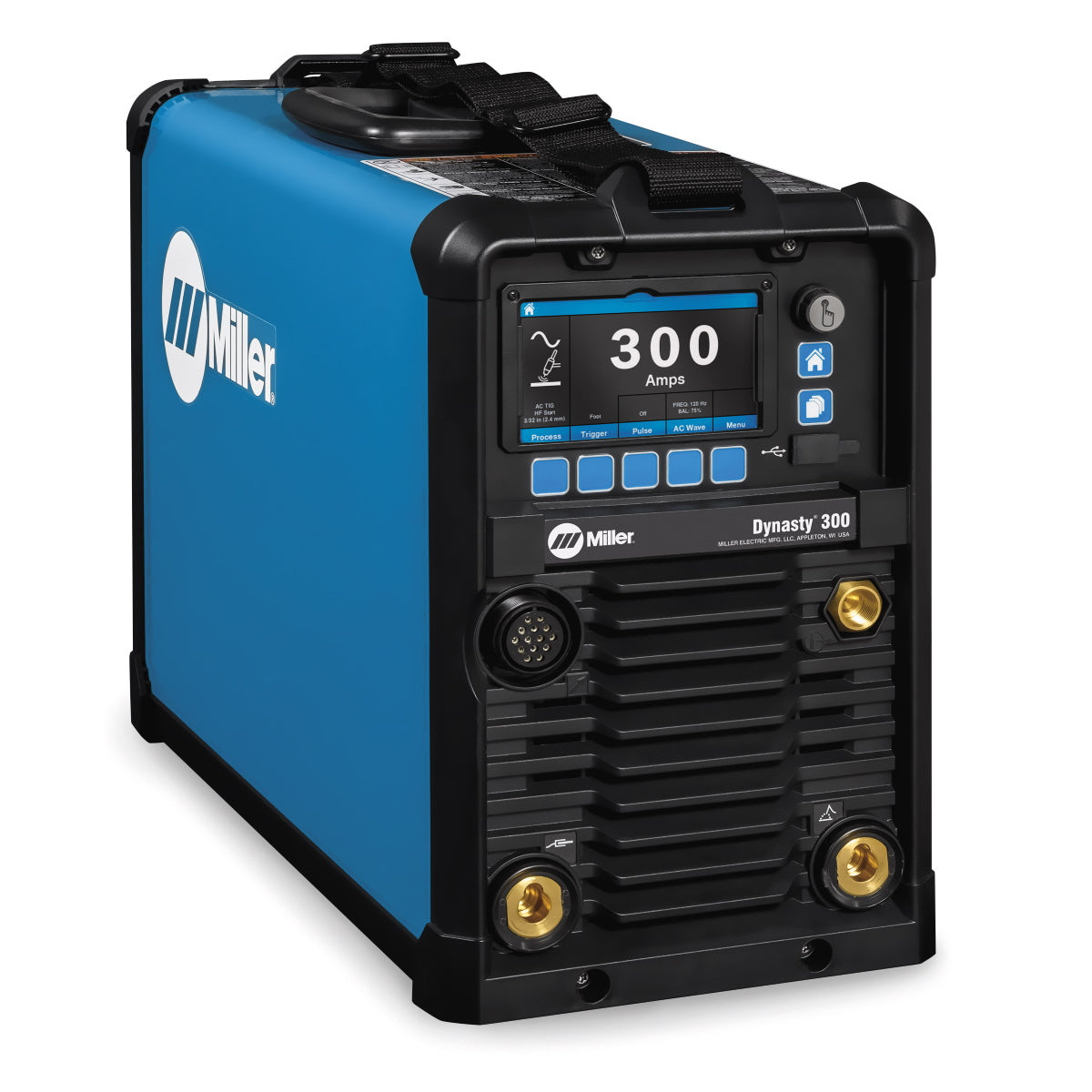

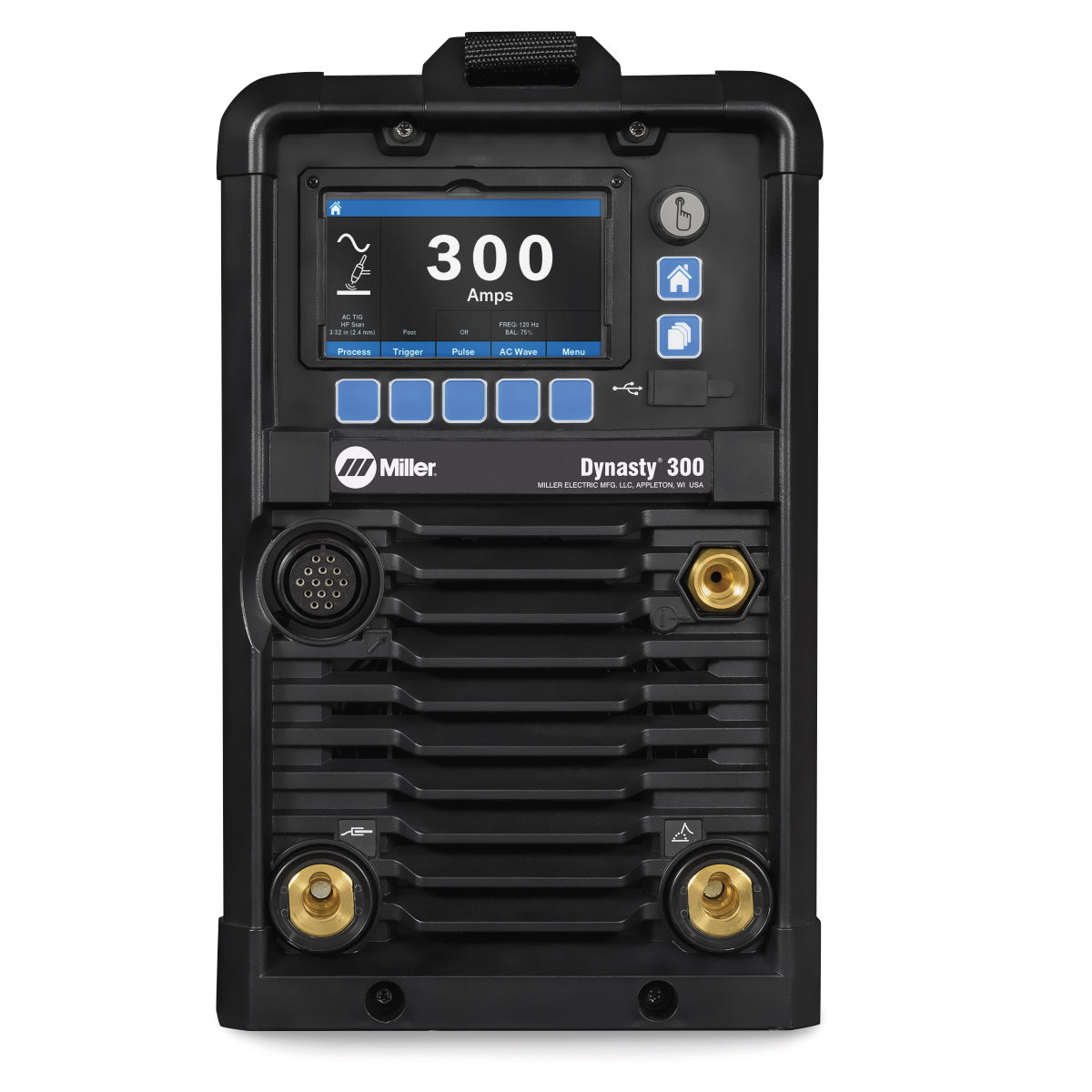

Miller Dynasty 300 TIG Welder with CPS (907818)
3 year warranty. TIG up to 3/8"
Quantity:
Download Product Spec Sheet
The Miller Dynasty 300 TIG Welder with CPS offers full AC features, including advanced waveforms and wide range of balance and frequency. The 300 is a powerful combination of capability and portability. Welding up to 3/8 inch material, the AC/DC TIG and Stick power source is a powerful, energy efficient inverter.
Upgradeable and Expandable
Front panel memory card data port provides the ability to easily upgrade software and expand product features.
Cooler Power Supply (CPS)
An integrated 120-volt dedicated-use receptacle to power the Coolmate 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure. Available on select models.
Auto-Line Power Management Technology
Allows hookup to either single-phase or three-phase electrical input from 208-600 V with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
Portable with adjustable shoulder strap
Weighing in at just 55 pounds, the Dynasty 300 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.
Pro-Set Feature (professional settings)
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Stick Features (AC/DC)
• Tailored arc control (DIG) allows the arc characteristic to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
• Hot Start adaptive control provides positive arc starts without sticking.
• Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.
Comes complete with:
• Dynasty 300 power source with CPS
• Quick Reference Guide: English
• Adjustable shoulder strap
• 8 ft(2.4m) Primary cord
• (2) Dinse 50 mm connectors
Upgradeable and Expandable
Front panel memory card data port provides the ability to easily upgrade software and expand product features.
Cooler Power Supply (CPS)
An integrated 120-volt dedicated-use receptacle to power the Coolmate 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure. Available on select models.
Auto-Line Power Management Technology
Allows hookup to either single-phase or three-phase electrical input from 208-600 V with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
Portable with adjustable shoulder strap
Weighing in at just 55 pounds, the Dynasty 300 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.
Pro-Set Feature (professional settings)
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Stick Features (AC/DC)
• Tailored arc control (DIG) allows the arc characteristic to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
• Hot Start adaptive control provides positive arc starts without sticking.
• Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.
Comes complete with:
• Dynasty 300 power source with CPS
• Quick Reference Guide: English
• Adjustable shoulder strap
• 8 ft(2.4m) Primary cord
• (2) Dinse 50 mm connectors
| MPN: | MIL907818 |
|---|---|
| UPC: | 715959698306 |
| Processes | AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) |
| Designed For | Shipbuilding Pipeline Welding Education and Training Construction and Fabrication Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
| Amperage | 1–300 A (DC) 2–300 A (AC) |
| Material Thickness | Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm) Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575/600 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 250 A at 20 V, 60% duty cycle |
| Max Open Circuit Voltage | 60 VDC |
| Portability | Handle(s) Running Gear / Cart (Standard) Strap |
| Weld Output | 250 A at 20 V, 60% duty cycle |
| Weight | 55 lb. (25 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
