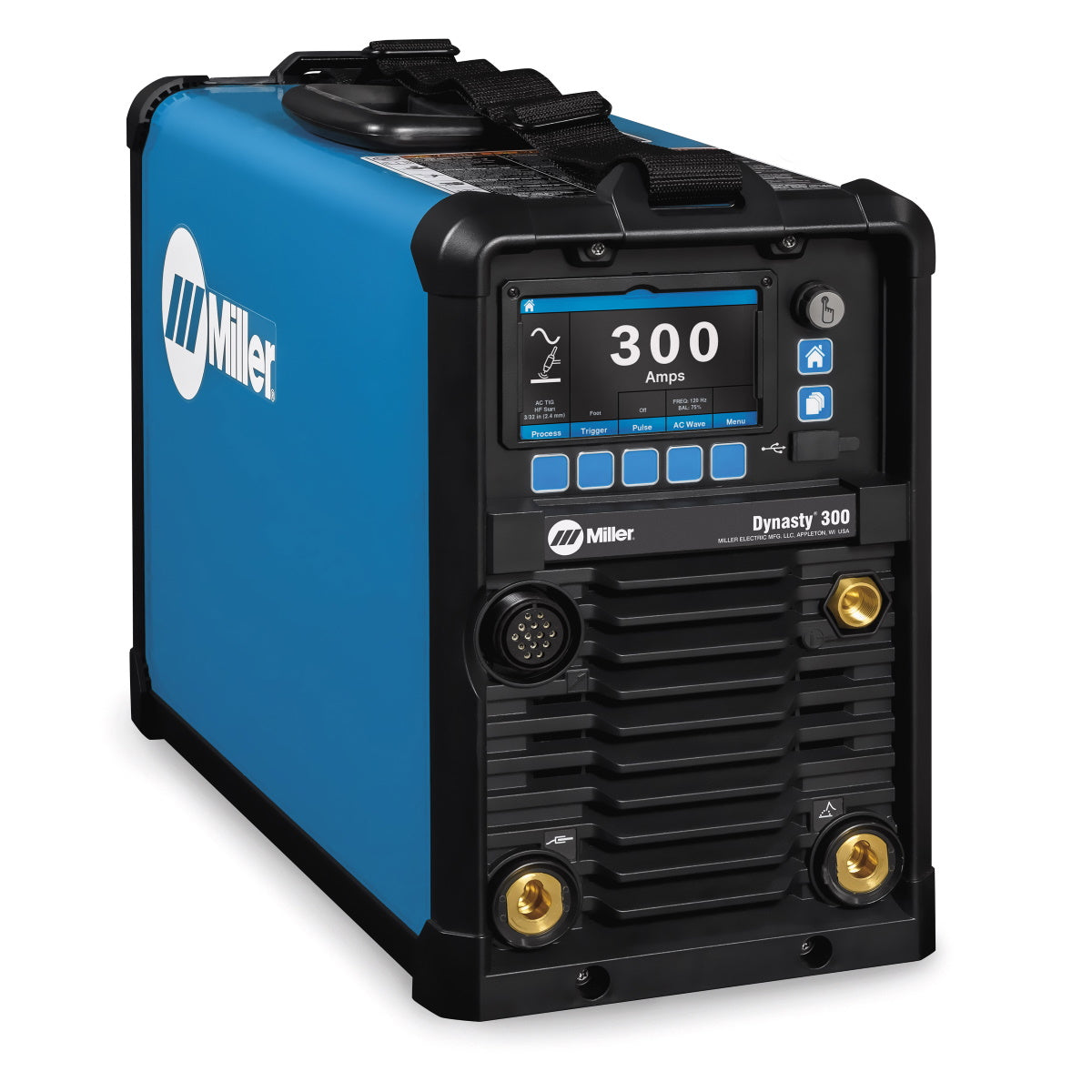

Miller Dynasty 300 CV Multiprocess Welder w/CPS TIGRunner (907819001)
3 year warranty. TIG up to 3/8"
Lead time: 3-4 Weeks
Quantity:
Download Product Spec Sheet
The Dynasty 300 with CV and CPS welder offers multiprocess capabilities and features like Auto-Line, AC TIG, pulse and high-frequency arc starts. The Dynasty 300 weighs just 55 pounds making it the most versatile, portable machine in its class.
The primary purpose of the Dynasty 300 with CV is so that the unit may be paired up with a Suitcase Feeder such as the ArcReach 8 or 12 and used for high-output wire feeding (MIG).
Processes
• AC/DC TIG
• Pulsed TIG
• Stick
• Air Carbon Arc
• MIG (With Paired Suitcase Feeder, Not Included)
Features
• Auto-Line (208-600V Hookup)
• Software Updates through USB Port
• Blue-Lightning High Frequency Arc Start
• Digital Meters
• Fan-On-Demand
• Cooler-On-Demand
• Wind Tunnel Technology
• Pro-Set Parameters
• Sleep Timer Conserves Power
• Cooler Power Supply (CPS) 120V Receptacle
Quick Specs
• Voltage: 208-600V | 1 or 3 Phase
• Amperage Range: 2-300A AC | 1-300A DC
• Duty Cycle (3-Phase): 60% @ 250A
• AC Material Thickness: 0.012-3/8"
• Weight: 55lbs
• Max Stick Electrode Size: 1/4" 6010 | 7/32" 7018 | 3/16" 7024
• Generator Requirement: 12.5 KW
Includes
• Dynasty 300 Power Source
• Coolmate 1.3 Cooler
• Small Runner Cart
• (2) 50mm Dinse Connectors
• 8 Foot Power Cord (No Plug)
• User Manual
The primary purpose of the Dynasty 300 with CV is so that the unit may be paired up with a Suitcase Feeder such as the ArcReach 8 or 12 and used for high-output wire feeding (MIG).
Processes
• AC/DC TIG
• Pulsed TIG
• Stick
• Air Carbon Arc
• MIG (With Paired Suitcase Feeder, Not Included)
Features
• Auto-Line (208-600V Hookup)
• Software Updates through USB Port
• Blue-Lightning High Frequency Arc Start
• Digital Meters
• Fan-On-Demand
• Cooler-On-Demand
• Wind Tunnel Technology
• Pro-Set Parameters
• Sleep Timer Conserves Power
• Cooler Power Supply (CPS) 120V Receptacle
Quick Specs
• Voltage: 208-600V | 1 or 3 Phase
• Amperage Range: 2-300A AC | 1-300A DC
• Duty Cycle (3-Phase): 60% @ 250A
• AC Material Thickness: 0.012-3/8"
• Weight: 55lbs
• Max Stick Electrode Size: 1/4" 6010 | 7/32" 7018 | 3/16" 7024
• Generator Requirement: 12.5 KW
Includes
• Dynasty 300 Power Source
• Coolmate 1.3 Cooler
• Small Runner Cart
• (2) 50mm Dinse Connectors
• 8 Foot Power Cord (No Plug)
• User Manual
| MPN: | MIL907819001 |
|---|---|
| UPC: | 715959698368 |
| Processes | AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) |
| Designed For | Shipbuilding Pipeline Welding Education and Training Construction and Fabrication Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
| Amperage | 1–300 A (DC) 2–300 A (AC) |
| Material Thickness | Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm) Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575/600 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 250 A at 20 V, 60% duty cycle |
| Max Open Circuit Voltage | 60 VDC |
| Portability | Handle(s) Running Gear / Cart (Standard) Strap |
| Weld Output | 250 A at 20 V, 60% duty cycle |
| Weight | 240 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
