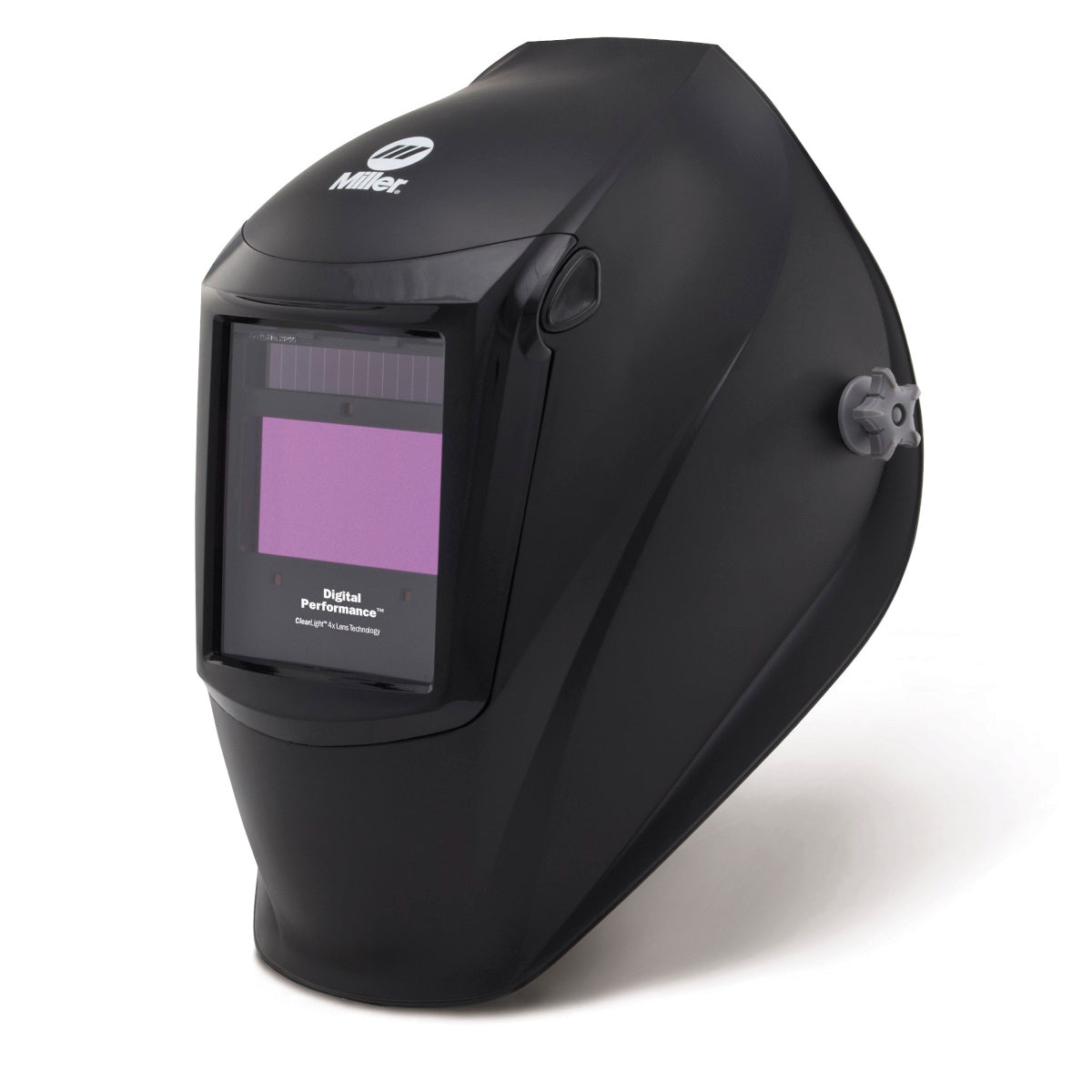

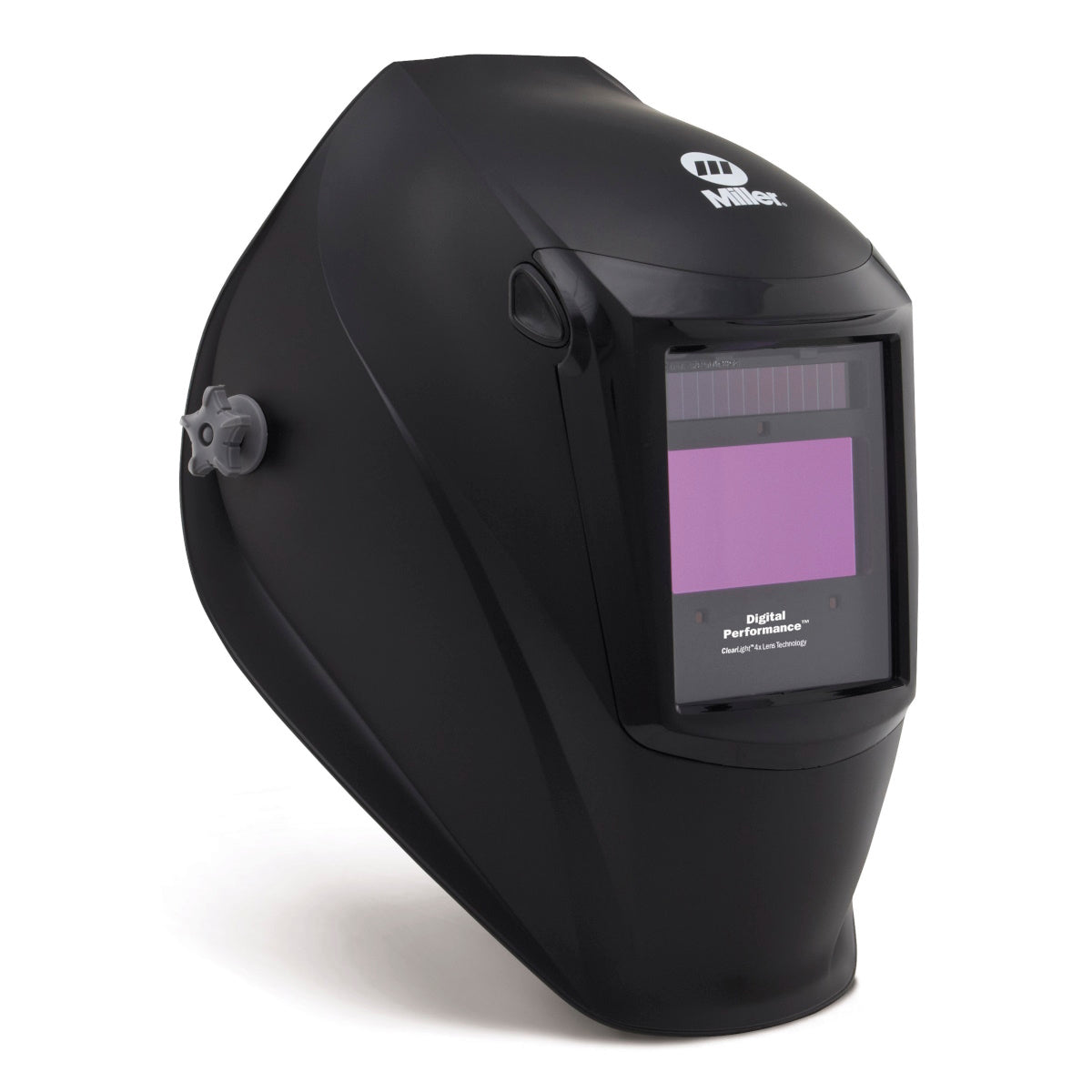

Miller Digital Performance Black Welding Helmet w/ClearLight 4X Lens (296757)
Download Product Spec Sheet
The Miller Digital Performance Series Helmet with ClearLight 4X Lens Technology offers up to four times the clarity compared to welding helmets with a 1/1/1/1 rating. The digital performance is an excellent mid-range helmet designed for most welding applications. Digital controls allow you to easily adjust the mode and settings. The redesigned headgear offers additional adjustability settings for better fit and comfort. A generous 7.22 sq. in. viewing area has three arc sensors for superior lens response.

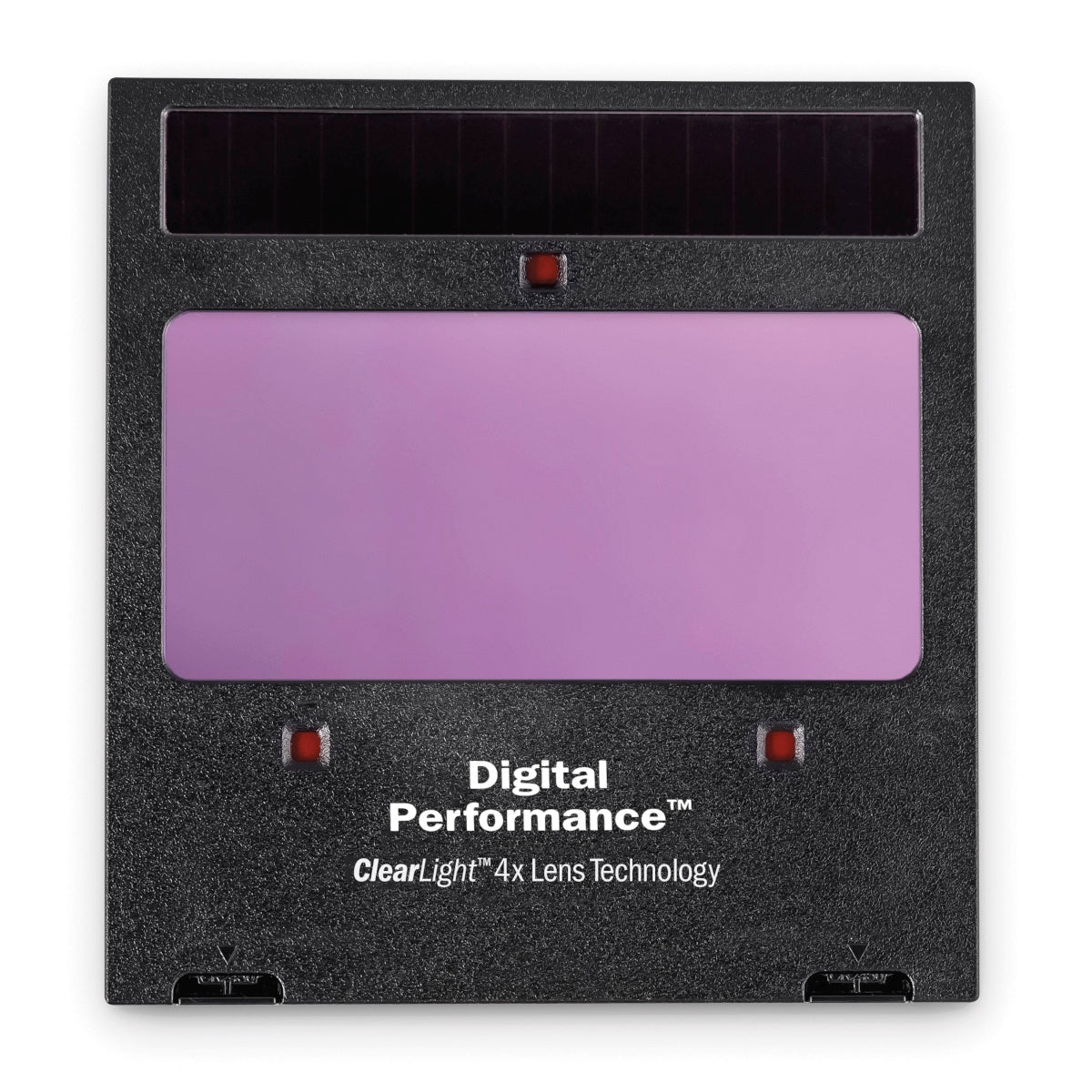

This helmet features Miller's "ClearLight 4X" lens technology. The ClearLight 4X technology provides the most advanced high-definition optics for the most realistic view that's clearer and brighter before, during, and after every weld. In a blind study, 70% of users chose the 4X lens over all others.
• AutoSense - reduces issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet sensitivity for their environment.
• Three Arc Sensors and Three Modes - weld, cut, and grind.
• Digital Controls - easily allow welder to make precise lens adjustments to shade, delay, and sensitivity.
• Half-Shade Settings - for precise lens adjustment.

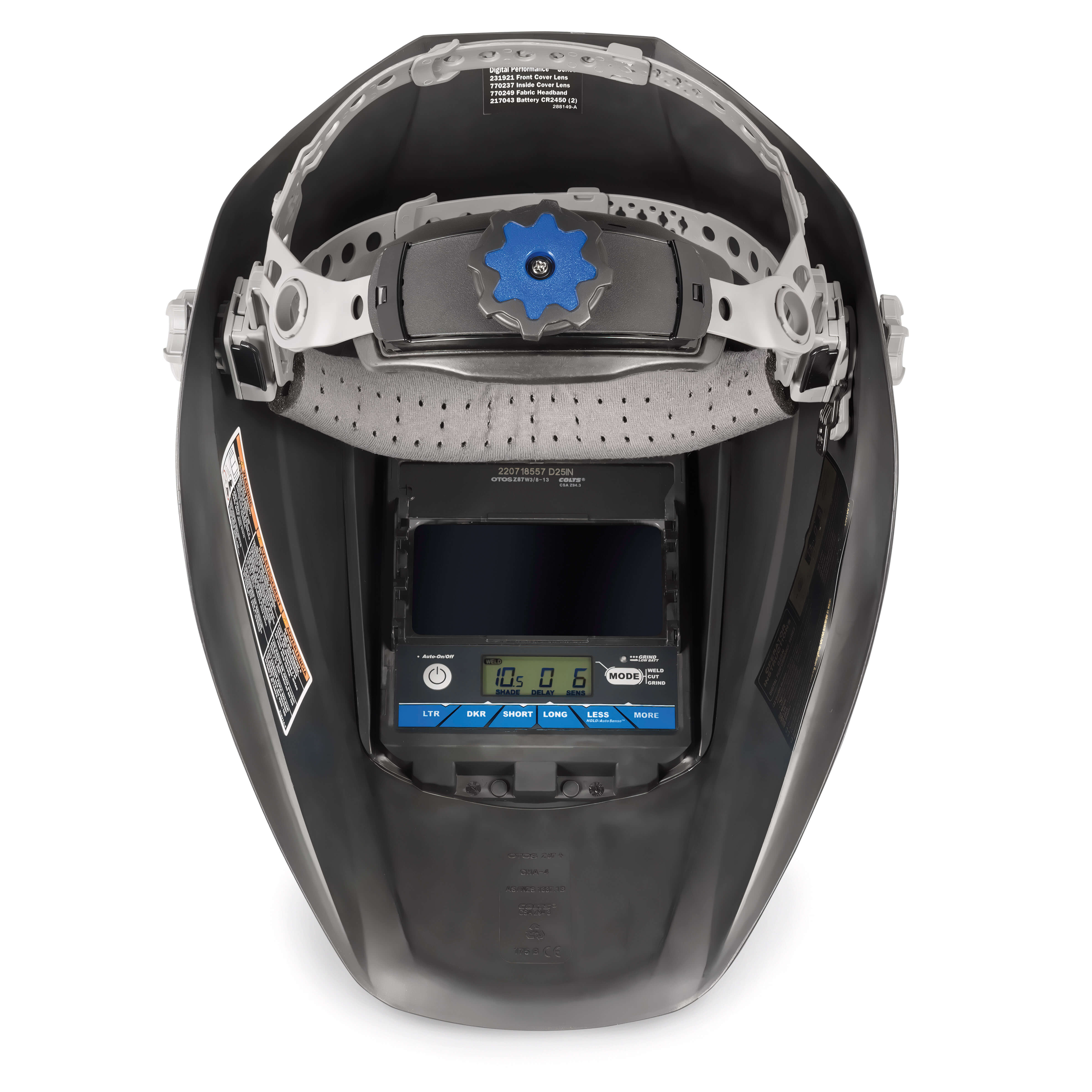

• Legacy Headgear - designed for unsurpassed comfort and stability for all-day wearability.
• 4 Year Lens Warranty
• Viewing Area – 7.22 sq in. 3.85 x 1.85 in (97 x 47 mm)
• Three Arc Sensors – 1/ 25,000 sec. lens speed
• Three Operating Modes; Weld Mode (8-13), Cut Mode (5-8), Grind Mode (Light State 3)
• Sensitivity and Delay Control - .10 – 1.0 sec
• TIG Rating - 5 Amps
• Lithium batteries (2) – with solar assist; up to 3,000 hours
• Weight - 17 oz (482g)
• Meets ANSI Z87.-2003 (High Impact) standard
Included:
• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag
| MPN: | MIL296757 |
|---|---|
| UPC: | 715959710893 |
| Weight | 16.6 oz. (471 g) |
| Warranty | Auto-darkening lens is warrantied for four years. |
| Arc Sensors | 3 |
| Delay Control | Yes |
| Digital | Yes |
| Grind Mode | Yes |
| Low Amp TIG Rated | Yes |
| Modes | Cut Grind Weld |
| Reaction Time | 1/25,000 second |
| Sensitivity Control | Yes |
| Shell Material | Nylon |
| Viewing Field | 7.2 sq. in. (46.58 sq. cm) |
