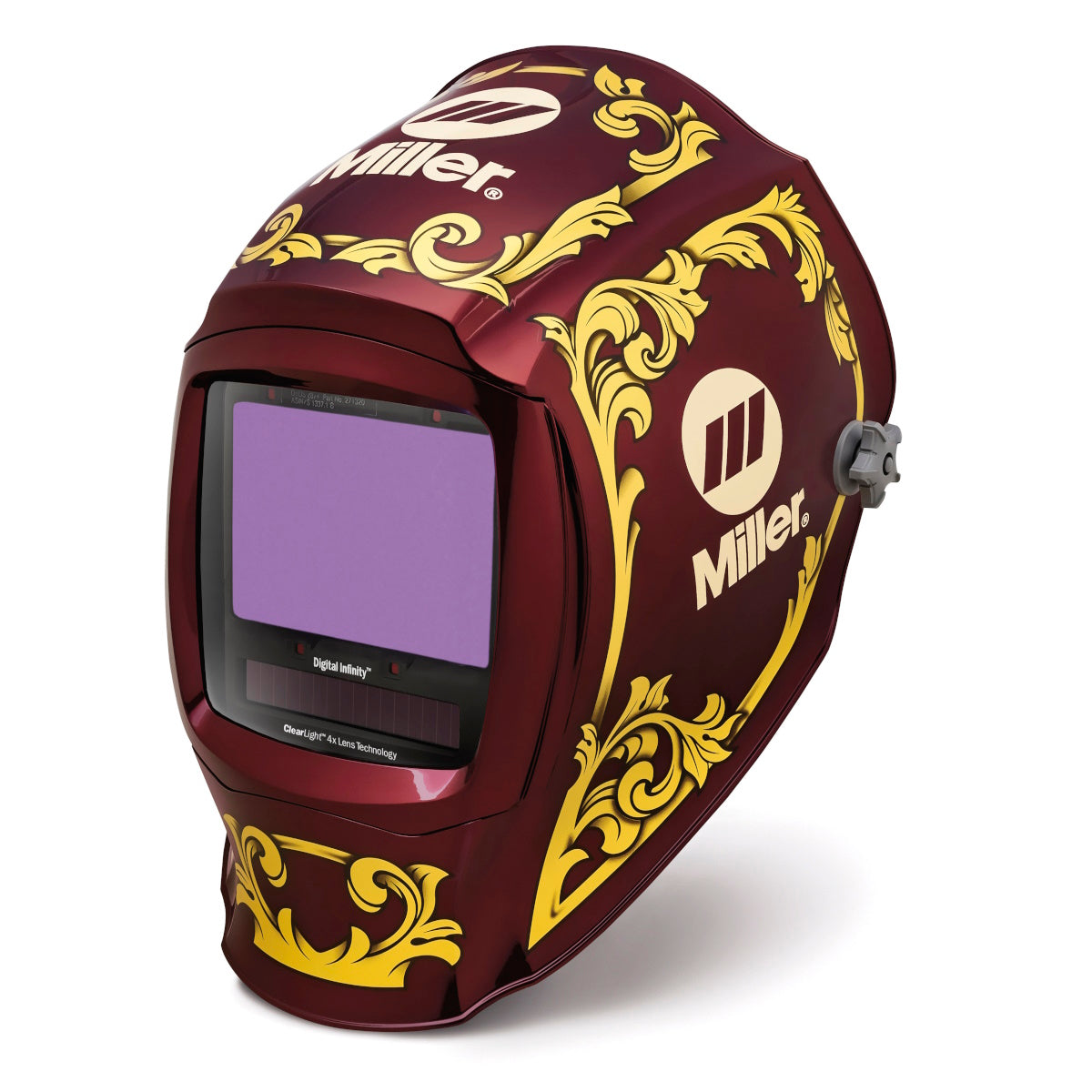

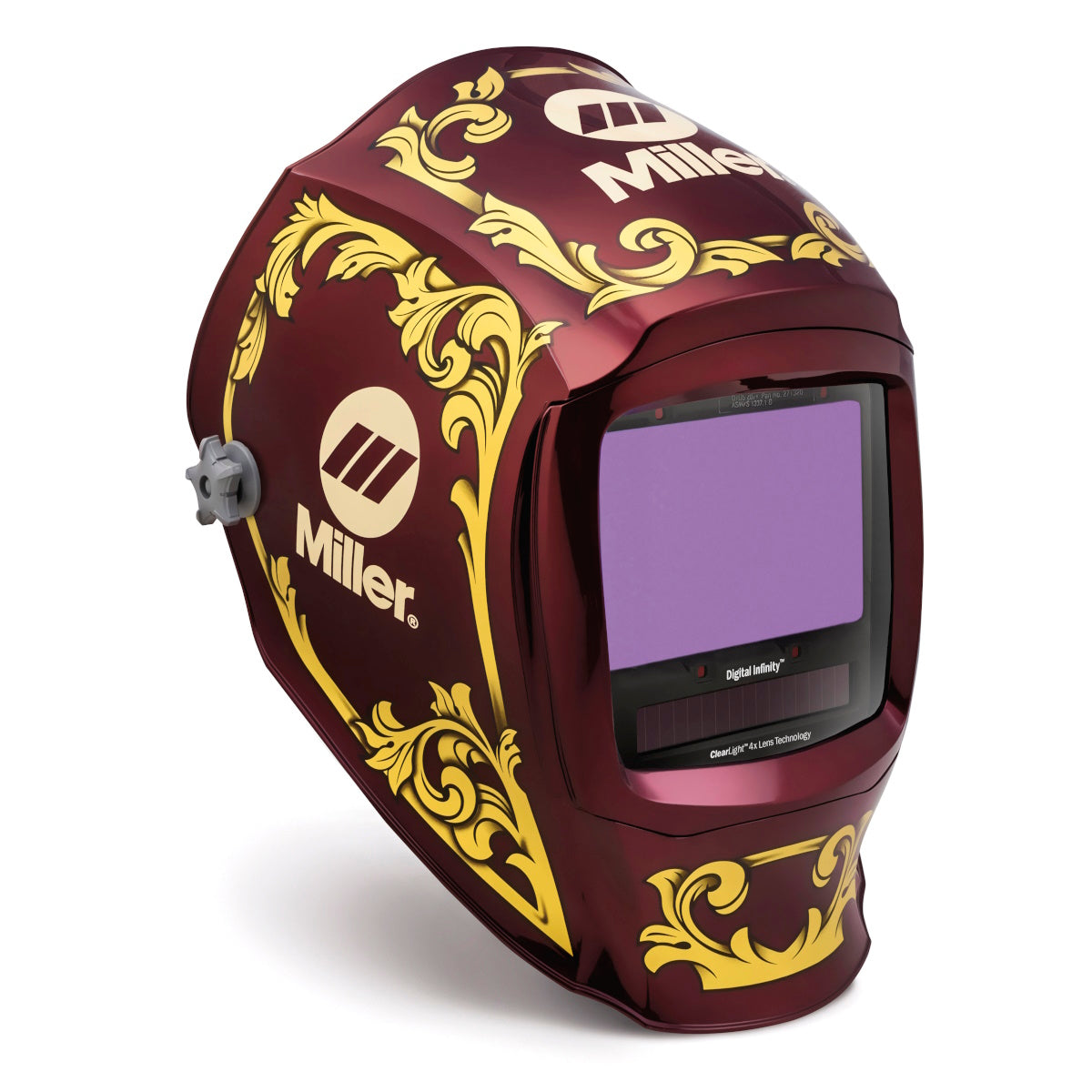

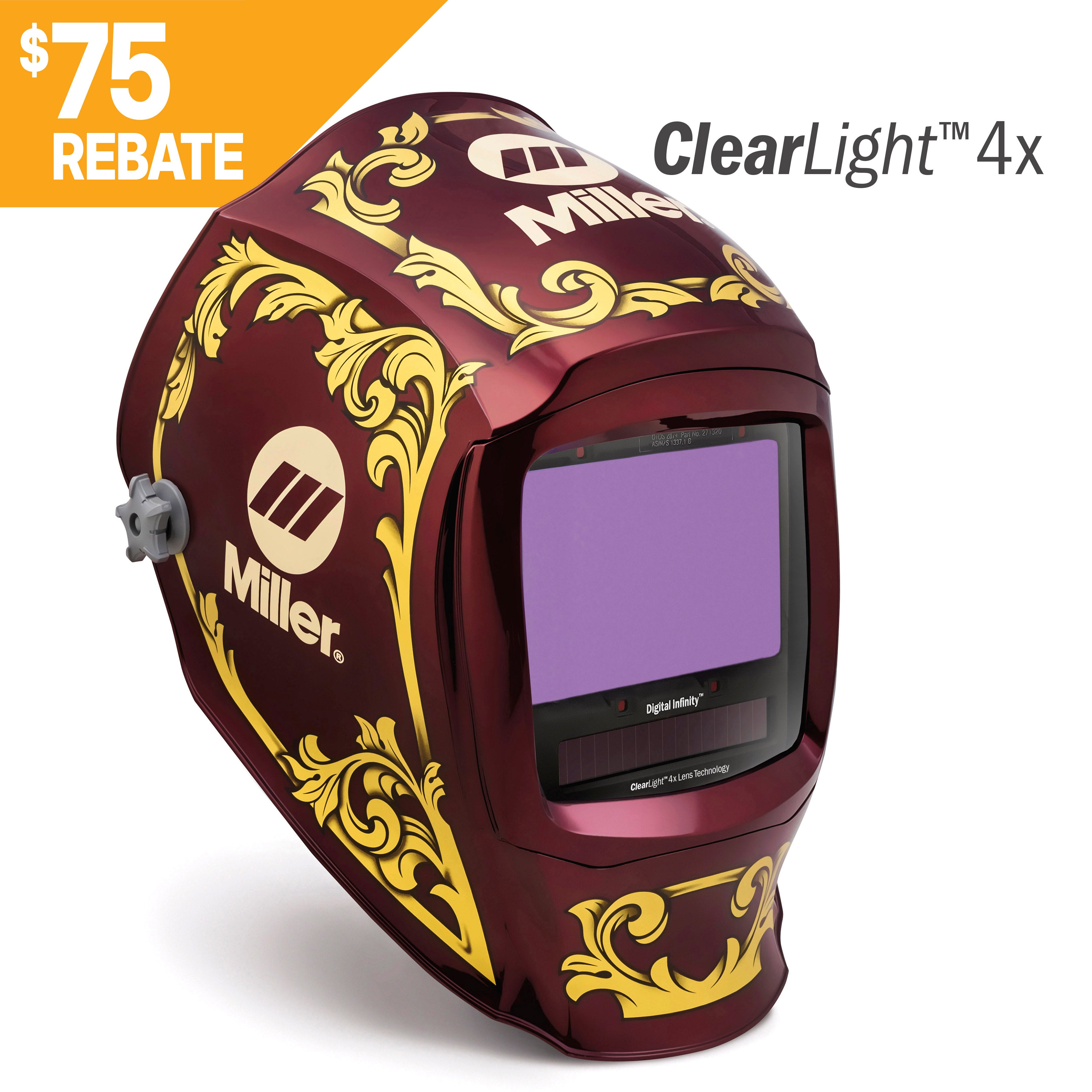

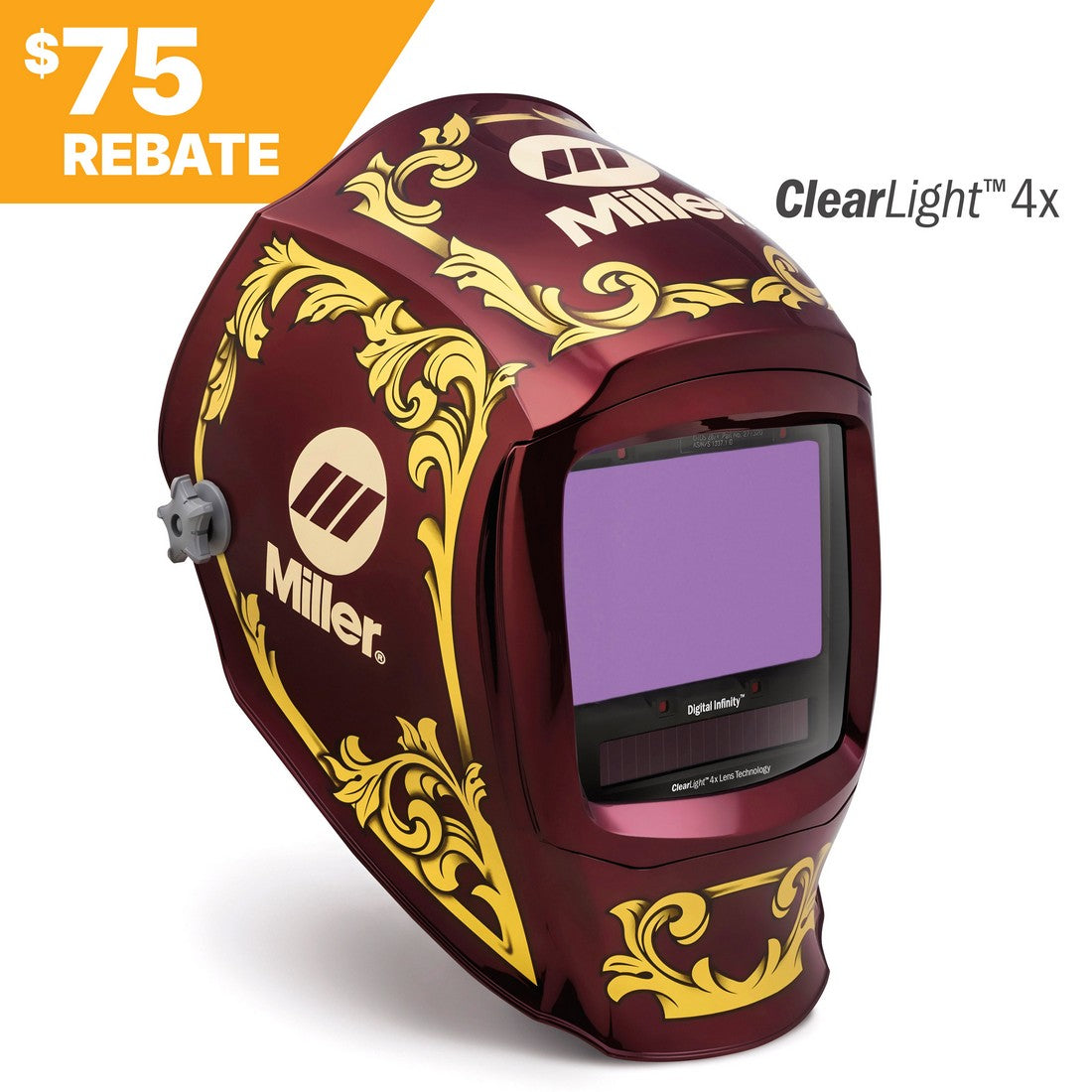

Miller Digital Infinity Imperial Welding Helmet w/ClearLight 4X Lens (296784)

Looking through the 13.4 square inch display on the Miller Imperial Digital Infinity Auto Darkening Welding Helmet with ClearLight 4X Lens Technology is like watching your brand new wide screen TV; only more entertaining. Four arc sensors and four modes (weld, cut, grind, and X-mode) ensure you're getting the most out of your hood while digital controls easily allow you to adjust shade, delay, and sensitivity.

This helmet features Miller's "ClearLight 4X" lens technology. The ClearLight 4X technology provides the most advanced high-definition optics for the most realistic view that's clearer and brighter before, during, and after every weld. In a blind study, 70% of users chose the 4X lens over all others.

• InfoTrack 2.0 - tracks and displays arc time and arc count.
• AutoSense - reduces issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet sensitivity for their environment.
• Four Arc Sensors and Four Modes - weld, cut, grind, and X-mode. X-Mode electromagnetically senses the weld to reduce sunlight interference and continuously detects the arc even if sensors are blocked.
• Digital Controls - easily allow welder to make precise lens adjustments to shade, delay, and sensitivity.
• Memory Function - for easy switching between two preset customized memory settings.
• Half-Shade Settings - for precise lens adjustment.
• Legacy Headgear - designed for unsurpassed comfort and stability for all-day wearability.
• 4 Year Lens Warranty

• Viewing Area – 13.4 sq in. (86.45 sq. cm)
• Four Arc Sensors – 1/ 25,000 sec. lens speed
• Four Operating Modes; Weld Mode (8-13), Cut Mode (5-8), Grind Mode (Light State 2.5), X-Mode (can be used in Shades 8-13)
• Sensitivity and Delay Control - .10 – 1.0 sec
• TIG Rating - 5 Amps and below
• Lithium batteries (2) – with solar assist; up to 3,000 hours
• Weight - 21.4 oz (606 g)
• Meets ANSI Z87.-2003 (High Impact) standard

Included:
• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag
• Mag Lens Adapter

MPN: MIL296784

UPC: 715959711111

Download Product Spec Sheet
