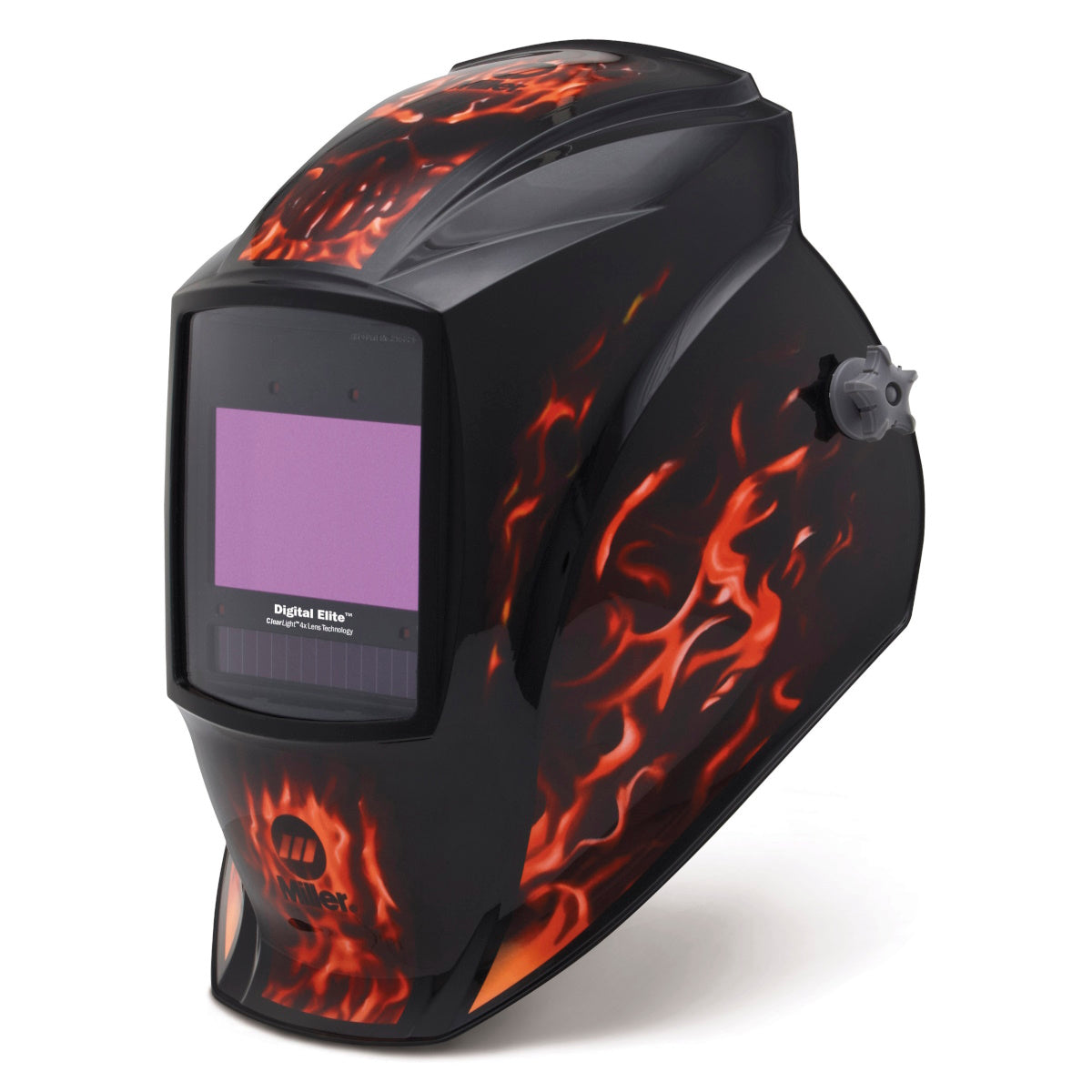

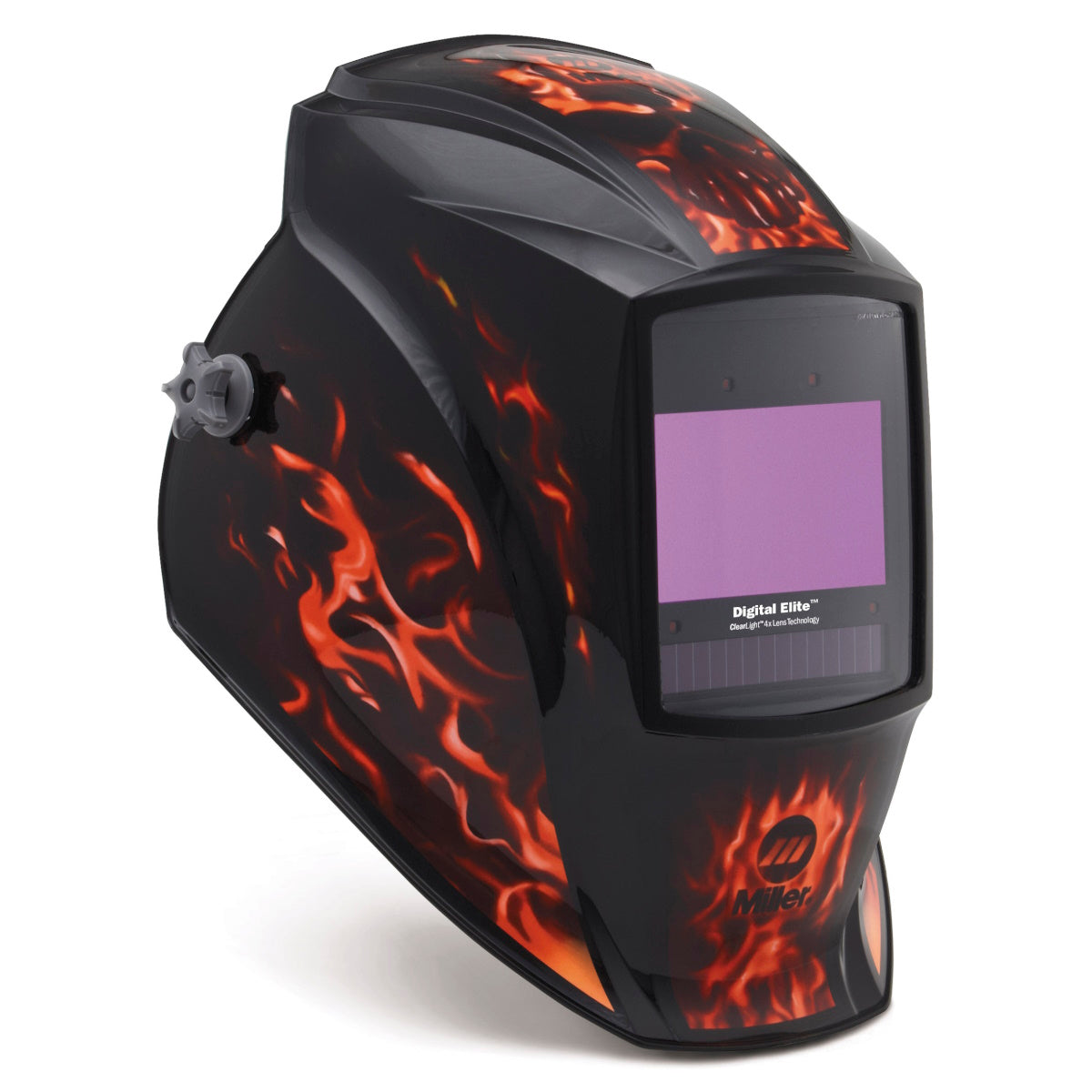

Miller Digital Elite Inferno Welding Helmet w/ClearLight 4X Lens (296772)

The Miller Digital Elite Series Helmet with ClearLight 4X Lens Technology offers up to four times the clarity compared to welding helmets with a 1/1/1/1 rating. The digital elite is the professional's choice for the ultimate Welding Helmet offering four modes of digital versatility for most welding and cutting applications. Improved digital controls allow you to easily adjust the mode and settings. The redesigned headgear offers additional adjustability settings for better fit and comfort. A large 9.22 sq. in. viewing area has four arc sensors for superior lens response.

This helmet features Miller's "ClearLight 4X" lens technology. The ClearLight 4X technology provides the most advanced high-definition optics for the most realistic view that's clearer and brighter before, during, and after every weld. In a blind study, 70% of users chose the 4X lens over all others.

• InfoTrack 2.0 - tracks and displays arc time and arc count.
• AutoSense - reduces issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet sensitivity for their environment.
• Four Arc Sensors and Four Modes - weld, cut, grind, and X-mode. X-Mode electromagnetically senses the weld to reduce sunlight interference and continuously detects the arc even if sensors are blocked.
• Digital Controls - easily allow welder to make precise lens adjustments to shade, delay, and sensitivity.
• Memory Function - for easy switching between two preset customized memory settings.
• Half-Shade Settings - for precise lens adjustment.
• Legacy Headgear - designed for unsurpassed comfort and stability for all-day wearability.
• 4 Year Lens Warranty

• Viewing Area – 9.2 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)
• Four Arc Sensors – 1/ 25,000 sec. lens speed
• Four Operating Modes; Weld Mode (8-13), Cut Mode (5-8), Grind Mode (Light State 2.5), X-Mode (can be used in Shades 8-13)
• Sensitivity and Delay Control - .10 – 1.0 sec
• TIG Rating - 5 Amps and below
• Lithium batteries (2) – with solar assist; up to 3,000 hours
• Weight - 17.5 oz (495g)
• Meets ANSI Z87.-2003 (High Impact) standard

Included:
• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag

MPN: MIL296772

UPC: 715959711043

Download Product Spec Sheet
