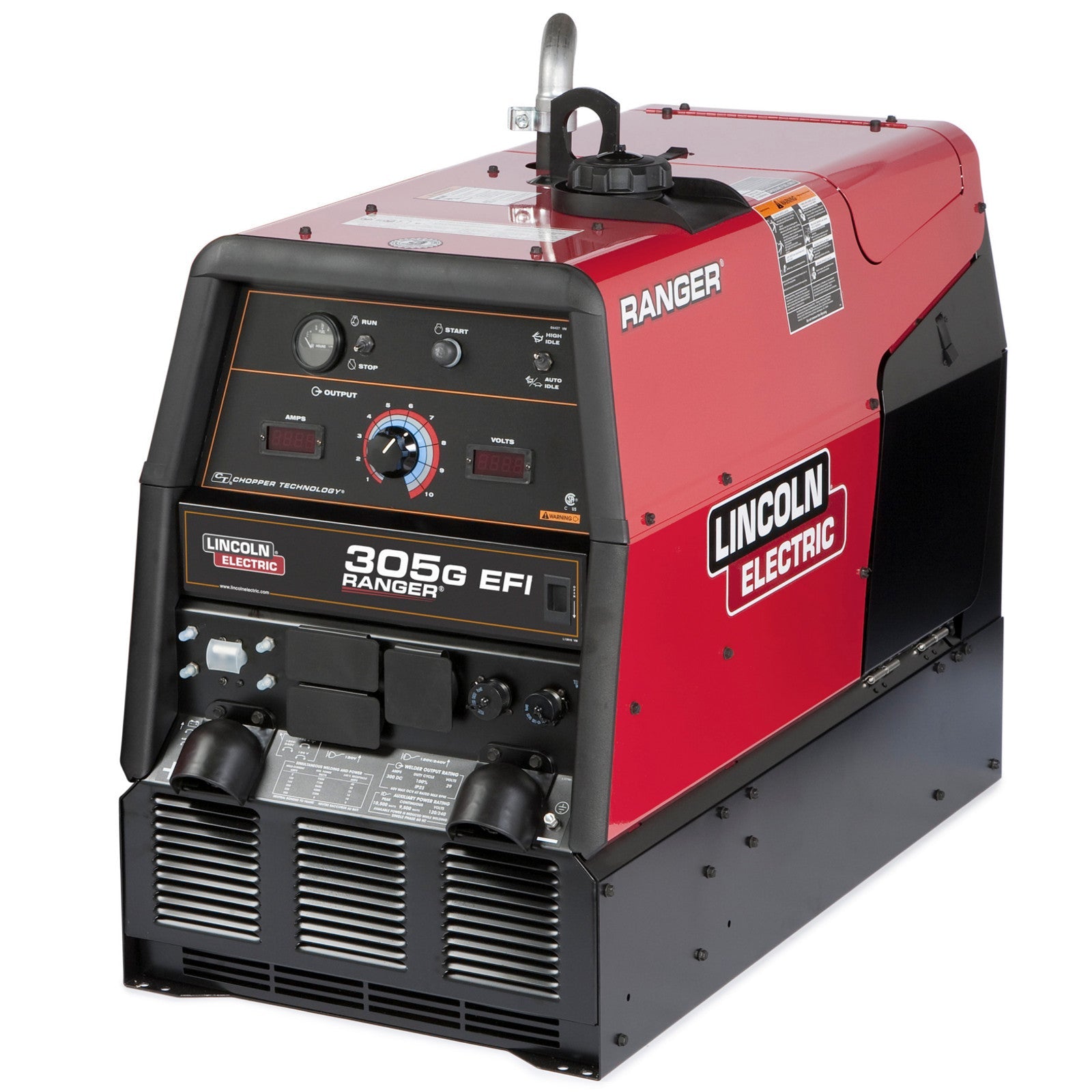

Lincoln Ranger 305G Welder Generator w/ EFI (K3928-1)
Download Product Spec Sheet
A powerful multiprocess MIG, TIG, Stick, Flux-Cored and Gouging machine, the Lincoln Ranger 305G Welder Generator w/EFI is ready to take one anything you can throw at it. The EFI (Electronic Fuel Injection) is a great feature of this machine, making sure it starts in cold weather.
Kohler Gasoline Engine:
• 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather.
• Lower fuel use
• Electric fuel pump to avoid vapor lock at high altitude operation.
Multi-Process Welding
• Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
• Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
• CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
Digital Weld Meters
• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
Superior Arc Performance
• Lincoln Chopper Technology provides easy starts, a smooth arc, low spatter and excellent bead appearance.
Peak Single-Phase AC Generator Power for Motor Starting
• 10,500 watts peak for motor starting
• 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Invertec inverter welder. Also use for lights, a grinder or other power tools.
• AC generator voltage is constant at 120V or 240V at any weld dial setting.
Skewed Rotor Design
• Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources. Lincoln Electric was the first in the welding industry with this feature.
Rugged Reliability
• Welding and AC Generator Outputs rated at 104°F (40°C).
Key Features:
• Kohler Gasoline Engine - 23 HP carburetor.
• Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
• Digital Weld Meters - makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance - Lincoln Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• Peak Single-Phase AC Generator Power for Motor Starting - 12,000 watts peak for motor starting.
• 9,500 watts continuous for high capacity needs.
Kohler Gasoline Engine:
• 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather.
• Lower fuel use
• Electric fuel pump to avoid vapor lock at high altitude operation.
Multi-Process Welding
• Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
• Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
• CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
Digital Weld Meters
• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
Superior Arc Performance
• Lincoln Chopper Technology provides easy starts, a smooth arc, low spatter and excellent bead appearance.
Peak Single-Phase AC Generator Power for Motor Starting
• 10,500 watts peak for motor starting
• 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Invertec inverter welder. Also use for lights, a grinder or other power tools.
• AC generator voltage is constant at 120V or 240V at any weld dial setting.
Skewed Rotor Design
• Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources. Lincoln Electric was the first in the welding industry with this feature.
Rugged Reliability
• Welding and AC Generator Outputs rated at 104°F (40°C).
Key Features:
• Kohler Gasoline Engine - 23 HP carburetor.
• Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
• Digital Weld Meters - makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance - Lincoln Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• Peak Single-Phase AC Generator Power for Motor Starting - 12,000 watts peak for motor starting.
• 9,500 watts continuous for high capacity needs.
| MPN: | LINK3928-1 |
|---|---|
| UPC: | 015082565606 |
