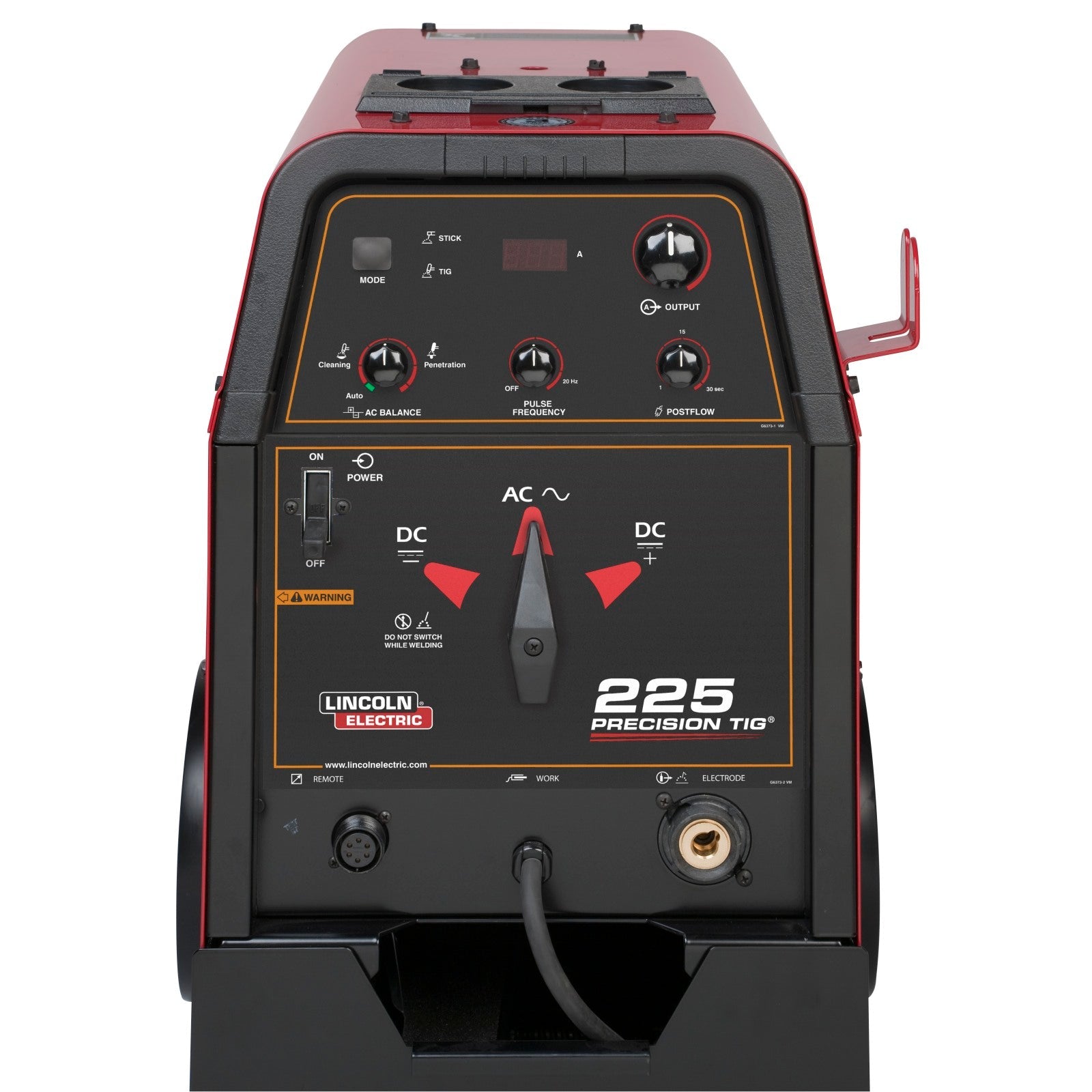

Lincoln Precision TIG 225 Ready Pak (K2535-1)
Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG® 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.
Lead time: 1-2 Weeks
Quantity:
Download Product Spec Sheet
Features Professional welders require, like auxiliary power and the widest output range in its class, make the Precision TIG 225 a great value.
5-230 amps is the widest welding range in its class.
Patented Micro-Start II Technology delivers extremely stable low amperage starting, welding and cratering for AC and DC welding.
FREE TIG Pulser – Optimal heat input control results in reduced warping and burn-through on thin materials and improved appearance.
Excellent Stick Welder – even with Fleetweld 5P (E6010).
AC Auto Balance automatically sets the optimal cleaning vs. penetration levels for great looking aluminum welds.
Standard NEMA 6-50 plug on 9 ft. (2.7 m) input power cord with receptacle. (208/230 volt models only).115 volt auxiliary power receptacles with 20 amp service reliably powers water coolers or other tools (208/230V model only, all other models 6 amps).
Standard torch parts storage compartment and cable hanger keeps you organized.
Ready-Pak models include a Pro-Torch PTA-17 air-cooled 150 amp torch with 12.5 ft. (3.8 m) Ultra-Flex cable.
Fan-As-Needed (F.A.N.) prevents overheating. F.A.N. reduces power consumption noise, motor wear and dust in the machine.
CSA C/US certified.
Includes:
• Precision TIG 225 (208/230/1/60)
• Torch Parts Storage Compartment
• Torch Hanger
• 10 ft. (3.0 m) Work Cable & Clamp
• Removable Lift Eye
• 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
• NEMA 6-50R Receptacle
• TIG Procedure Guide
• GTAW (TIG) Handbook
PTA-17 One-Piece TIG Torch includes:
• 12 ft. (3.6 m) Ultra-Flex Cable
• Twist Mate Adapter
• 3/32 in. (2.4 mm) 2% Thoriated Tungsten
• Collet & Collet Body
• 7/16 in. (11.1 mm) Alumina Nozzle
• Long Back Cap
• Gas Regulator with Hose
• Foot Amptrol (K870)
5-230 amps is the widest welding range in its class.
Patented Micro-Start II Technology delivers extremely stable low amperage starting, welding and cratering for AC and DC welding.
FREE TIG Pulser – Optimal heat input control results in reduced warping and burn-through on thin materials and improved appearance.
Excellent Stick Welder – even with Fleetweld 5P (E6010).
AC Auto Balance automatically sets the optimal cleaning vs. penetration levels for great looking aluminum welds.
Standard NEMA 6-50 plug on 9 ft. (2.7 m) input power cord with receptacle. (208/230 volt models only).115 volt auxiliary power receptacles with 20 amp service reliably powers water coolers or other tools (208/230V model only, all other models 6 amps).
Standard torch parts storage compartment and cable hanger keeps you organized.
Ready-Pak models include a Pro-Torch PTA-17 air-cooled 150 amp torch with 12.5 ft. (3.8 m) Ultra-Flex cable.
Fan-As-Needed (F.A.N.) prevents overheating. F.A.N. reduces power consumption noise, motor wear and dust in the machine.
CSA C/US certified.
Includes:
• Precision TIG 225 (208/230/1/60)
• Torch Parts Storage Compartment
• Torch Hanger
• 10 ft. (3.0 m) Work Cable & Clamp
• Removable Lift Eye
• 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
• NEMA 6-50R Receptacle
• TIG Procedure Guide
• GTAW (TIG) Handbook
PTA-17 One-Piece TIG Torch includes:
• 12 ft. (3.6 m) Ultra-Flex Cable
• Twist Mate Adapter
• 3/32 in. (2.4 mm) 2% Thoriated Tungsten
• Collet & Collet Body
• 7/16 in. (11.1 mm) Alumina Nozzle
• Long Back Cap
• Gas Regulator with Hose
• Foot Amptrol (K870)
| MPN: | LINK2535-1 |
|---|---|
| UPC: | 015082669212 |
| Processes | Stick, TIG |
| Designed For | Automotive/Motorsports, Vocational Schools, Home/Shop, General Fabrication |
| Amperage | 5-230 Amps AC 5-230 Amps DC Max. OCV: 75V |
| Input Voltage | 208/230/1/60 |
| Input Phase | 460/575/1/60 |
| Input Hz | 60 |
| Input Phase | AC/DC |
| Rated Output | 5-230 Amps AC 5-230 Amps DC Max. OCV: 75V |
| Max Open Circuit Voltage | 5-230 Amps AC 5-230 Amps DC Max. OCV: 75V |
| Weld Output | 110A/60% |
| Weight | 212 (96) |
| Warranty | 2-Year Extended Warranty - Precision TIG 225 |
