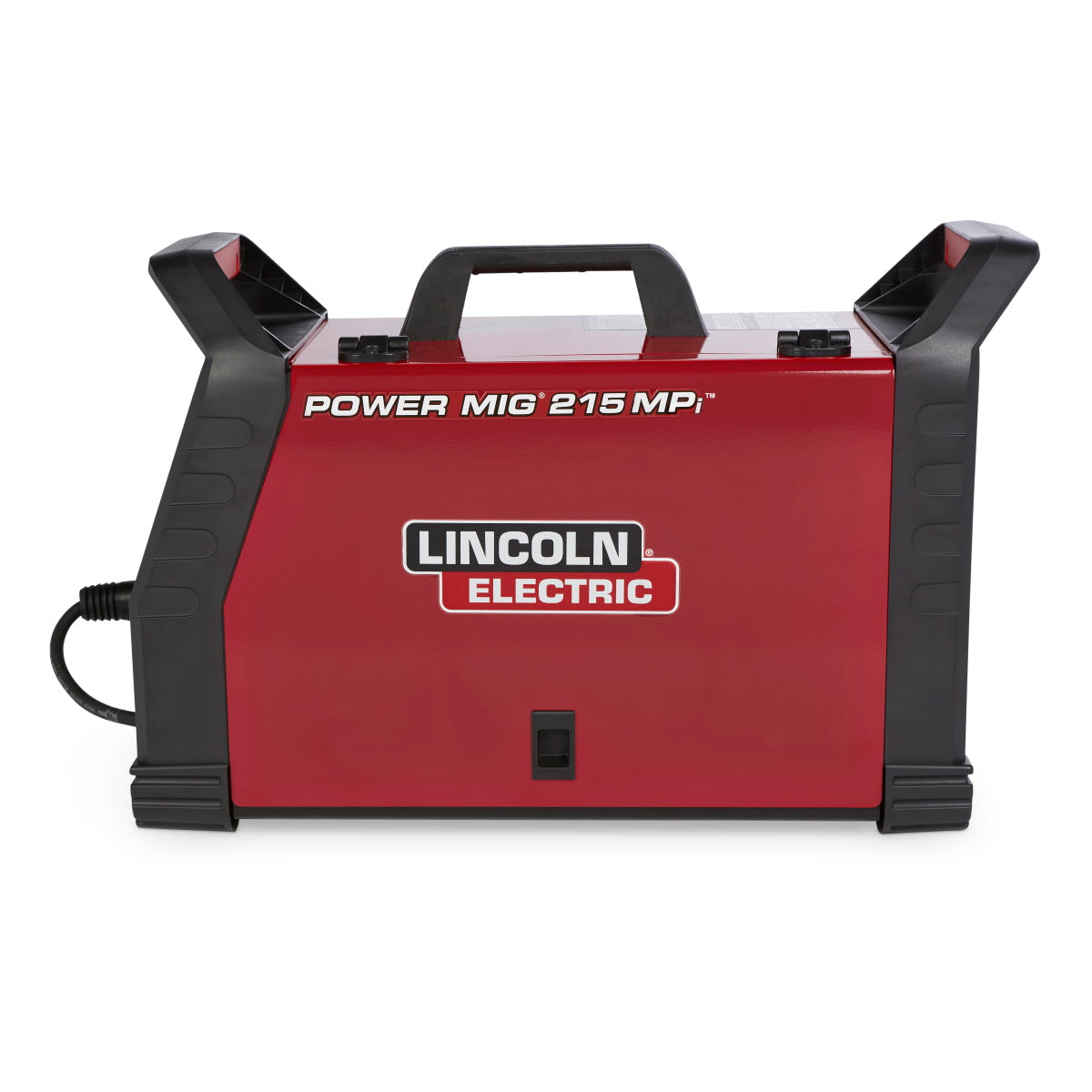

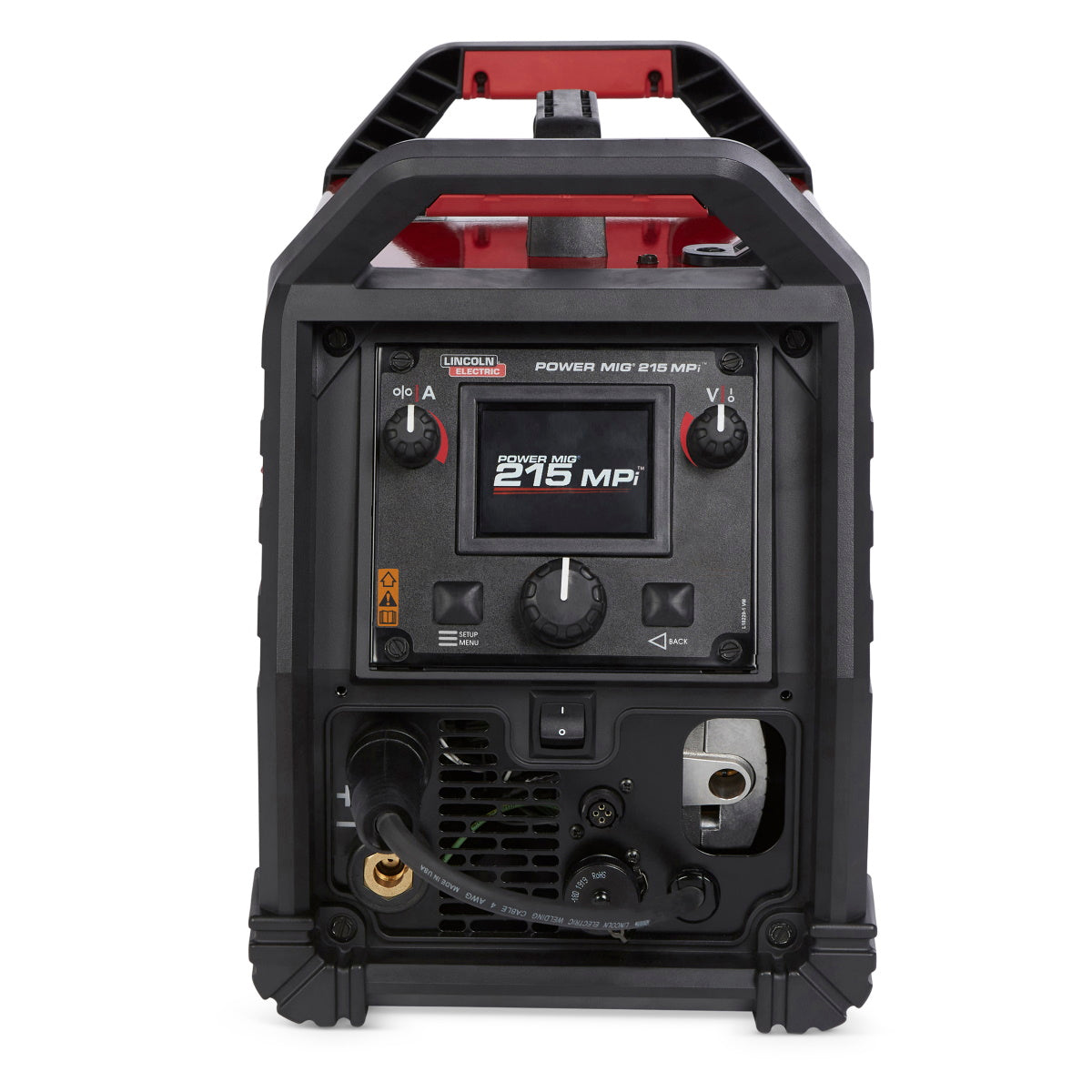

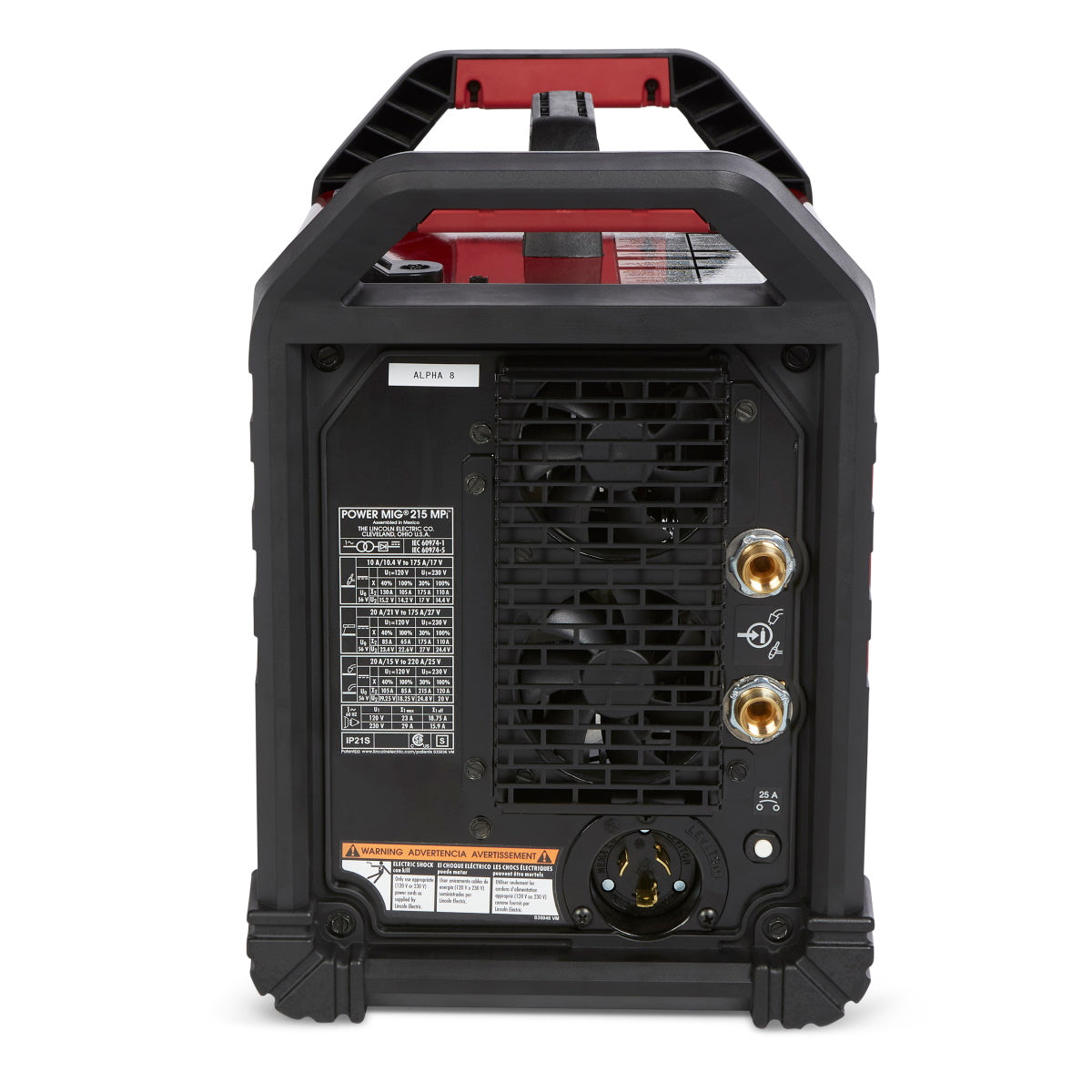

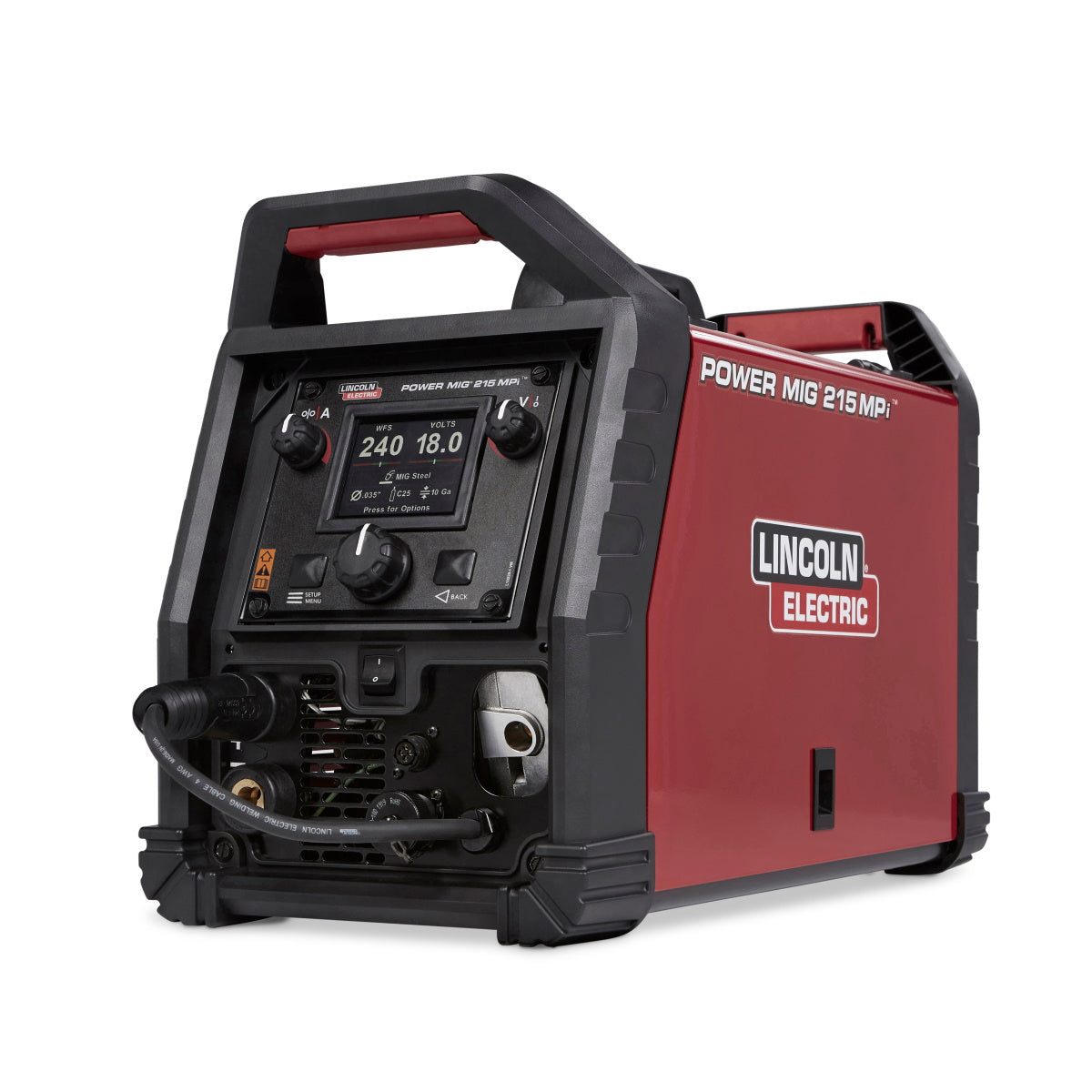

Lincoln Power MIG 215 MPi Multi Process Welder - TIG One Pak (K4878-1)
Download Product Spec Sheet
The Lincoln Power MIG 215 MPI Multi Process Welder is designed for the hobbyist and contractor alike who wants to do MIG, Stick, TIG and flux-core welding. Thanks to digital controls and a color display, setup and operation are a breeze while the all-metal wire drive and rugged construction make it rugged and ready for any project you can throw at it. Ideal for the welding novice, the 215 MPI has plenty of room to grow when you're skills are ready to make the jump to more advanced projects.
220 amps of output gives you the power to take on the biggest projects; up to 3/8 in. (10 mm) material with MIG, and for even thicker materials, use 5/32 in. Stick electrodes. Dual input voltages means you can plug it in anywhere, and at 48 lbs. you can take it everywhere. The digital controls and color display screen make setup and operation intuitive and easy.
Please note: This machine is TIG capable, but since it is DC only, you cannot TIG weld aluminum. You would need to purchase the K3269-1 spoolgun for welding aluminum.
Key Features:
• Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Built in TIG Solenoid and Foot Pedal Adapter is designed to accept a TIG torch, no install required.

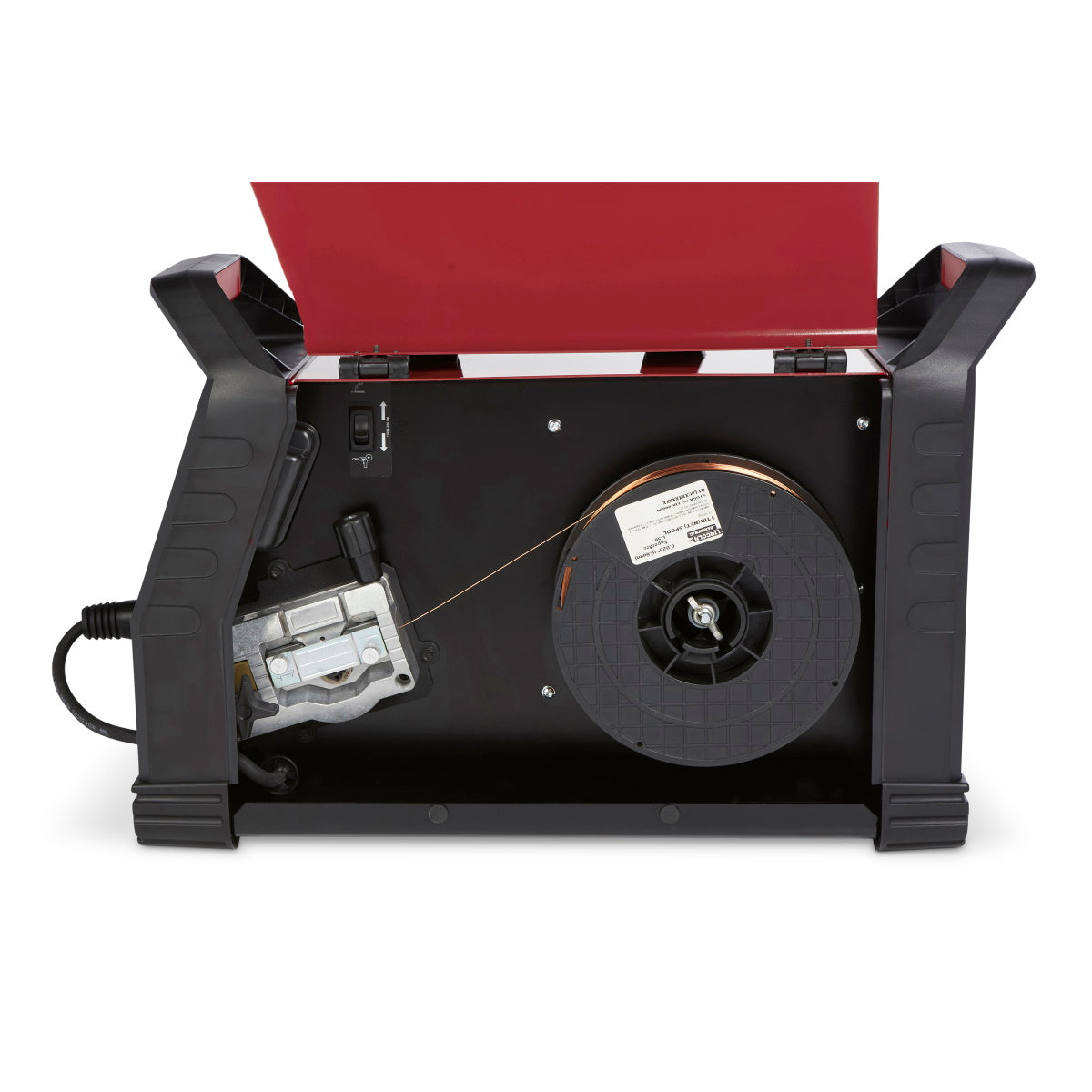

• Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
• Ready.Set.Weld Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
• ArcFX Technology - Provides instant visual feedback on how settings affect the weld outcome.
• Memory Capability - Easily recall saved settings to get welding faster.
• Extremely portable - Only 40 lb.

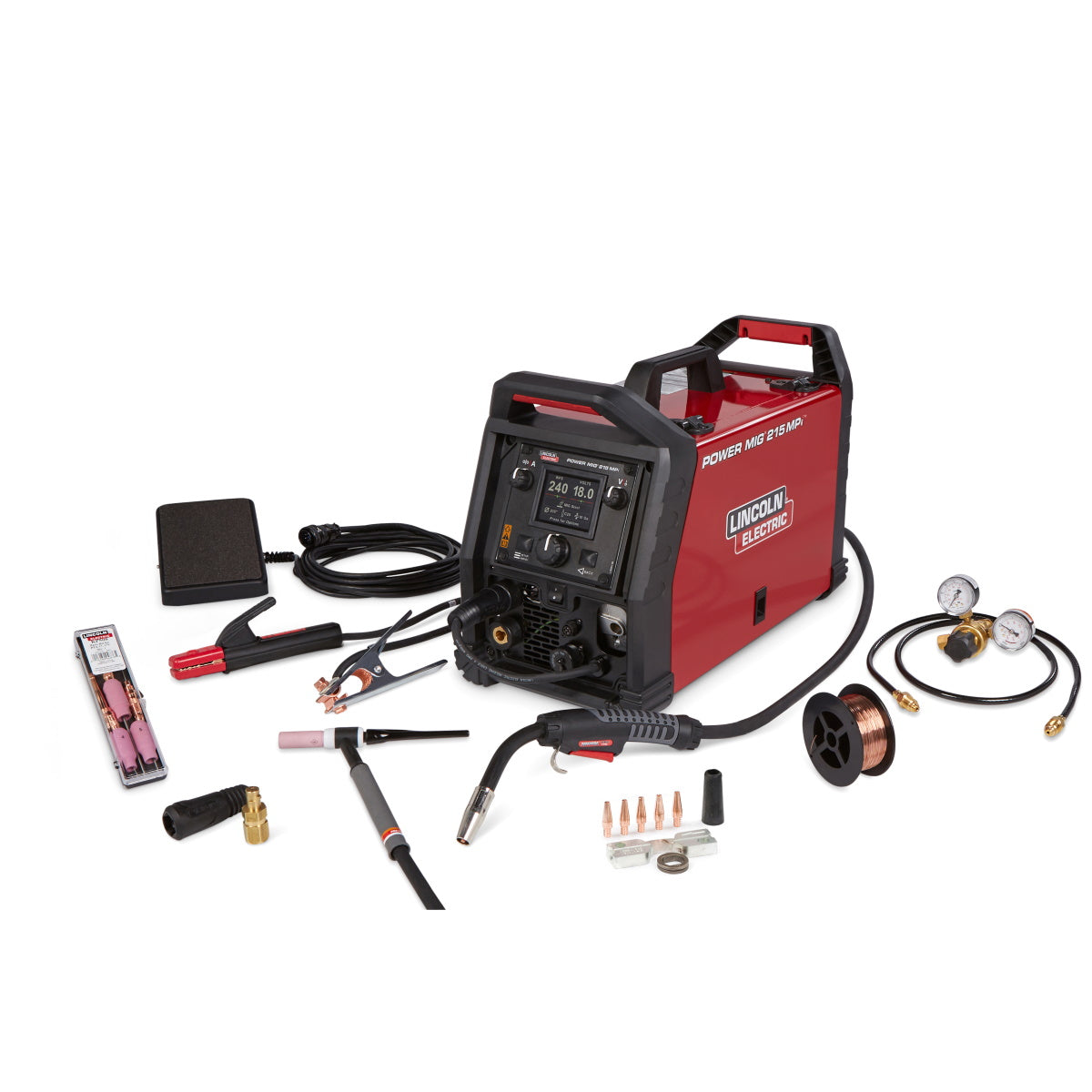

Includes:
• Foot Control (K870)
• 12.5 Ft 17 Series Air Cooled TIG Torch (K1782-1)
• Twist Mate Tig Torch Adapter (K1622-1)
• Parts Kit for Tig Torch (KP508)
• Dual voltage Input Cables - 120V or 230V
• Work Cable and Clamp
• Electrode Holder and Lead Assembly
• Adjustable Gas Regulator and Hose
• Gun Cable Liner (pre-installed gun)
• Spindle Adapter
• Sample 2 lb Spool of SuperArc L-56 Mild Steel MIG Wire
• .025-.030 in and .035 inch Drive Rolls
• .030 - .045 Knurled Drive Rolls
• .025 - .035 and .045 inch Wire Guides
• Replacement Screen Shield
220 amps of output gives you the power to take on the biggest projects; up to 3/8 in. (10 mm) material with MIG, and for even thicker materials, use 5/32 in. Stick electrodes. Dual input voltages means you can plug it in anywhere, and at 48 lbs. you can take it everywhere. The digital controls and color display screen make setup and operation intuitive and easy.
Please note: This machine is TIG capable, but since it is DC only, you cannot TIG weld aluminum. You would need to purchase the K3269-1 spoolgun for welding aluminum.
Key Features:
• Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Built in TIG Solenoid and Foot Pedal Adapter is designed to accept a TIG torch, no install required.
• Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
• Ready.Set.Weld Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
• ArcFX Technology - Provides instant visual feedback on how settings affect the weld outcome.
• Memory Capability - Easily recall saved settings to get welding faster.
• Extremely portable - Only 40 lb.
Includes:
• Foot Control (K870)
• 12.5 Ft 17 Series Air Cooled TIG Torch (K1782-1)
• Twist Mate Tig Torch Adapter (K1622-1)
• Parts Kit for Tig Torch (KP508)
• Dual voltage Input Cables - 120V or 230V
• Work Cable and Clamp
• Electrode Holder and Lead Assembly
• Adjustable Gas Regulator and Hose
• Gun Cable Liner (pre-installed gun)
• Spindle Adapter
• Sample 2 lb Spool of SuperArc L-56 Mild Steel MIG Wire
• .025-.030 in and .035 inch Drive Rolls
• .030 - .045 Knurled Drive Rolls
• .025 - .035 and .045 inch Wire Guides
• Replacement Screen Shield
| MPN: | LINK4876-1_K870_K1782-1_K1622-1_KP508 |
|---|---|
| UPC: | 015082962658 |
| Processes | MIG, Flux-Cored, DC Stick, DC TIG |
| Designed For | Metal Fabrication, Maintenance and Repair, Autobody/Farm, Light Industrial |
| Amperage | 215A/24.8V/30% |
| Input Voltage | 120VAC: eff 15A max 22A 230VAC: eff 15.9A max 29A |
| Input Phase | Single |
| Input Phase | DC |
| Wire Feed Speed | 50-500 ipm (1.3-12.7 m/min) |
| Weight | 48 (21.8) |
