Hypertherm Powermax 45 SYNC Plasma Cutter w/CPC 20ft Hand Torch (088562)
Lead Time: 1-2 Weeks
Download Product Spec Sheet
The Powermax45 SYNC is the most versatile system available to gouge, cut, and mark, and now comes with the single piece consumable cartridge. This lightweight (31lbs) plasma cutter operates on 200-240 volts and has a recommended 5/8" cut capacity.
Featuring automated system process set-up via advanced RFID-enabled SmartSYNC torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax45 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management. Sync systems contain an end-of-life consumable detection on the torch and the power source, letting the user know when to properly change the cartridge. The cartridge also retains its end-of-life status so it can not be re-used improperly.
This particular model includes a CPC port for CNC hook-up. If you don't need the CNC port, you would need part number 088560.
Smart Sync Torch Features
Internal Cap Sensor - confirms the cartridge is installed correctly.
Cartridge Reader - reads information on the RFID chip and relays it to the power source.
LED - visual indicators on the handle show system ready state.
7-Step Amperage LED - allows user to select one of seven preset values.
Torch Lock Switch - allows consumable changes without turning off the power supply.
Safety Trigger - protects the operator from accidental activation.
Fiber Reinforced Handle - ensures long life operation and protection if dropped.
Spring Strain Relief - protects the torch lead connection to the torch handle.
Abrasion Resistant Torch Lead - protects the lead when being dragged over rough surfaces.
End-of-Life detection is disabled when one of the following occur
• A Fine Cut hand cutting cartridge is installed
• The amperage is set below 40 amps for any type of cartridge
• The output amperage is set below 55 amps and no communication between the cartridge and system
Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 31 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/33A
• Output Current: 20-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

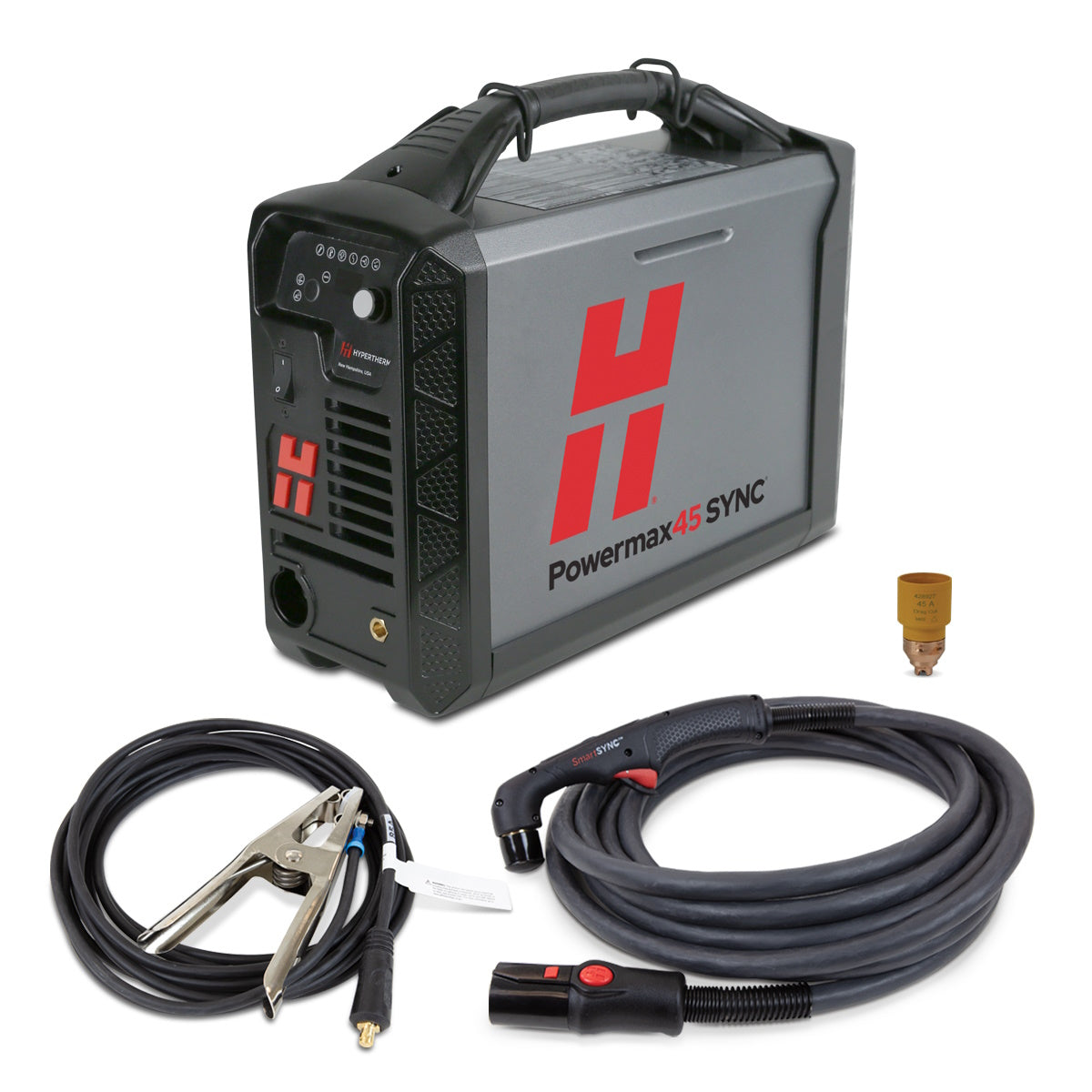

Includes

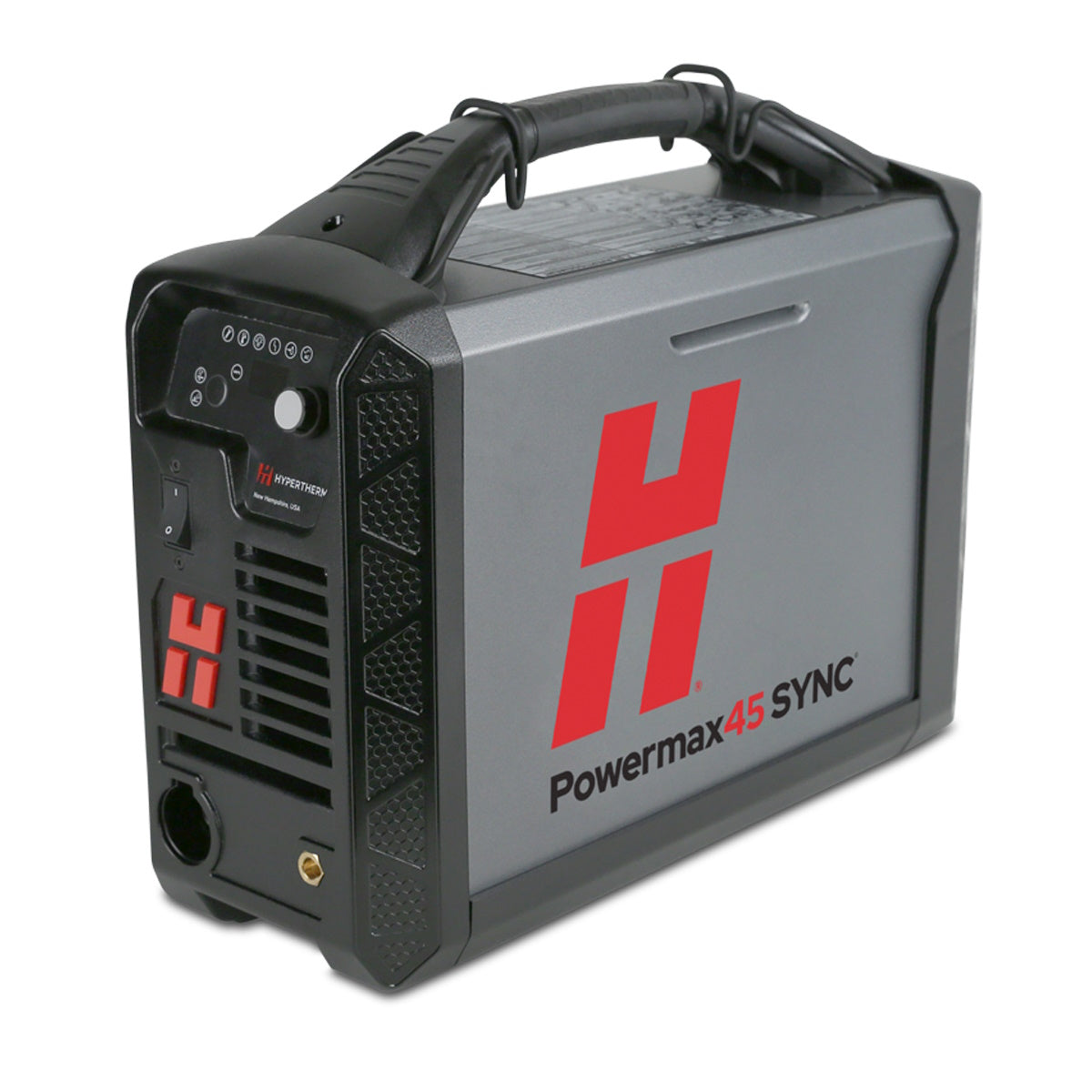

• 45 SYNC Power Supply
• Smart SYNC hand torch with 20' lead & 20' work clamp
• (1) 45A SYNC Hand Cutting Cartridge
• Operator & Safety Manuals
| MPN: | HYP088562 |
|---|---|
| UPC: | 00662310523961 |
| Designed For | Fabrication Shops HVAC Maintenance |
| Amperage | 45 Amps |
| Material Thickness | 5/8" |
| Weldable Metals | Steel Stainless Aluminum |
| Input Voltage | 220 230 240 |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Rated Output | 50% @ 45A |
| Portability | 31 lbs |
