Hypertherm Powermax 125 w/CPC 50ft Mech and 25ft 85° Hand Torch Pkg (059541)

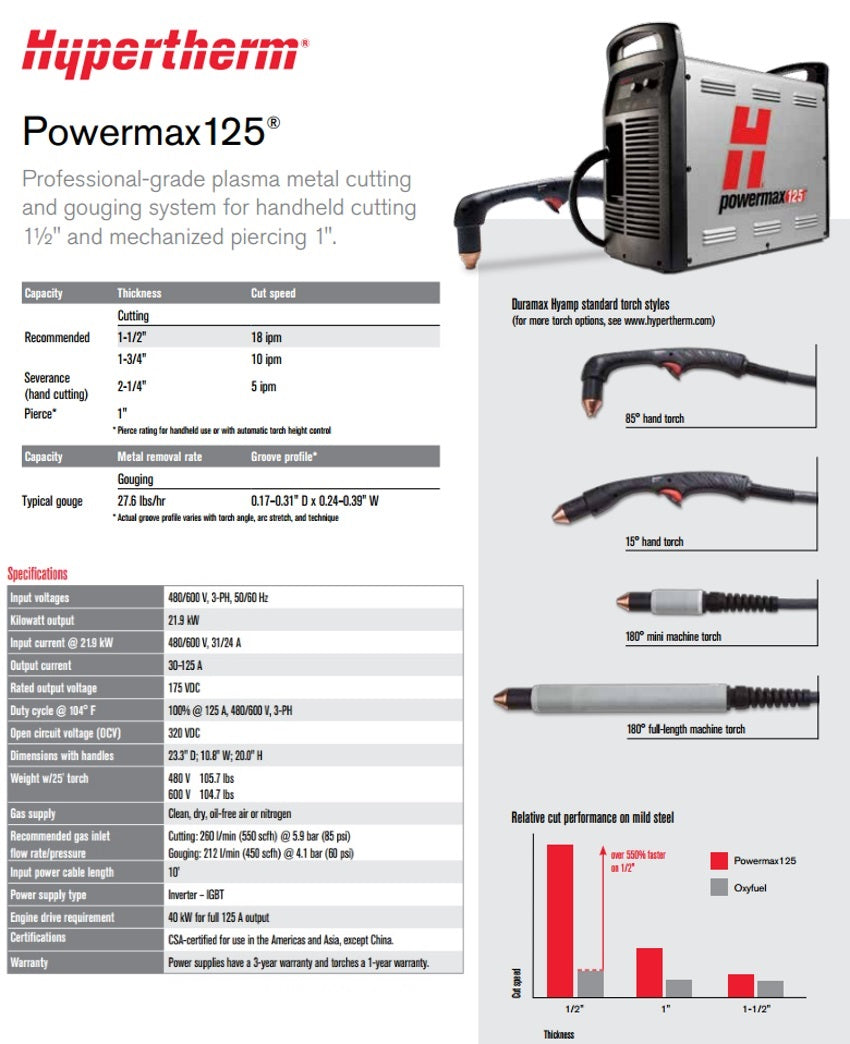

Download Product Spec Sheet
The Hypertherm Powermax 125 is the absolute best 1-1/2 inch plasma available. With a 100 percent duty cycle, this unit tackles the toughest cut and gouging jobs with ease and precision. The Powermax 125 features "smart sense" technology where the unit automatically adjusts gas pressure so you never need to worry about manual changes. This unit comes equipped with a 50 foot 180 degree mechanized torch as well as a 25 foot 85 degree hand torch.
This particular model includes CPC port, voltage divider, and on/off remote pendant.
Key Features
• Smart sense technology
• Boost conditioner technology
• Spring start technology
• Drag cut at full output with reduced dross buildup
• Duramax torches are designed for high-impact and heat resistance
Quick Specs
• Rated cut - 1-1/2" | Sever cut - 2-1/4"
• Operating voltage - 480-600V 3-phase Only
• Output current - 30-125A
• Duty cycle - 100% @ 125A
• Dims - 23.3" L x 10.8" W x 20" H
• Weight with 25' torch - 105 lbs
• Required pressure - 550 scfh @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 40kW for full 125A output | 15kW for limited 60A output
Includes
• Powermax 125
• 50' 180° Duramax HyAmp Mech torch
• 25' 85° Duramax HyAmp Hand torch
• 50' Ground lead
• Mechanized consumables kit (851475, No Ohmic Clip Included)
• 25' On/Off Remote Hand Pendant
• Air Filter (128647)
• User manual
Please allow 5-7 business days to ship.
This particular model includes CPC port, voltage divider, and on/off remote pendant.
Key Features
• Smart sense technology
• Boost conditioner technology
• Spring start technology
• Drag cut at full output with reduced dross buildup
• Duramax torches are designed for high-impact and heat resistance
Quick Specs
• Rated cut - 1-1/2" | Sever cut - 2-1/4"
• Operating voltage - 480-600V 3-phase Only
• Output current - 30-125A
• Duty cycle - 100% @ 125A
• Dims - 23.3" L x 10.8" W x 20" H
• Weight with 25' torch - 105 lbs
• Required pressure - 550 scfh @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 40kW for full 125A output | 15kW for limited 60A output
Includes
• Powermax 125
• 50' 180° Duramax HyAmp Mech torch
• 25' 85° Duramax HyAmp Hand torch
• 50' Ground lead
• Mechanized consumables kit (851475, No Ohmic Clip Included)
• 25' On/Off Remote Hand Pendant
• Air Filter (128647)
• User manual
Please allow 5-7 business days to ship.
| MPN: | HYP059541-851475-128647 |
|---|---|
| UPC: | 662310342968 |
| Input Phase | 480/600 V, 3-PH, 50/60 Hz |
| Rated Output | 30–125 A |
| Weight | 47.9 kg (105.7 lbs.) |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. |
