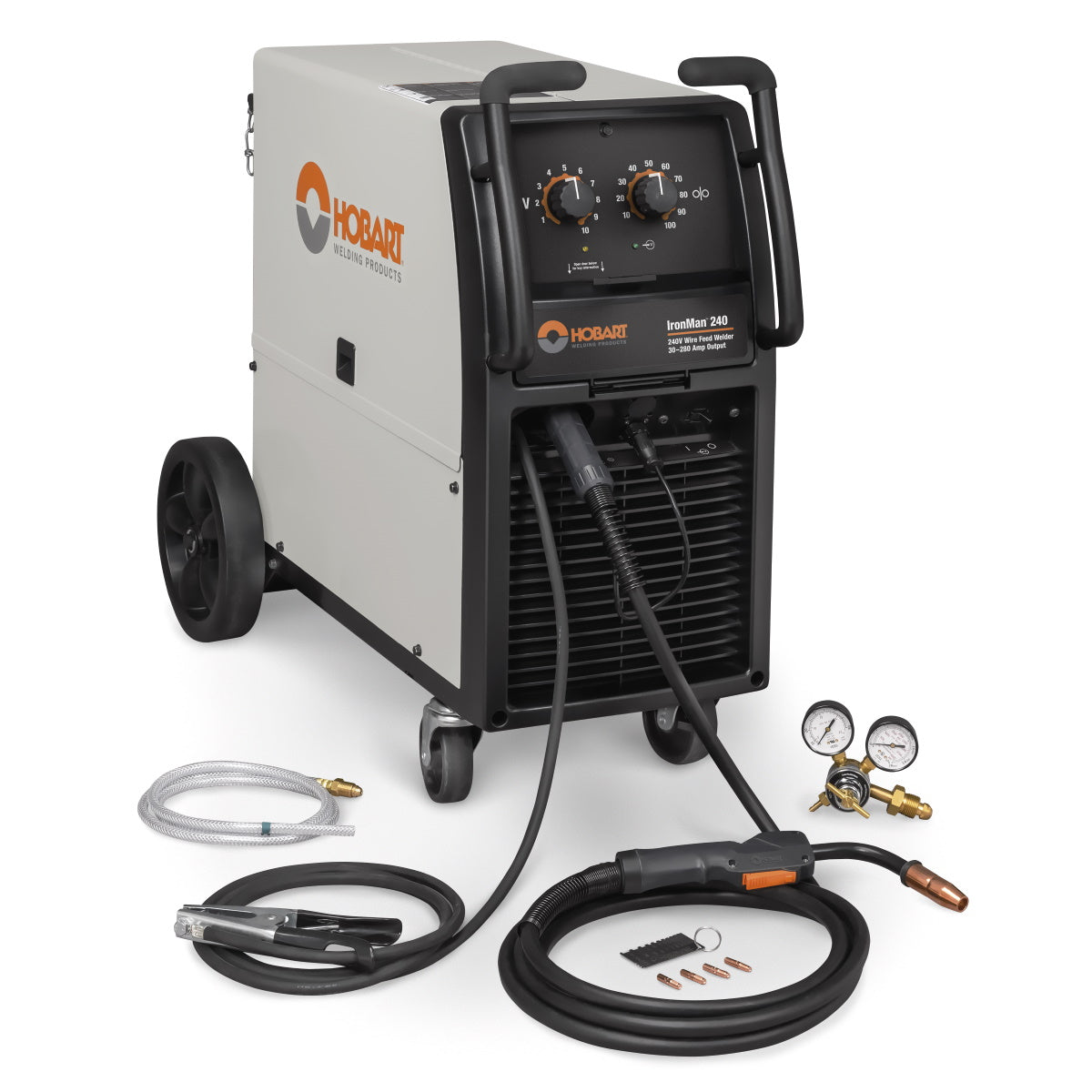

Hobart IronMan 240 MIG Wire Welder (500574)
Download Product Spec Sheet
The Hobart IronMan 240 MIG Wire Welder (500574) is a total redesign of the full-size MIG platform, outperforming the competition on arc quality, voltage control, duty cycle and value. It delivers 30-280 amps of pure power in a heavy duty cabinet. The arc of the new IronMan 240 is optimized to deliver a flawless weld, making spatter and post-weld cleanup almost non-existent. The IronMan 240 easily runs aluminum, just add the optional Hobart SpoolRunner 200 spool gun (770967) and you’re ready to weld aluminum from 18 gauge to 1/2 inch.
Highlights:
• Welds 24 gauge up to 1/2 inch material in a single pass
• Excellent aluminum welding with optional Hobart SpoolRunner 200 spool gun, also provides extended reach with other wires
• Infinite voltage - offers easier fine-tuning control
• Infinite wire feed speed control for precise adjustment of penetration and weld bead shape
• Comes complete with 200 amp gun and built-in running gear/cylinder rack
• Unique spool hub makes changing from 2, 10, 33 and 45 lb. wires spools a snap with a tool-less brake tension knob and automatic wire alignment
• Built-in thermal overload protects the unit
• Reversible drive rolls: two grooves for two wire sizes on one drive roll. Decreases spare parts and changeover time
• Hinged door for easy access to wire drive system for spool and drive roll changes
• Aluminum wire drive system delivers 50 – 700 IPM wire feed speed
Comes Complete With:
• 15 ft. (4.6 m), 200 amp MIG gun
• Regulator/flowmeter
• 5 ft. (1.5 m) gas hose with fitting
• Primary input cable with plug
• 10 ft. (3 m) work cable with clamp
• .030/.035 in. dual groove drive roll
• Extra contact tips
• Built-in running gear/cylinder rack
• Weld set-up and parts information chart
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
Highlights:
• Welds 24 gauge up to 1/2 inch material in a single pass
• Excellent aluminum welding with optional Hobart SpoolRunner 200 spool gun, also provides extended reach with other wires
• Infinite voltage - offers easier fine-tuning control
• Infinite wire feed speed control for precise adjustment of penetration and weld bead shape
• Comes complete with 200 amp gun and built-in running gear/cylinder rack
• Unique spool hub makes changing from 2, 10, 33 and 45 lb. wires spools a snap with a tool-less brake tension knob and automatic wire alignment
• Built-in thermal overload protects the unit
• Reversible drive rolls: two grooves for two wire sizes on one drive roll. Decreases spare parts and changeover time
• Hinged door for easy access to wire drive system for spool and drive roll changes
• Aluminum wire drive system delivers 50 – 700 IPM wire feed speed
Comes Complete With:
• 15 ft. (4.6 m), 200 amp MIG gun
• Regulator/flowmeter
• 5 ft. (1.5 m) gas hose with fitting
• Primary input cable with plug
• 10 ft. (3 m) work cable with clamp
• .030/.035 in. dual groove drive roll
• Extra contact tips
• Built-in running gear/cylinder rack
• Weld set-up and parts information chart
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
| MPN: | HOB500574 |
|---|---|
| Processes | Flux Cored (FCAW)MIG (GMAW) |
| Designed For | Racing Farm and Ranch Manufacturing |
| Amperage | 200 A @ 60% duty cycle |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 220/230/240 V |
| Wire Feed Speed | 50 IPM - 700 IPM |
| Weight | 186 lbs |
| Warranty | 3 Years |
MPN: HOB500574
