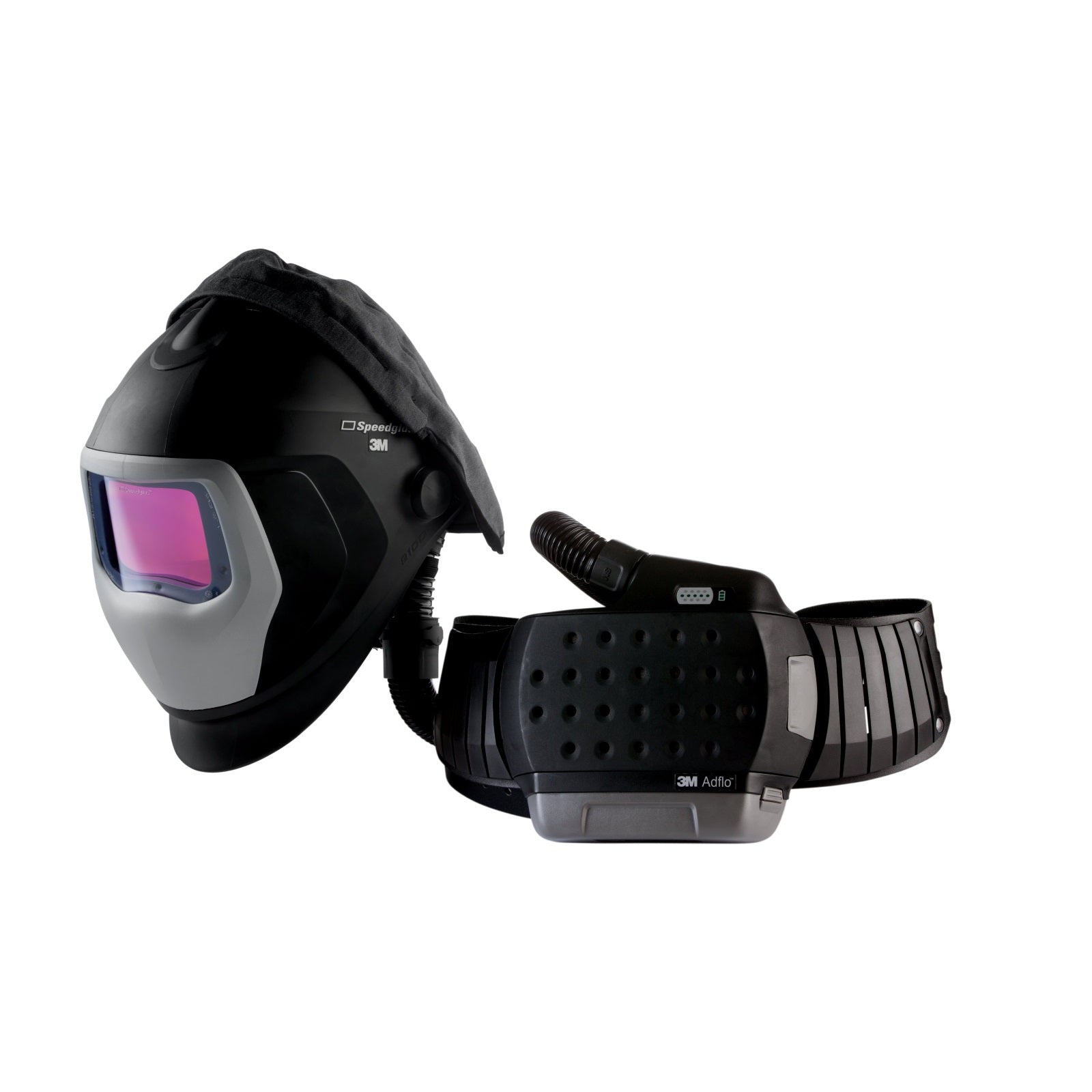

3M Adflo 9100-Air PAPR System with 9100XXi ADF (35-1101-30iSW)

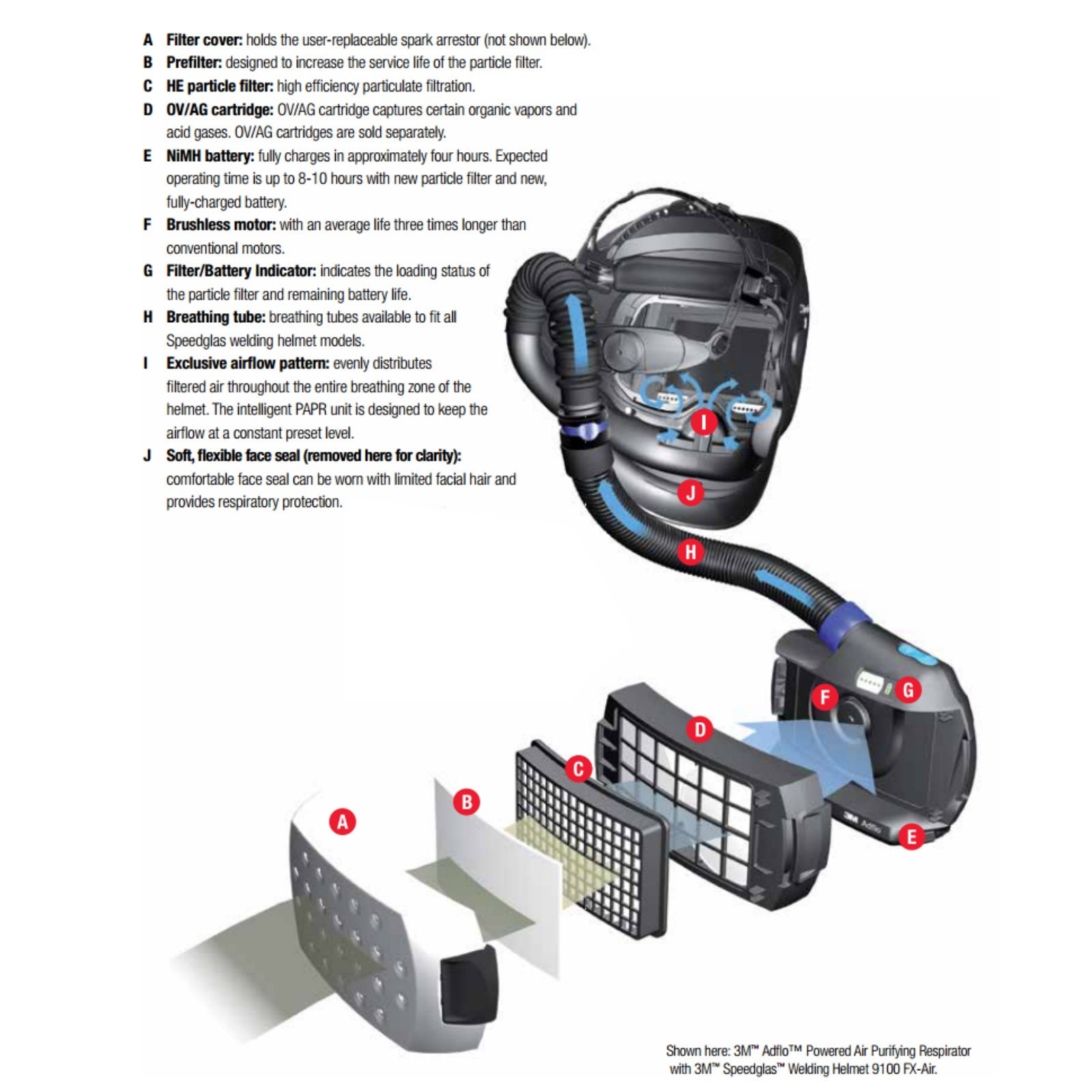

The 3M Adflo is a high efficiency particulate respiratory protection system for welders. Thanks to the improved optics, the 3M Speedglas ADF 9100XXi allows you to more readily recognize colors as compared to our other models. By using the Adflo PAPR, you get both increased protection and comfort. With the HE filter and OV/AG cartridge, the Adflo PAPR can help protect against both particles and certain gases — all in one system. And you can selectively replace either the particle filter or the OV/AG cartridge as needed: you don’t need to change the filter and cartridge at the same time. The Adflo PAPR is designed to provide airflow which is at a constant nominal rate of approximately 7 CFM (205 litres/minute), regardless of the battery’s charge or the particle loading of the filter. 3M helmets have a 2-year lens warranty.
These PAPR blower units will not work properly at elevations above 3,000 feet.

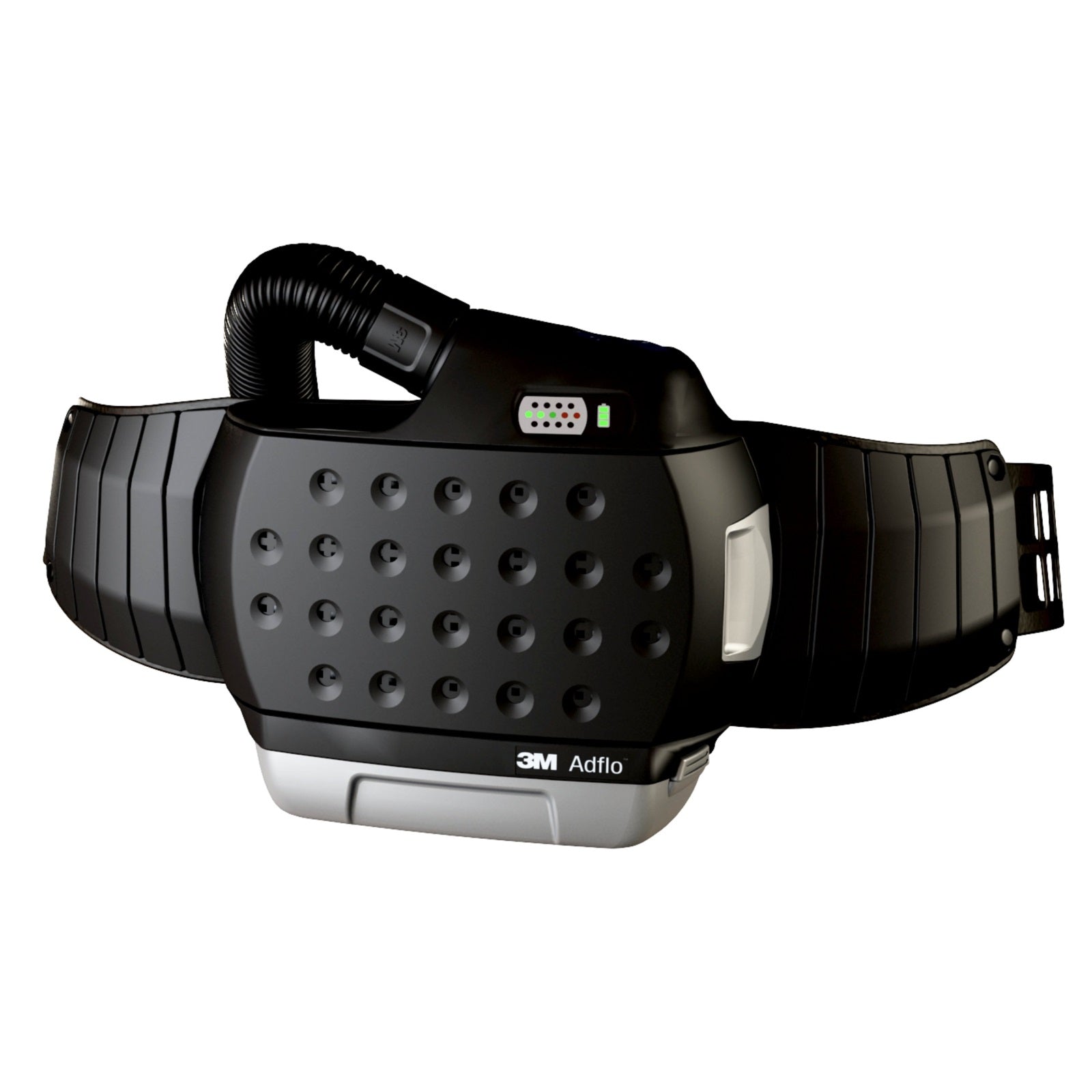

Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F

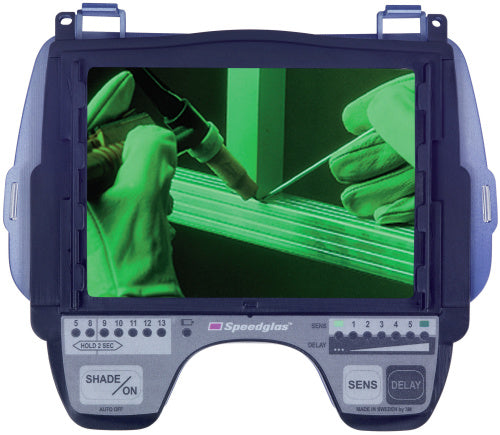

Speedglas 9100XXi Auto Darkening Lens Features
• Improved optics allow you to more readily recognize colors as compared to other Speedglas models
• Auto-on - the ADF turns on when the helmet is picked up
• Improved user interface that is easy to understand
• Silver Front Panel of 9100XXi houses external controls, enabling fast and easy access to the grinding and memory modes
• 2.8 inch x 4.2 inch viewing area (approx)
• Selectable Shades 5, 8-13 and Shade 3 light state
• Delay function to set the dark-to-light opening time Sensitivity of the arc detection can be adjusted

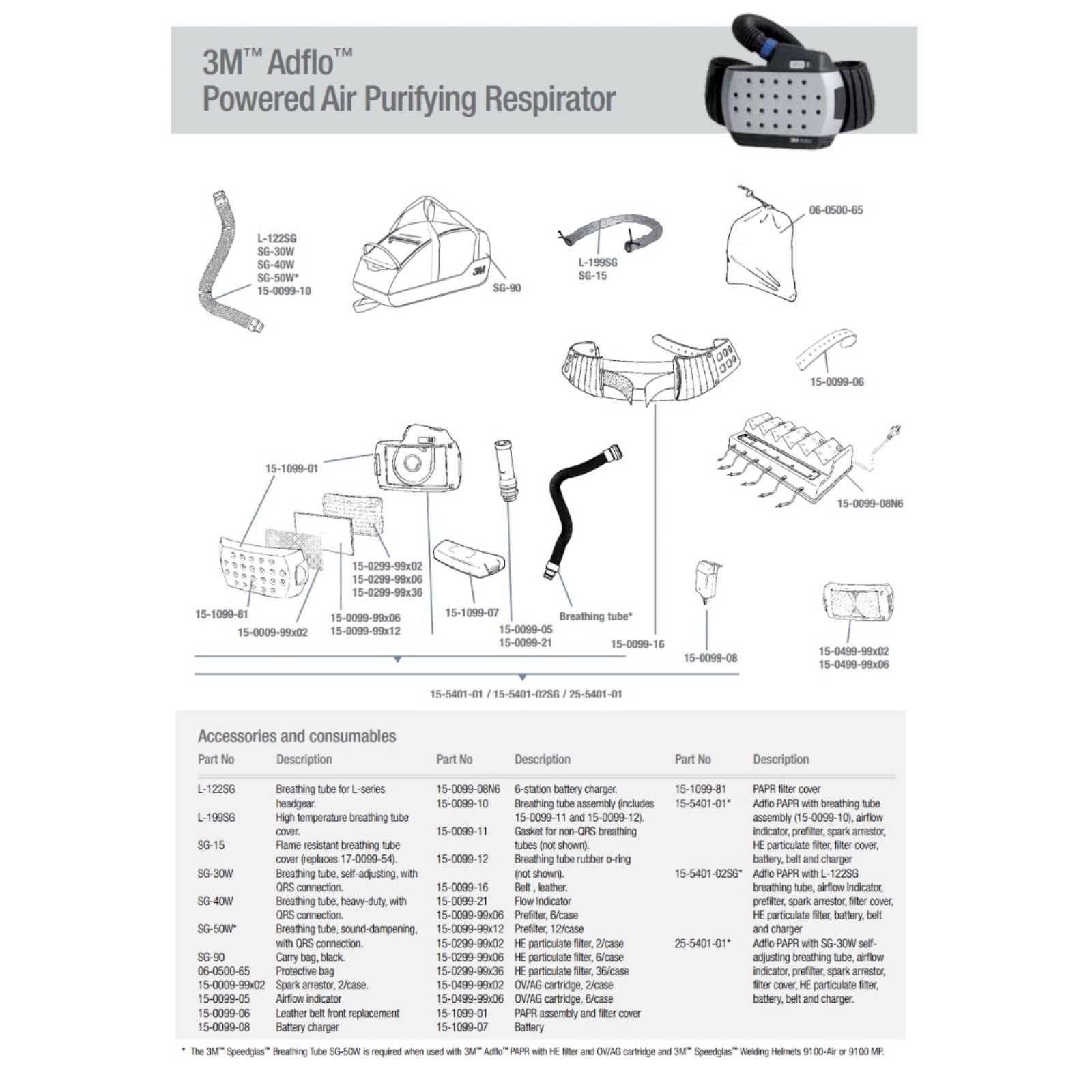

Comes complete with
• Speedglas 9100 welding helmet with 9100XXi auto darkening lens
• 3M Breathing Tube L-122SG
• Flow indicator
• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
These PAPR blower units will not work properly at elevations above 3,000 feet.
Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F
Speedglas 9100XXi Auto Darkening Lens Features
• Improved optics allow you to more readily recognize colors as compared to other Speedglas models
• Auto-on - the ADF turns on when the helmet is picked up
• Improved user interface that is easy to understand
• Silver Front Panel of 9100XXi houses external controls, enabling fast and easy access to the grinding and memory modes
• 2.8 inch x 4.2 inch viewing area (approx)
• Selectable Shades 5, 8-13 and Shade 3 light state
• Delay function to set the dark-to-light opening time Sensitivity of the arc detection can be adjusted
Comes complete with
• Speedglas 9100 welding helmet with 9100XXi auto darkening lens
• 3M Breathing Tube L-122SG
• Flow indicator
• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
| MPN: | HOR35-1101-30iSW |
|---|---|
| UPC: | 00051141564760 |
MPN: HOR35-1101-30iSW
UPC: 00051141564760
