Miller Filtair SWX-D Fume Extractor w/Telescoping Extraction Arm (951619)
Download Product Spec Sheet

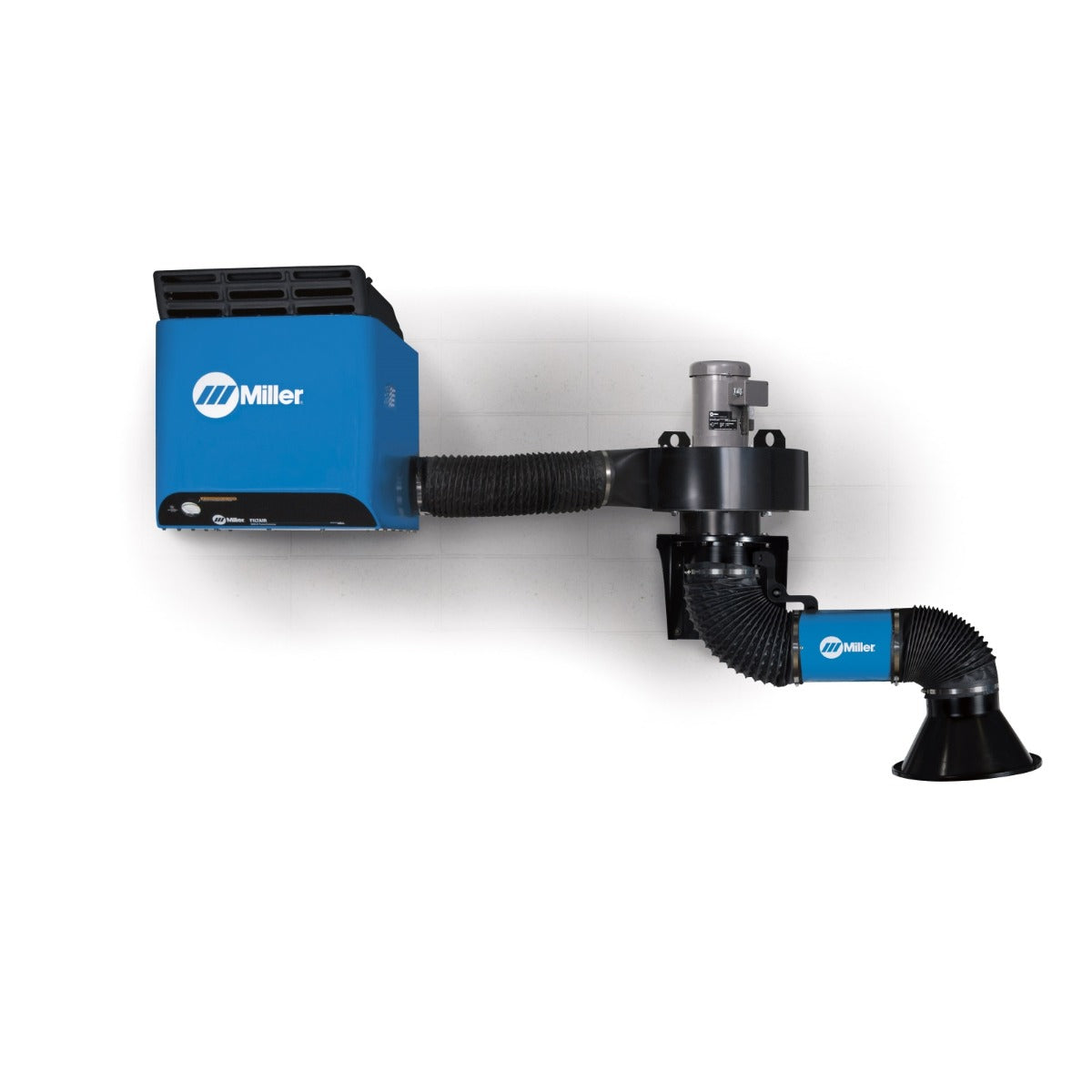

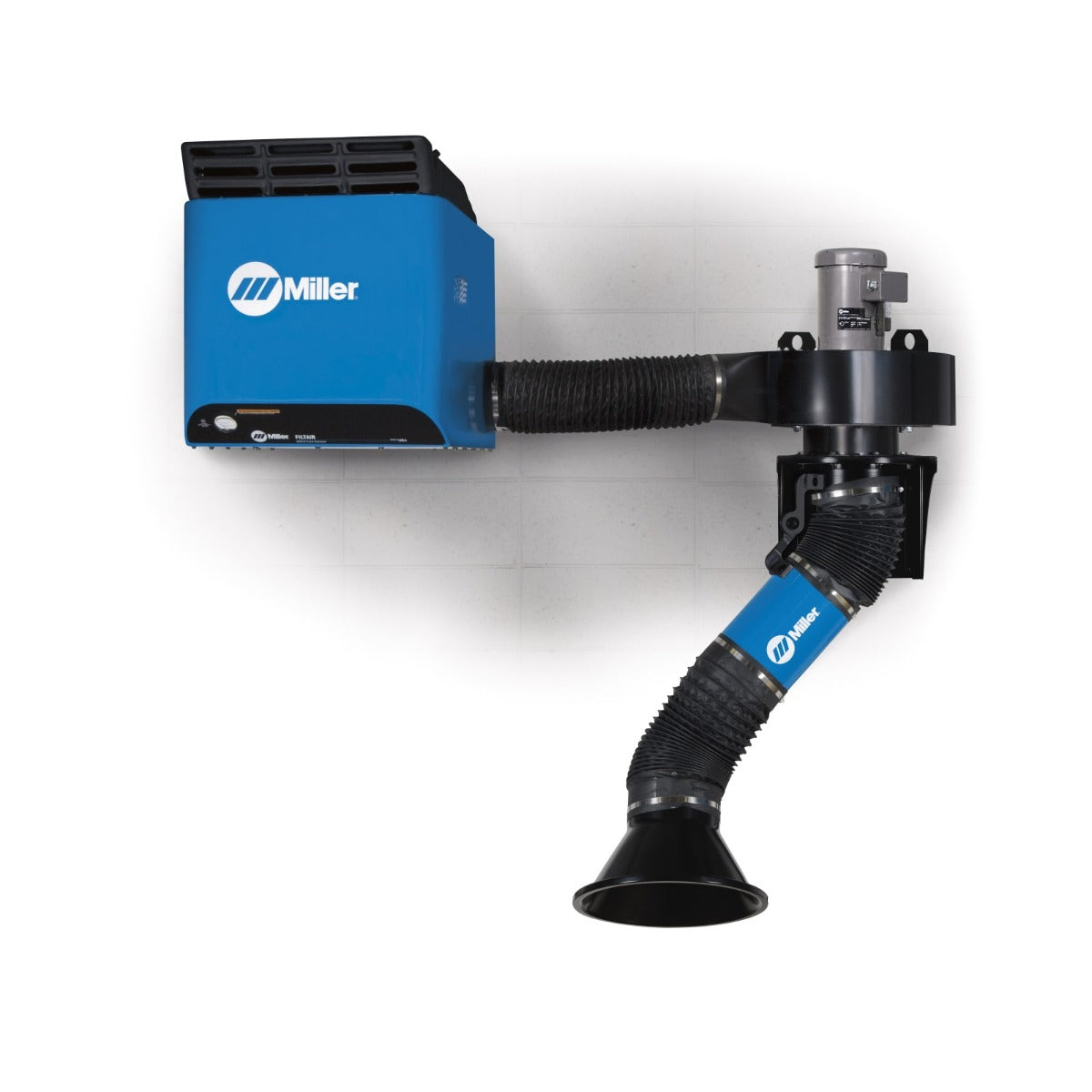

The Filtair SWX-D wall-mounted fume extractor comes with a powerful high-volume system and a MERV 15 high-efficiency filter which is ideal for fabrication shops, manufacturing, repair work and training centers. The SWX-S models include a self-cleaning filter, whereas the SWX-D models include a disposable filter. This particular model comes with a telescoping arm that reaches 3 to 4.5 feet.
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Filter Media: 490ft
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Dims: 29"H, 27.25" W, 33"D
• Extractor Arm Dims: 8-inch diameter
• Cabinet Weight: SWX-D: 130 lbs
Comes With:

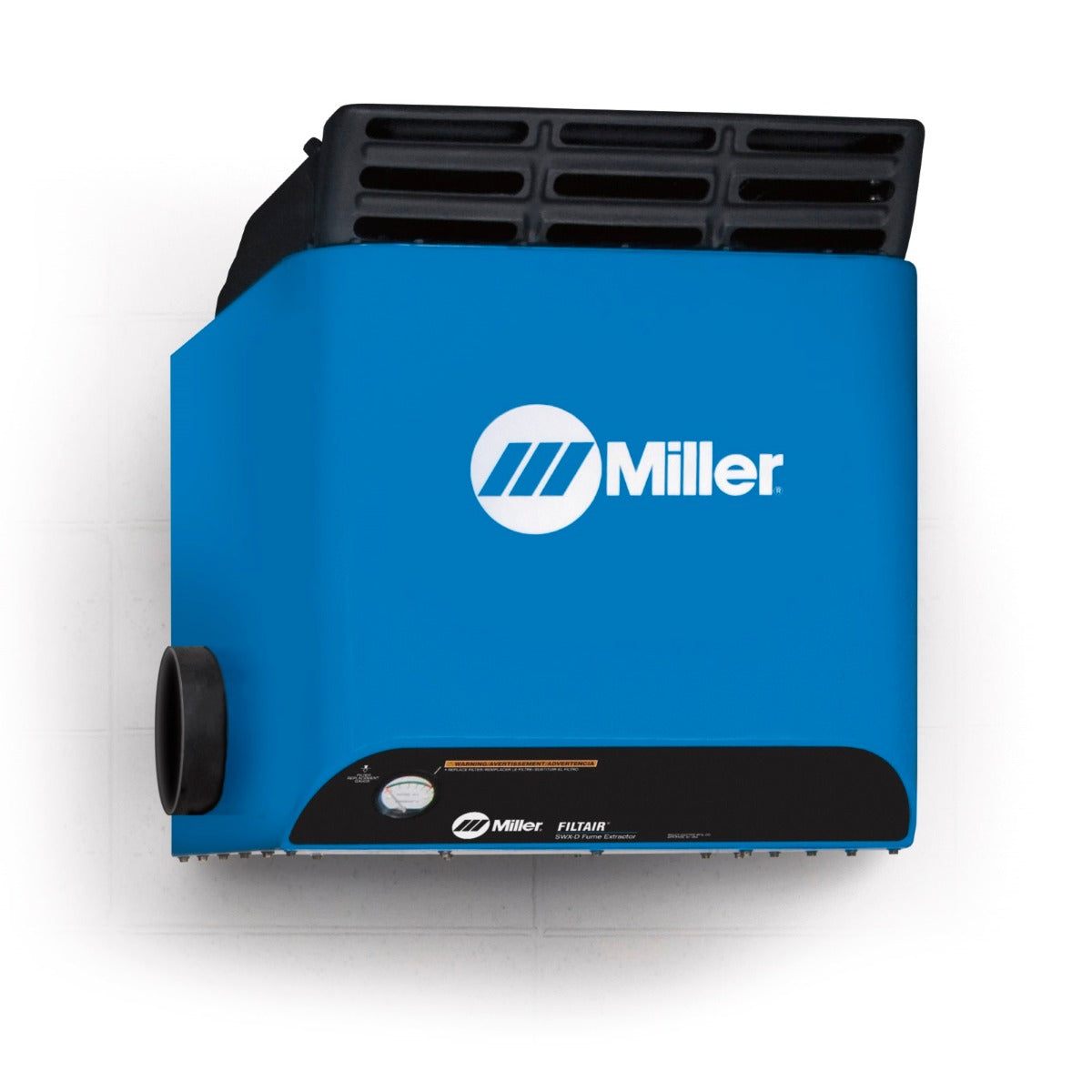

• 115V wall-mounted fume extractor (cabinet) (disposable filter)

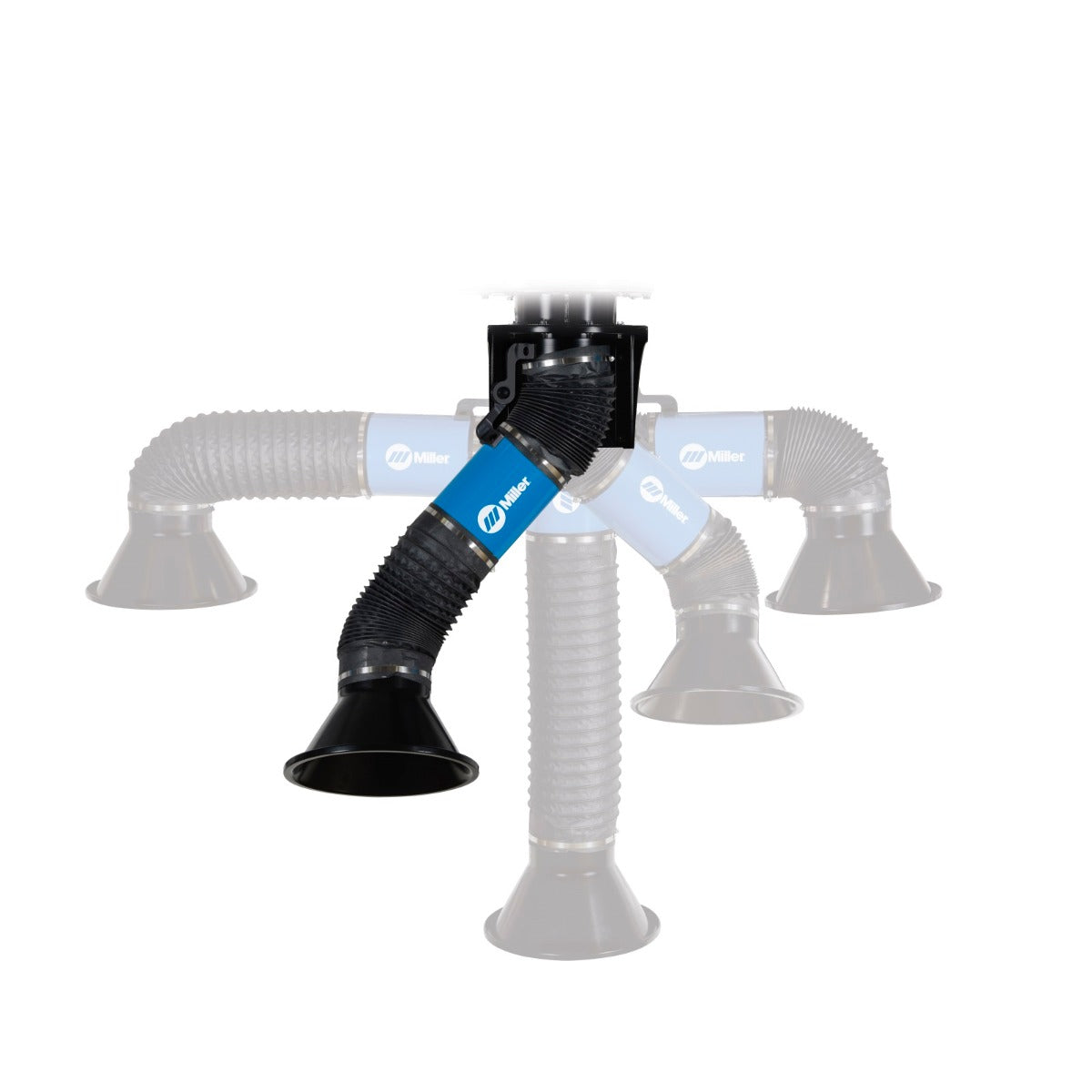

• 3-4.5 foot extraction arm (8-inch diameter)
• Mounting bracket for blower/arm
• FilTek XL Filter
• 115V Blower

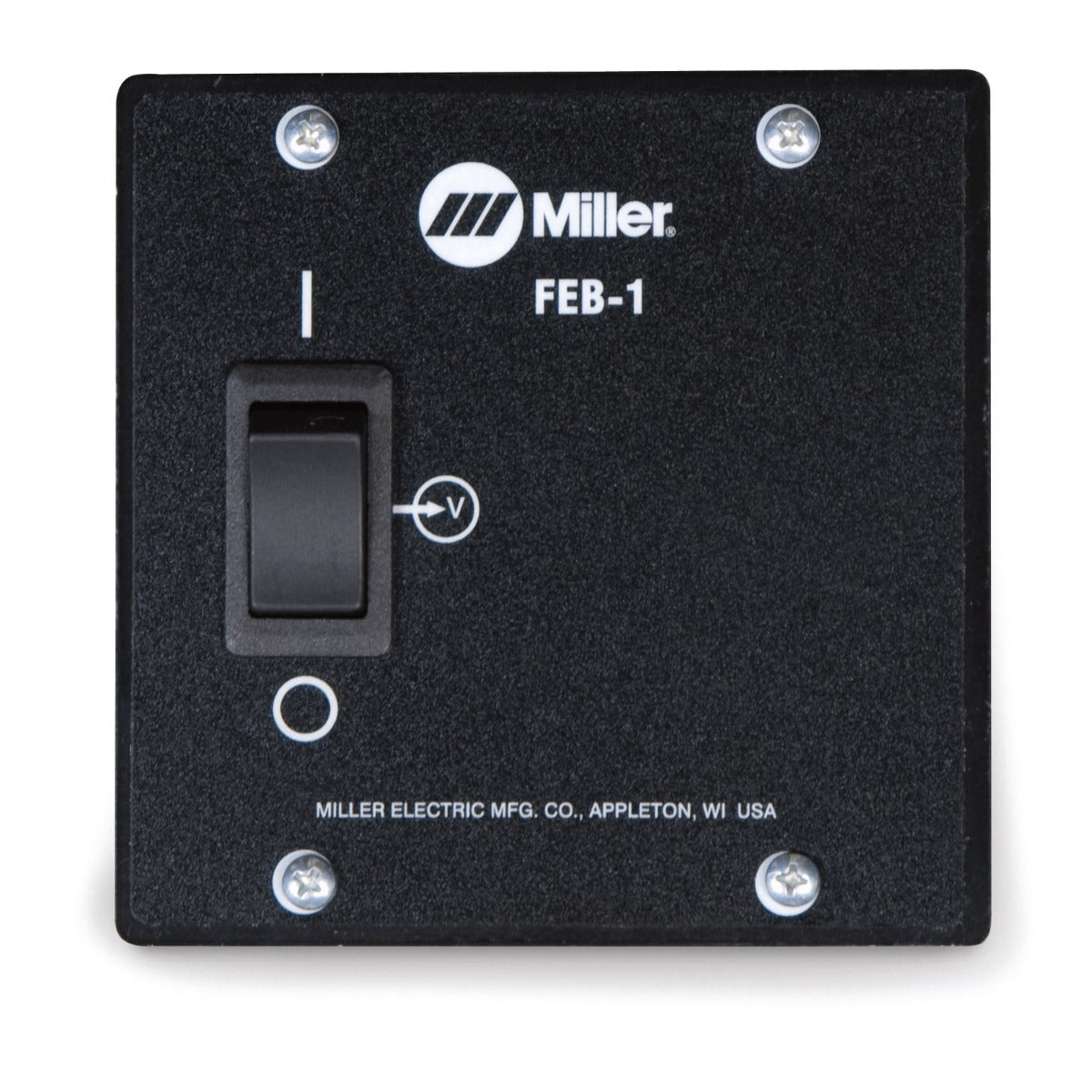

• 115V On/Off control box
• 115V Wiring Not Included
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Filter Media: 490ft
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Dims: 29"H, 27.25" W, 33"D
• Extractor Arm Dims: 8-inch diameter
• Cabinet Weight: SWX-D: 130 lbs
Comes With:
• 115V wall-mounted fume extractor (cabinet) (disposable filter)
• 3-4.5 foot extraction arm (8-inch diameter)
• Mounting bracket for blower/arm
• FilTek XL Filter
• 115V Blower
• 115V On/Off control box
• 115V Wiring Not Included
| MPN: | MIL951619 |
|---|---|
| UPC: | 715959616584 |
